Robustel GoRugged M1000 USB Quick Guide
Robustel GoRugged M1000 USB Quick Guide

Chapter 1. Interface Introduction

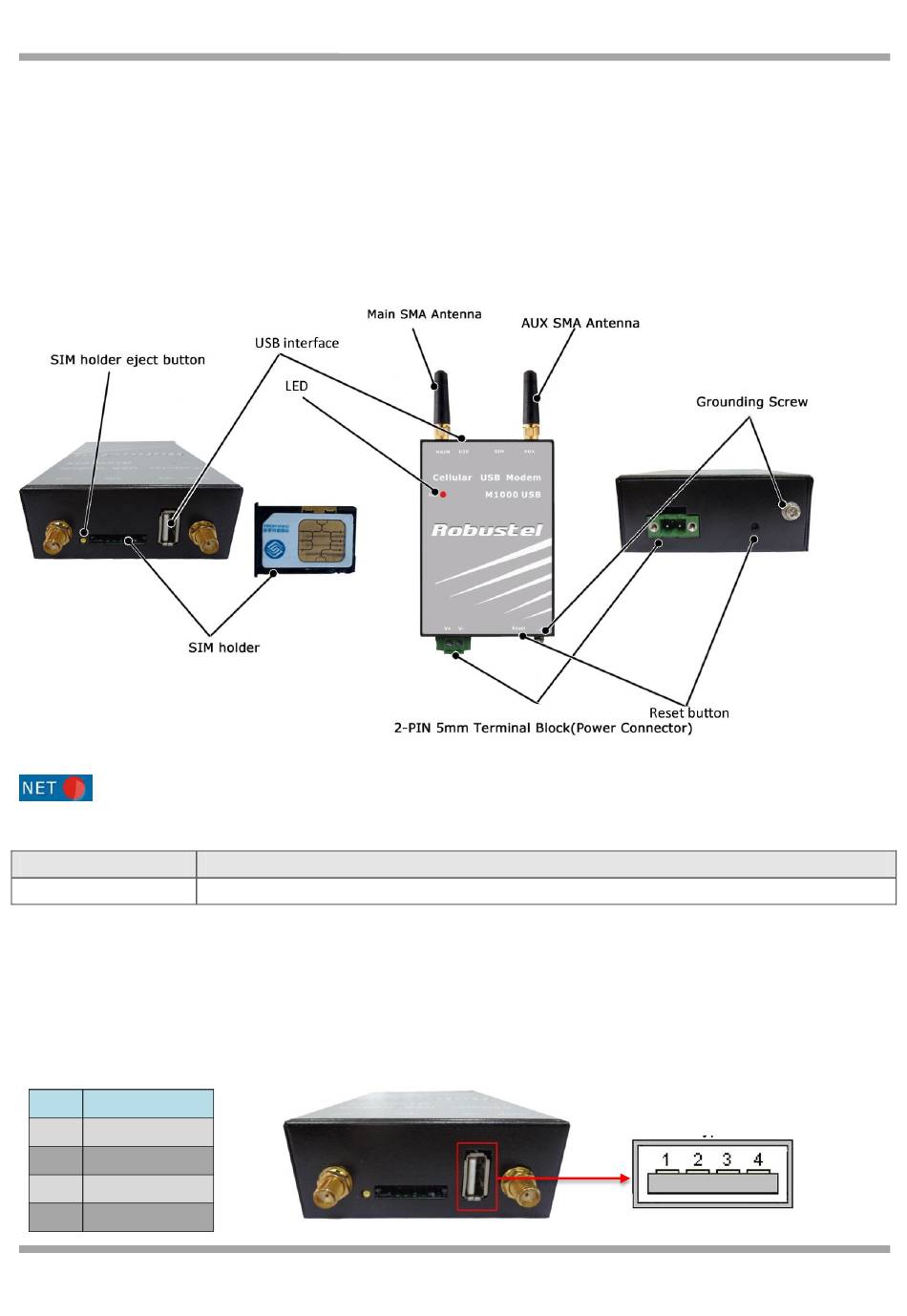

1.1 Overview

1.2 LED Indicators

After inserting the SIM card into the modem and power on, the LED indicator's status should be as follow when work
normally:
Name
NET
：
Note
Please refer to Robustel GoRugged M1000 USB User Guide to get more details about the LED indicators.

1.3 USB Interface

USB Cable connector (Type A Male to Type A Male)
USB 2.0 Connector
PIN
Description)
1
VCC
2
Data (D-)
3
Data (D+)
4
GND
RT_QG_M1000 USB _v.1.0.0
Function
Registered to the network: 75 ms on / 3 s off
25.01.2014
1 /7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GoRugged M1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Robustel GoRugged M1000

Summary of Contents for Robustel GoRugged M1000

  • Page 1 Registered to the network: 75 ms on / 3 s off ： Note Please refer to Robustel GoRugged M1000 USB User Guide to get more details about the LED indicators. 1.3 USB Interface USB Cable connector (Type A Male to Type A Male) USB 2.0 Connector...
  • Page 2 Robustel GoRugged M1000 USB Quick Guide 1.4 Grounding the Modem Grounding Screw Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices.
  • Page 3 Robustel GoRugged M1000 USB Quick Guide 2.2 Connect the External Antenna (SMA Type) Connect this to external antennas with SMA male connector. Make sure the antenna is for the correct frequency as your GSM operator with impedance of 50ohm, and also connector is secured tightly.
  • Page 4 Robustel GoRugged M1000 USB Quick Guide module version. 2. Right-click to enter Properties and then click Update Driver. 3. Click Browse my computer for driver software. RT_QG_M1000 USB _v.1.0.0 25.01.2014 4 /7...
  • Page 5 Robustel GoRugged M1000 USB Quick Guide 4. Click Browse to locate the position of the USB driver which can be found out in the CD, then click Next. 5. After succeeding to install the USB driver, it will popup the following window.
  • Page 6 Robustel GoRugged M1000 USB Quick Guide 7. Select the USB modem and right-click to enter “Properties”. In tab “Modem”, you will find that there is simulated COM port which serial software such as secureCRT needs to connect to. 3.2 Start SecureCRT We can enter AT commands to configure M1000 USB from serial software such as secureCRT, you can download this software via link: https://app.box.com/s/arkn6xk1asgs1myvuuie.
  • Page 7 4. Select the simulated COM port and match the parameters as below, click the “Next” button to finish this session. Note: You need to disable “RTS/CTS. Configuring the modem with AT command. Note: Please refer to Robustel GoRugged M1000 USB User Guide to get more details about M1000’ configuration. RT_QG_M1000 USB _v.1.0.0 25.01.2014...
