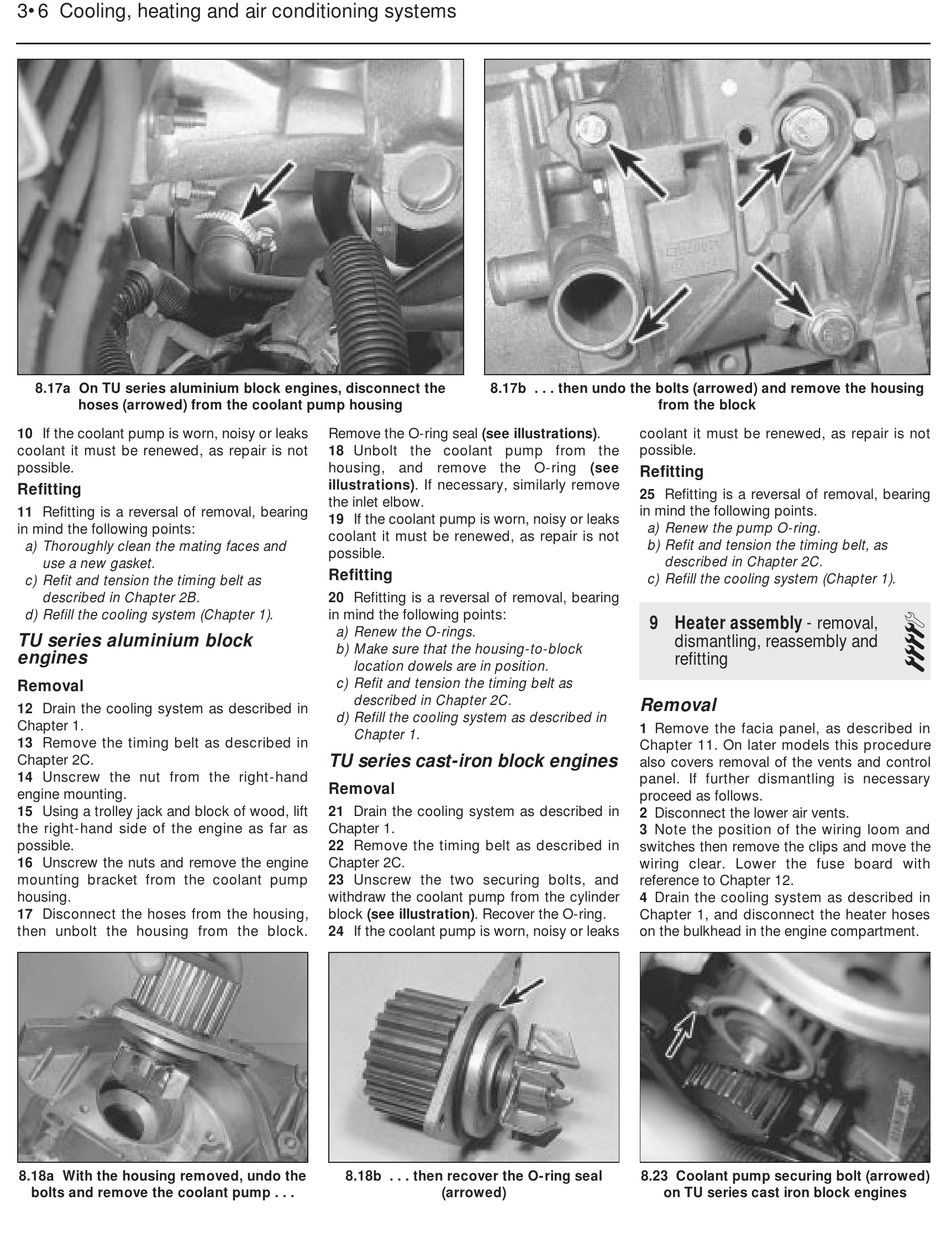

3•6 Cooling, heating and air conditioning systems
8.17a On TU series aluminium block engines, disconnect the
hoses (arrowed) from the coolant pump housing
10 If the coolant pump is worn, noisy or leaks
coolant it must be renewed, as repair is not
possible.
Refitting
11 Refitting is a reversal of removal, bearing
in mind the following points:
a) Thoroughly clean the mating faces and
use a new gasket.
c) Refit and tension the timing belt as
described in Chapter 2B.
d) Refill the cooling system (Chapter 1).
TU series aluminium block
engines
Removal
12 Drain the cooling system as described in
Chapter 1.
13 Remove the timing belt as described in
Chapter 2C.
14 Unscrew the nut from the right-hand
engine mounting.
15 Using a trolley jack and block of wood, lift
the right-hand side of the engine as far as
possible.
16 Unscrew the nuts and remove the engine
mounting bracket from the coolant pump
housing.
17 Disconnect the hoses from the housing,
then unbolt the housing from the block.
8.18a With the housing removed, undo the
bolts and remove the coolant pump . . .
8.17b . . . then undo the bolts (arrowed) and remove the housing
Remove the O-ring seal (see illustrations).
18 Unbolt the coolant pump from the
housing, and remove the O-ring (see
illustrations). If necessary, similarly remove
the inlet elbow.
19 If the coolant pump is worn, noisy or leaks
coolant it must be renewed, as repair is not
possible.
Refitting
20 Refitting is a reversal of removal, bearing
in mind the following points:
a) Renew the O-rings.
b) Make sure that the housing-to-block
location dowels are in position.
c) Refit and tension the timing belt as
described in Chapter 2C.
d) Refill the cooling system as described in
Chapter 1.

TU series cast-iron block engines

Removal
21 Drain the cooling system as described in
Chapter 1.
22 Remove the timing belt as described in
Chapter 2C.
23 Unscrew the two securing bolts, and
withdraw the coolant pump from the cylinder
block (see illustration). Recover the O-ring.
24 If the coolant pump is worn, noisy or leaks
8.18b . . . then recover the O-ring seal
(arrowed)
from the block
coolant it must be renewed, as repair is not
possible.
Refitting
25 Refitting is a reversal of removal, bearing
in mind the following points.
a) Renew the pump O-ring.
b) Refit and tension the timing belt, as
described in Chapter 2C.
c) Refill the cooling system (Chapter 1).
9 Heater assembly - removal,
dismantling, reassembly and
refitting
Removal
1 Remove the facia panel, as described in
Chapter 11. On later models this procedure
also covers removal of the vents and control
panel. If further dismantling is necessary
proceed as follows.
2 Disconnect the lower air vents.
3 Note the position of the wiring loom and
switches then remove the clips and move the
wiring clear. Lower the fuse board with
reference to Chapter 12.
4 Drain the cooling system as described in
Chapter 1, and disconnect the heater hoses
on the bulkhead in the engine compartment.
8.23 Coolant pump securing bolt (arrowed)
on TU series cast iron block engines
4
