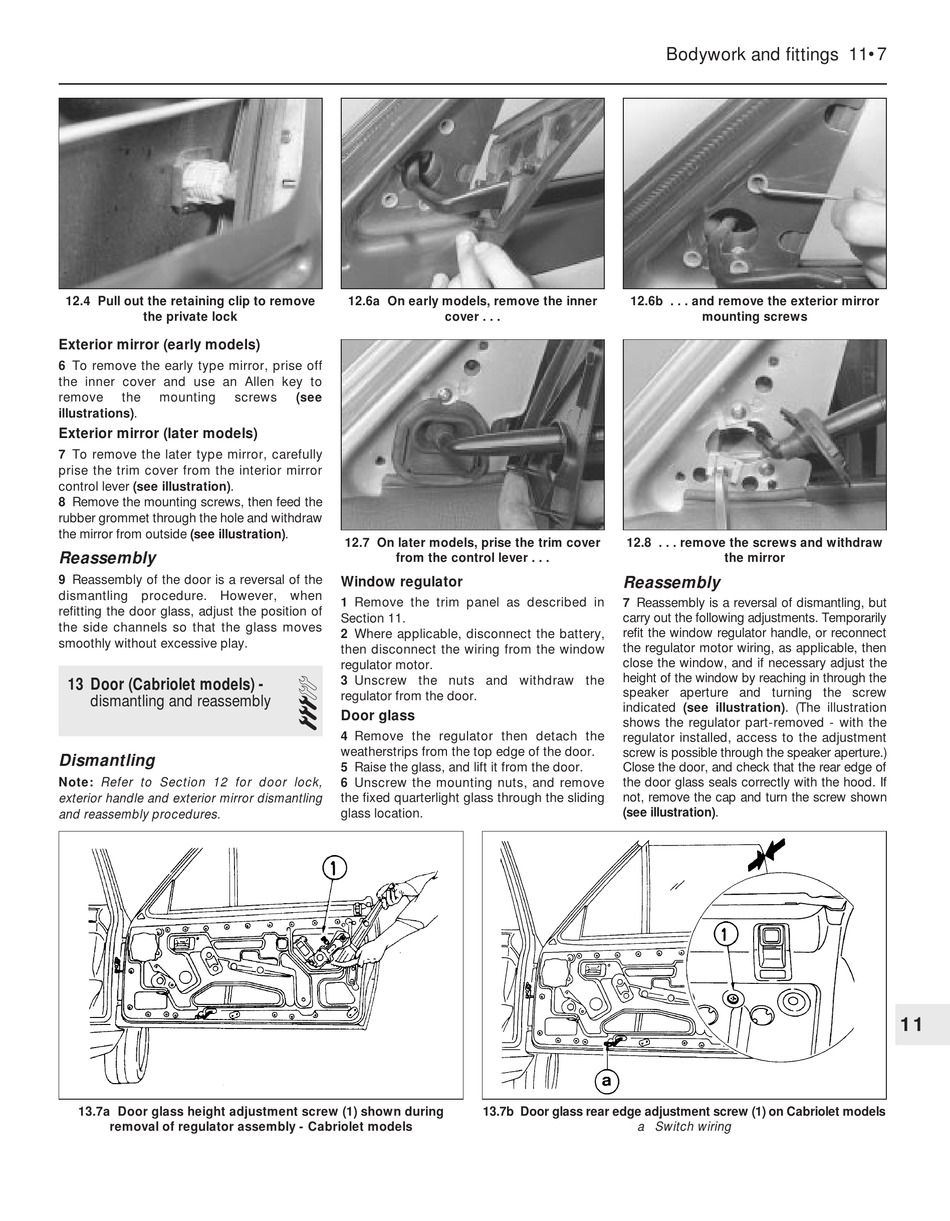

Door; Exterior Mirror (Early Models) - PEUGEOT 205 Manual

12.4 Pull out the retaining clip to remove
the private lock

Exterior mirror (early models)

6 To remove the early type mirror, prise off
the inner cover and use an Allen key to
remove the mounting screws
illustrations).
Exterior mirror (later models)
7 To remove the later type mirror, carefully
prise the trim cover from the interior mirror
control lever (see illustration).
8 Remove the mounting screws, then feed the
rubber grommet through the hole and withdraw
the mirror from outside (see illustration).
Reassembly
9 Reassembly of the door is a reversal of the
dismantling procedure. However, when
refitting the door glass, adjust the position of
the side channels so that the glass moves
smoothly without excessive play.
13 Door (Cabriolet models) -
dismantling and reassembly
Dismantling
Note: Refer to Section 12 for door lock,
exterior handle and exterior mirror dismantling
and reassembly procedures.
13.7a Door glass height adjustment screw (1) shown during
removal of regulator assembly - Cabriolet models
12.6a On early models, remove the inner
cover . . .
(see
12.7 On later models, prise the trim cover
from the control lever . . .
Window regulator
1 Remove the trim panel as described in
Section 11.
2 Where applicable, disconnect the battery,
then disconnect the wiring from the window
regulator motor.
3 Unscrew the nuts and withdraw the
3
regulator from the door.
Door glass
4 Remove the regulator then detach the
weatherstrips from the top edge of the door.
5 Raise the glass, and lift it from the door.
6 Unscrew the mounting nuts, and remove
the fixed quarterlight glass through the sliding
glass location.
12.6b . . . and remove the exterior mirror
12.8 . . . remove the screws and withdraw
Reassembly
7 Reassembly is a reversal of dismantling, but
carry out the following adjustments. Temporarily
refit the window regulator handle, or reconnect
the regulator motor wiring, as applicable, then
close the window, and if necessary adjust the
height of the window by reaching in through the
speaker aperture and turning the screw
indicated (see illustration). (The illustration
shows the regulator part-removed - with the
regulator installed, access to the adjustment
screw is possible through the speaker aperture.)
Close the door, and check that the rear edge of
the door glass seals correctly with the hood. If
not, remove the cap and turn the screw shown
(see illustration).
13.7b Door glass rear edge adjustment screw (1) on Cabriolet models
a Switch wiring
Bodywork and fittings 11•7
mounting screws
the mirror
