Equipment overview

Equipment overview
Application button Application button Navigation key Radio indicator Voice notes Application button Controls Hardware, overview Overview Answer button End button Microphone Mini USB port Application button 3-way scroll button Ports Display Status indicators VGA camera GSM port 2 megapixel autofocus camera Power indicator SD slot
2
1
16
15
14
13
12

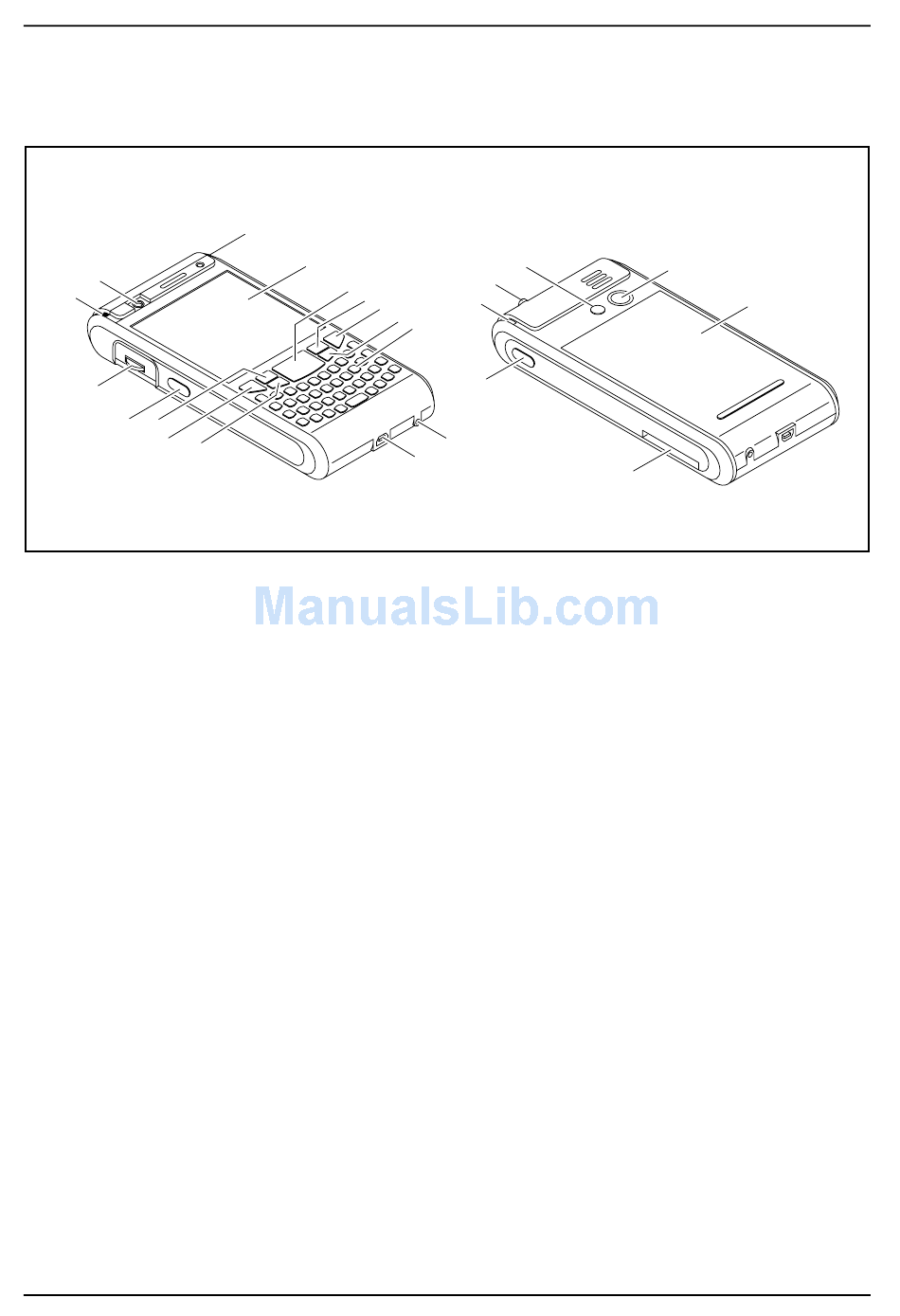

1 = Antenna indicator
2 = VGA camera
3 = Battery/events indicator
4 = Display
5 = Navigation key
6 = Softkey button 2
7 = End button
8 = Application button 2: Inbox
9 = Keyboard with integrated number block
10 = GPS antenna port
11 = Mini USB port
12 = Application button 1: Calendar
4
3
4
5 6
7
1
8
9
19
18
17
23
10
11
13 = Answer button
14 = Softkey button 1
15 = Application button 5: SpeedMenu
and camera
16 = 3-way scroll button
17 = Pen slot
18 = Socket for headphones or headset
19 = GSM port
20 = 2 megapixel autofocus camera
21 = Battery compartment
22 = Slot for SD/MMC expansion card
23 = Application button 6: Voice notes
A26391-K182-Z120-1-7619, edition 2
20
21
22
