After 1 hour the display is dimmed to lowest intensity. Press any key to light up the display.
4.2.2

Navigating the menus

Use the keypad to navigate the menus.
• Use the arrow keys  and  to go through the menu items or enter a
number, digit by digit.
• Press OK or  to select a menu item.
• Use the arrow keys  and  to go through the settings and move
from one digit to the next.
• Press OK to select a setting.
• Press  again to move one level up. If applicable, confirm to store the new setting by
pressing OK.
4.2.3

The menu tree

In the menu tree you can see how the system has been configured. To enter satellite
information, use a connected PC and the web interface.
98-147366-A

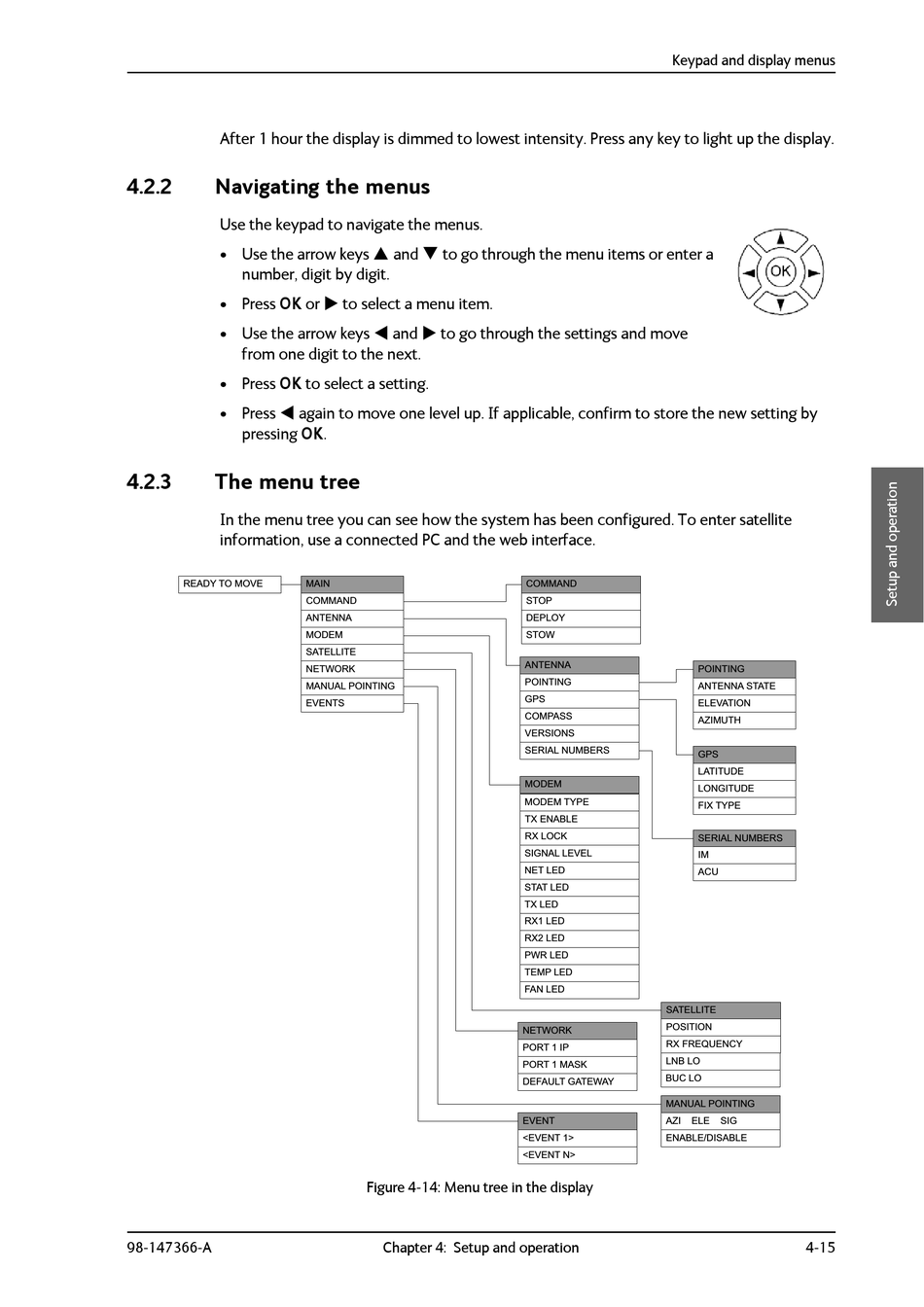

Figure 4-14: Menu tree in the display
