To Jog The Antenna - COBHAM EXPLORER 7100GX Installation And User Manual

Start up and daily use
To deploy the antenna using the web interface
1. Switch on the ACU and the GMU.
2. After power up wait until the ACU display shows READY TO MOVE
3. Connect a PC to the LAN1 connector at the ACU.
4. Open your Internet browser and enter the IP address of the EXPLORER 7100GX. The
default IP address is http://192.168.0.1.
When the login screen is displayed you have verified that the connection can be
established.
5. Type in the user name admin and the password 1234 to access the Dashboard as an
administrator.
6. Wait until the status shows READY TO MOVE.
7. Navigate to the page SERVICE > ANTENNA and click the button Deploy.
8. Wait until the status shows Deployed.
3.3.2

To jog the antenna

When the antenna is deployed you can jog the antenna.
To jog the antenna using the web interface
1. Connect a PC to the LAN1 connector.
3-6

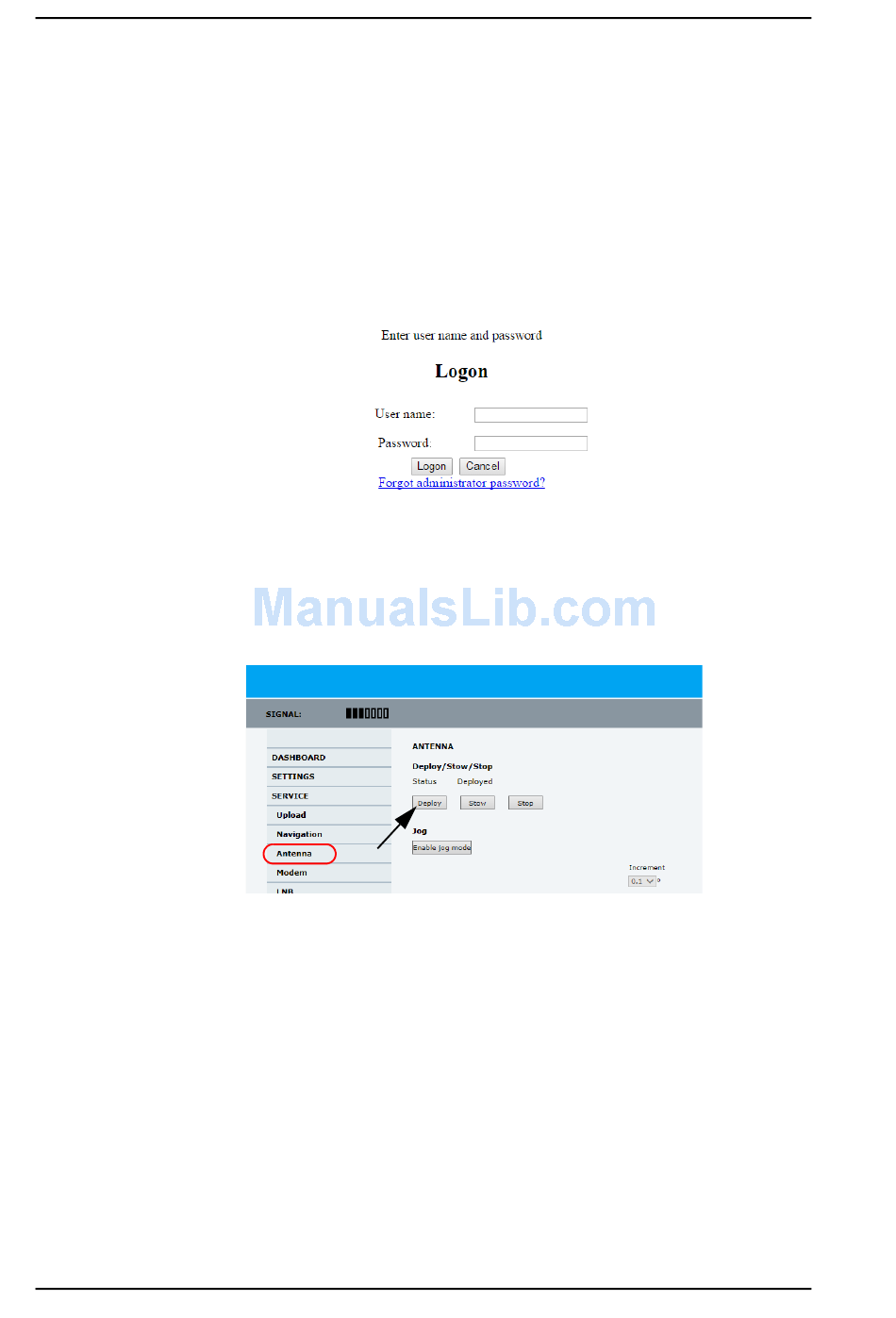

Figure 3-4: Logon screen to the web interface
Figure 3-5: To deploy the antenna using the web interface
Chapter 3: Installation & start up 98-147366-A
