2. Open your Internet browser and enter the IP address of the EXPLORER 7100GX. The
default IP address is http://192.168.0.1.
3. Type in the user name admin and the password 1234 (default) to access the Dashboard
as an administrator.
4. Navigate to the page SERVICE > ANTENNA and click the button Enable jog mode.
The status shows: Jogging.
5. Use the arrow keys to select the desired axis and adjust the offset value.
6. To leave the Jog mode click Stop.
3.3.3

To stow the antenna

Set the antenna into the stow position before moving the vehicle.
WARNING! Be aware of pinch points while the antenna is being positioned,
deployed or stowed.
To stow the antenna using the keypad and display
To learn how to use the keypad see Navigating the menus on page 4-15.
1. Press OK to scroll to the COMMAND page and press OK again to access the page.
2. Press  until STOW is selected, and press OK.
3. Wait until the status shows STOWED.
To stow the antenna using the web interface
1. Connect a PC to the LAN1 connector.
2. Open your Internet browser and enter the IP address of the EXPLORER 7100GX. The
default IP address is http://192.168.0.1.
98-147366-A

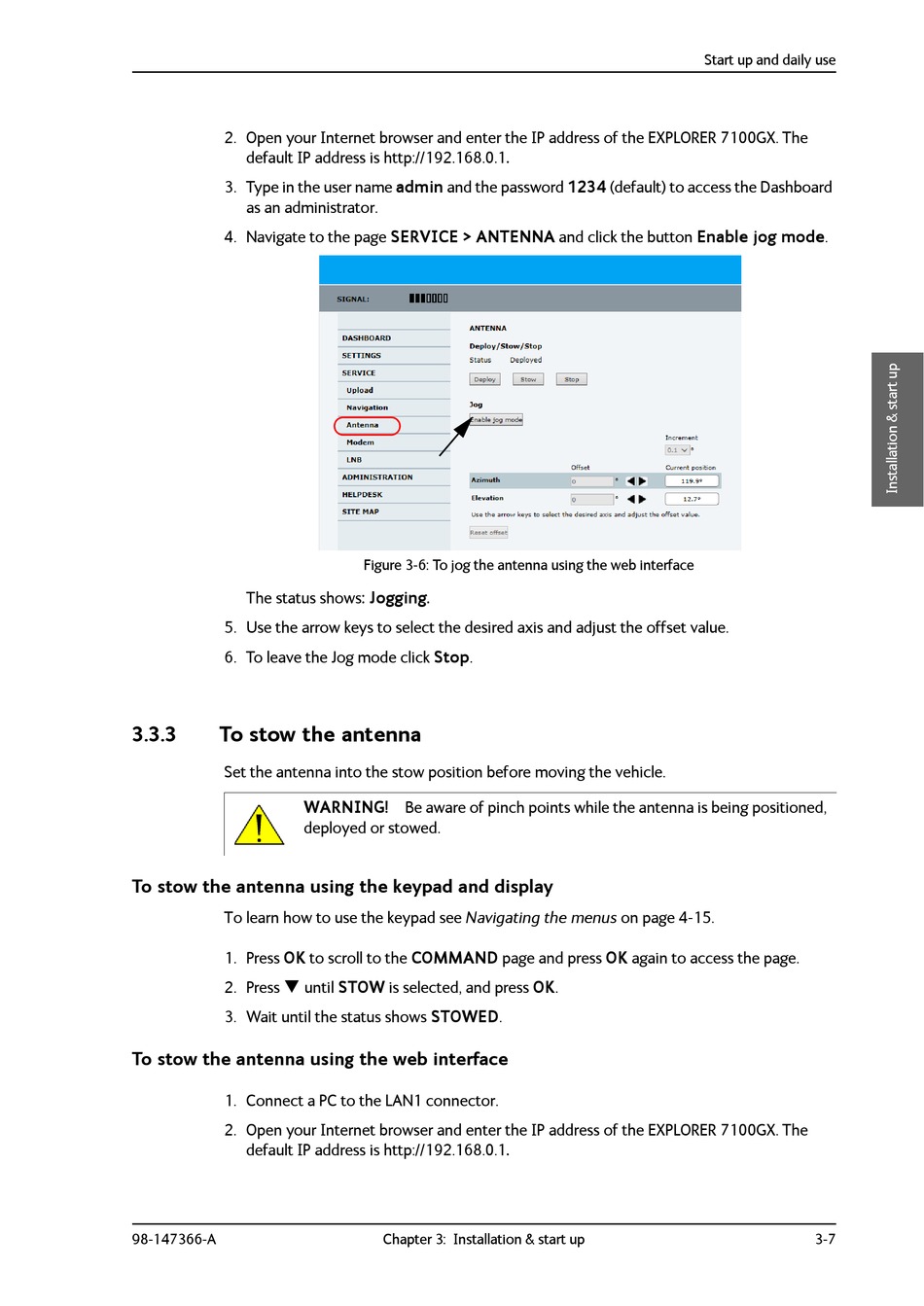

Figure 3-6: To jog the antenna using the web interface
Chapter 3: Installation & start up
Start up and daily use
3-7
