Part No. 49749

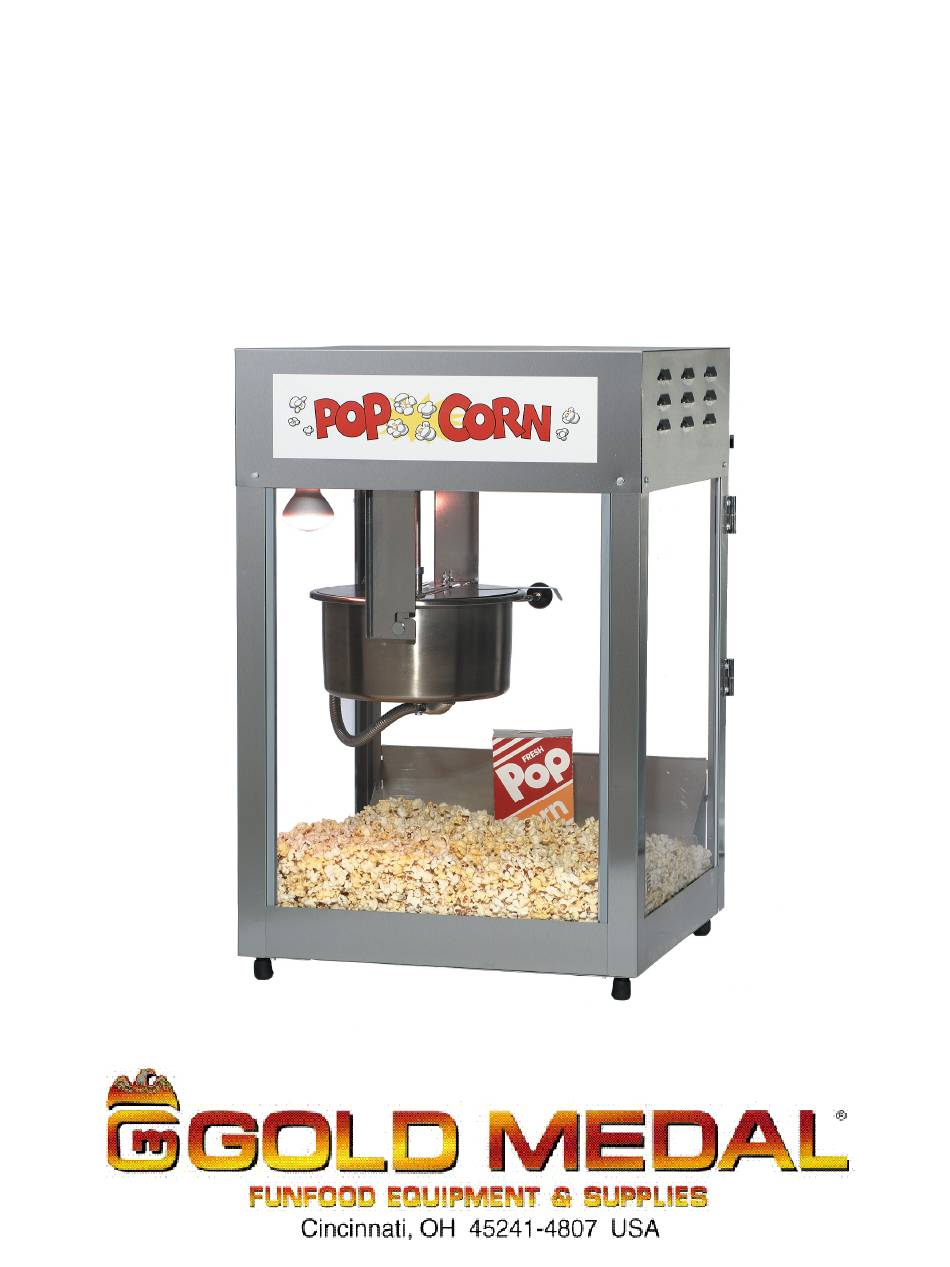

Pop Maxx
Instruction Manual
Models: 2552, 2552KC, and 2552LS

Advertisement

Table of Contents
loading

Related Manuals for Gold Medal Pop Maxx 2552

Summary of Contents for Gold Medal Pop Maxx 2552

  • Page 1 Part No. 49749 Pop Maxx Instruction Manual Models: 2552, 2552KC, and 2552LS...

  • Page 2: Safety Precautions

    Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_010914...
  • Page 3 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.

  • Page 4: Installation Instructions

    It is Gold Medal Products Company’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety reasons and the popper’s performance will be sacrificed/reduced.

  • Page 5: Controls And Their Functions

    Pop Maxx Controls and Their Functions Light & Warmer Switch This switch operates the overhead light and corn deck freshener heat element. Kettle Motor Switch This switch operates the popcorn agitator shaft. This switch must be ON at all times when popcorn (popped and un-popped) is present in the kettle.

  • Page 6: Popping Instructions

    Pop Maxx Amount of Popcorn and Oil: Your new popper is equipped with a corn, salt, and oil measure. We recommend flavored and colored coconut oil. Popcorn popped in coconut oil stays fresh longer and does not leave black deposits in your kettle like other oils. Use only top quality fresh hybrid popcorn from reputable suppliers.
  • Page 7 Pop Maxx Count Down timer Instructions 1. Press MIN and SEC together to reset timer to zeo. 2. Use MIN and SEC buttons to set time. 3. Press START button to start or stop. 4. The alarm will sound for 60 seconds or press any key to stop alarm. The timer will return to the set time.

  • Page 8: Care And Cleaning

    Heat’n Kleen will not damage the kettle’s cook surface. Contact your local Gold Medal Products Company dealer if additional cleaning strength is required for extremely dirty kettles.

  • Page 9: Filter Cleaning Instructions

    Pop Maxx Filter Cleaning Instructions Your popcorn machine is equipped with an efficient and durable filtration system. However, the filter should be cleaned every 1-2 weeks to maintain efficiency. Follow the steps below for proper filter cleaning: 1. The filter is located on the inside of the popcorn machine, directly above the popping kettle.

  • Page 10: Maintenance Instructions

    Pop Maxx MAINTENANCE INSTRUCTIONS Models #2552, #2552LS, #2552KC,...

  • Page 11: Ordering Spare Parts

    3. Please include the machine’s model name, serial number, and date of manufacture (located on the machine nameplate) with your order. 4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 (800) 543-0862...
  • Page 12 Pop Maxx Kettle Breakdown Kettle Complete – P/N 58014 Twist Lock Plug (Plug Only) P/N 49329 Dump Handle Knob P/N 47110 Dump Handle Assy P/N 49571 Lead-in Cord Assy. Kettle Shell Assy. Complete P/N 61017 P/N 61226 Thermostat 482F - 76708 (For 2552KC - Thermostat Thermostat Shunt Bar 450F P/N 76089)
  • Page 13 Pop Maxx Lid and Agitator Assembly Bearing Hub (Included with 41093 shaft assy.) P/N 43434 Needle Bearing P/N 47106 Spur Gear P/N 47060 Agitator Shaft Assy. (Includes 43434 Set Screw for Spur Bearing Hub) Gear P/N 69712 P/N 41742 Set Collar (3) P/N 46649 Set Screws for Set Collars (2)

  • Page 14: Cabinet Assembly

    Pop Maxx Cabinet Assembly Magnetic Catch Glass (3 pieces – same size) P/N 47561 P/N 49826 Dome Bracket for Magnetic Catch Dimensions: P/N 77769 P/N 41340 16 7/8” X 21 ¼” See next page for RH and LH Door Hardware Components Door (2) P/N 77774 Corn Pan...
  • Page 15 Pop Maxx Door Hardware Kit 61380 Individual Component Breakdown Complete Door Hardware Kit (P/N 61380) (contains all parts shown above) Part No. Item Part Description 61380 KNOB LID LIFT 47120 TEE BOLT 75267 8-32 X 5/16 SLOTTED HEX 49594 8-32 X 3/8 PH PAN W/SEMS 42227 ACORN NUT #8-32 47702...
  • Page 16 Pop Maxx Spur Gear Switch, Dpst Rocker Magnetic Catch P/N 47060 P/N 42532 P/N 47561 Set Screw for Switch, Lighted Rocker Spur Gear P/N 42798 P/N 41742 Switch Box Label Magnetic Catch P/N 48502 Bracket Small Switch Box P/N 41340 P/N 48501 Box Filter P/N 69850...

  • Page 17: Motor Plate Assembly

    Pop Maxx 20 Watt Foil Heater (Under Bottom Cover) P/N 40557 Motor Plate Assembly Light Shield Lamp Holder Exhaust Blower (2) Conical P/N 47047 P/N 48018 P/N 40589 Kettle Drive Motor P/N 47038 Terminal block Kettle Receptacle P/N 47208 P/N 49330 Models #2552, #2552LS, #2552KC,...
  • Page 18 Pop Maxx Electrical Schematic Model 2552 Models #2552, #2552LS, #2552KC,...
  • Page 19 Pop Maxx Electrical Schematic Model 2552LS Models #2552, #2552LS, #2552KC,...
  • Page 20 Pop Maxx Electrical Schematic Model 2552KC Models #2552, #2552LS, #2552KC,...

  • Page 21: Warranty
