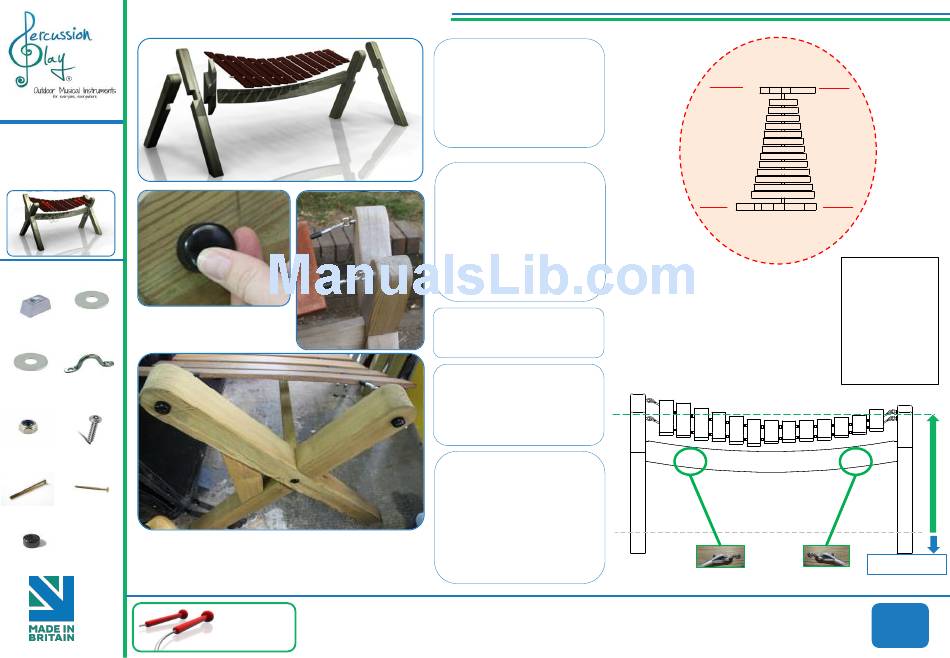

Percussion Play Akadinda Installation Instructions

Installation Instructions

Ground Fixed
Akadinda
Page 1 of 2
(1.1)
Instrument
Components:
M10 Wedge
M10 x30 SS
NutX2
Washer X2
M8x25 SS Eye Straps
Washer X8 X2
M8 Lock 5x40mm
Nut X4
Secure Screw
X4
5x70mm
M10x130
Screw X4
Bolt X2
Black Caps
X8
BS EN 1176
(1.2)
Weight of heaviest part 28kg (Frame)
Pair Large Red
Beaters X2
1. Assemble Akadinda frame
comprising 2x 'X'-shaped legs
and 1x horizontal beam. (See
Assembly Guide).Cover 8
holes on horizontal beam
using 4x30mm caps (1.1)
2.Locate M8x80mm eye bolts
through pre drilled holes using
flat washers on both sides of
the timber to prevent the
fixing pulling into the timber.
Secure in place with M8 nyloc
nuts, cover 4 holes in ends
using 4x30mm caps. (1.3)
3. Place Akadinda in desired
location and mark 4 holes for
excavation.
(1.3)
4. Excavate holes to min depth
150mm according to required
height for intended players.
Hole depth guide below.
5. Locate legs in holes and
check levels prior to
concreting in place. Once
happy with location an levels,
fill holes using rapid hardening
concrete. Leave to dry
according to manufactures
guidelines.
1.5m
1.5m
Height to centre of notes:
KS0 3-5 500mm Depth 400mm
KS1 5-7 650mm Depth 250mm
KS2 7-11 750mm Depth 150mm
Adult 900mm Surface Mounted
Mount eye straps in the
centre of the beam 360mm
from each end to attach the
beaters.
Ground Surface
Spares available form
percussionplay.com
or from your
local distributor
Install Instrument
with 1.5m free space
(from widest point)
around it.
1.5m
1.5m
Metric Conversion:
150mm/ 6"
250mm/ 10"
360mm/ 14"
400mm/ 16"
500mm/ 20"
650mm/ 26"
750mm/ 30"
900mm/ 35"
1.5m/ 59"
150mm at KS2
48 Kg
