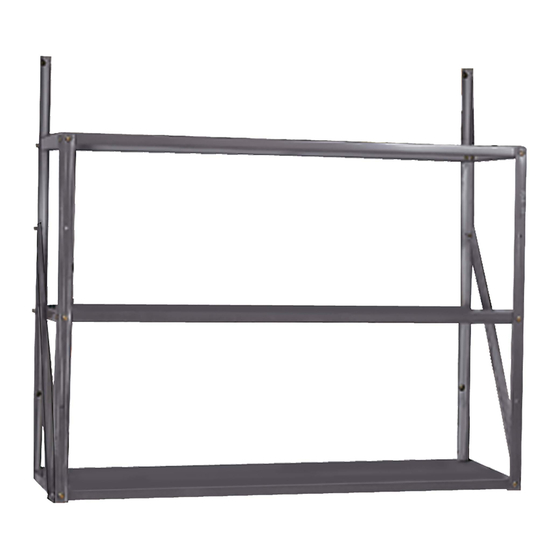

Wall shelf

Advertisement

Quick Links

Owner's Manual & Assembly Instructions
Wall Shelf
Model No. SS900-B
697.68204-B
1

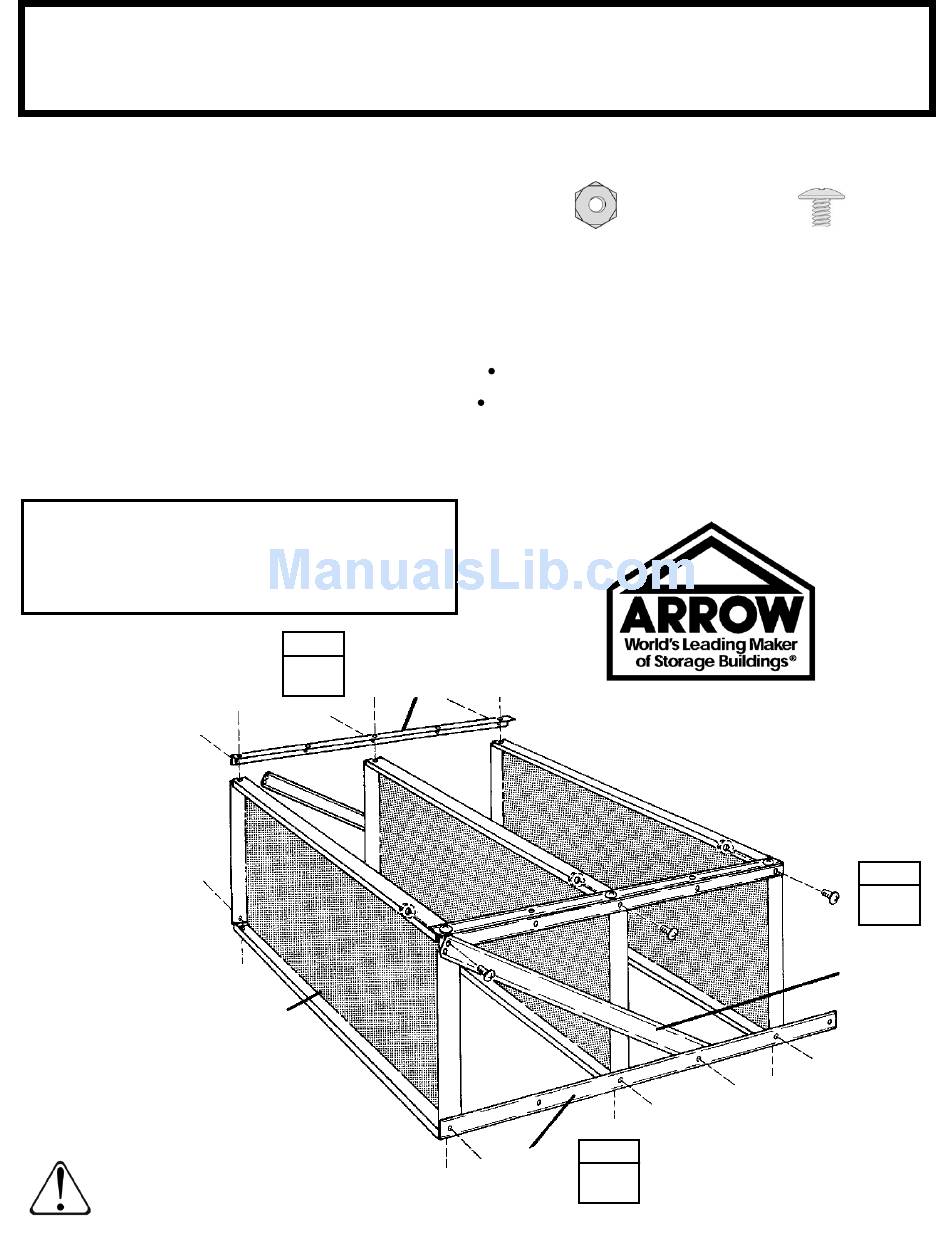

Place two rear posts on a flat surface parallel to
each other. Position shelves at desired locations
and fasten with bolts and nuts.
2
Place front posts opposite the rear posts and
secure to shelves using bolts and nuts.
3
Fasten braces to the inside of rear posts and
outside of front posts with bolts and nuts.
First remove and reinsert bolt and nut fastening
bottom shelf to side leg of front post. Fasten
opposite end of brace to rear post.
CAUTION: SOME PARTS HAVE SHARP EDGES.
CARE MUST BE TAKEN WHEN HANDLING THE
VARIOUS PIECES TO AVOID A MISHAP. WEAR
GLOVES WHEN HANDLING METAL PARTS.
NOTE
STEP
FRONT POST
2
SHELF
7053
65103
#8-32 Hex Nut (26)
Keep this Owner's Manual for future reference.
Wash off inked part numbers on coated shelves with soap and water.
If you find a part is missing, include the model no. of your shelf and contact:
Arrow Shed, LLC
1101 North 4th
1-800-851-1085 or assist@arrowsheds.com
7056
STEP
REAR POST
7057
#8-32x1/4" (6 mm)
Customer Service Dept.
Breese, Illinois 62230
1
66013
Bolt (26)
STEP
3
BRACE
3903
717451111

Advertisement

loading
Need help?

Need help?

Do you have a question about the SS900-B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Arrow SS900-B

  • Page 1 Owner's Manual & Assembly Instructions Wall Shelf Model No. SS900-B 697.68204-B 65103 66013 #8-32 Hex Nut (26) #8-32x1/4" (6 mm) Bolt (26) Place two rear posts on a flat surface parallel to each other. Position shelves at desired locations Keep this Owner's Manual for future reference.
  • Page 2: Mounting Instructions

    Mounting Instructions ASSEMBLY PROCEDURE WHEN MOUNTING TO VERTICAL SIDED BUILDINGS WITH 60" (152,4 cm) WALL HEIGHT Locate shelf unit on desired wall. Drill two Drill 1/4" (6 mm) dia. holes 1/4" (6 mm) dia. holes through upper wall through wall panel and angle #8-32 angle and wall panel 32 3/8"...
