5.

Installation

5.1

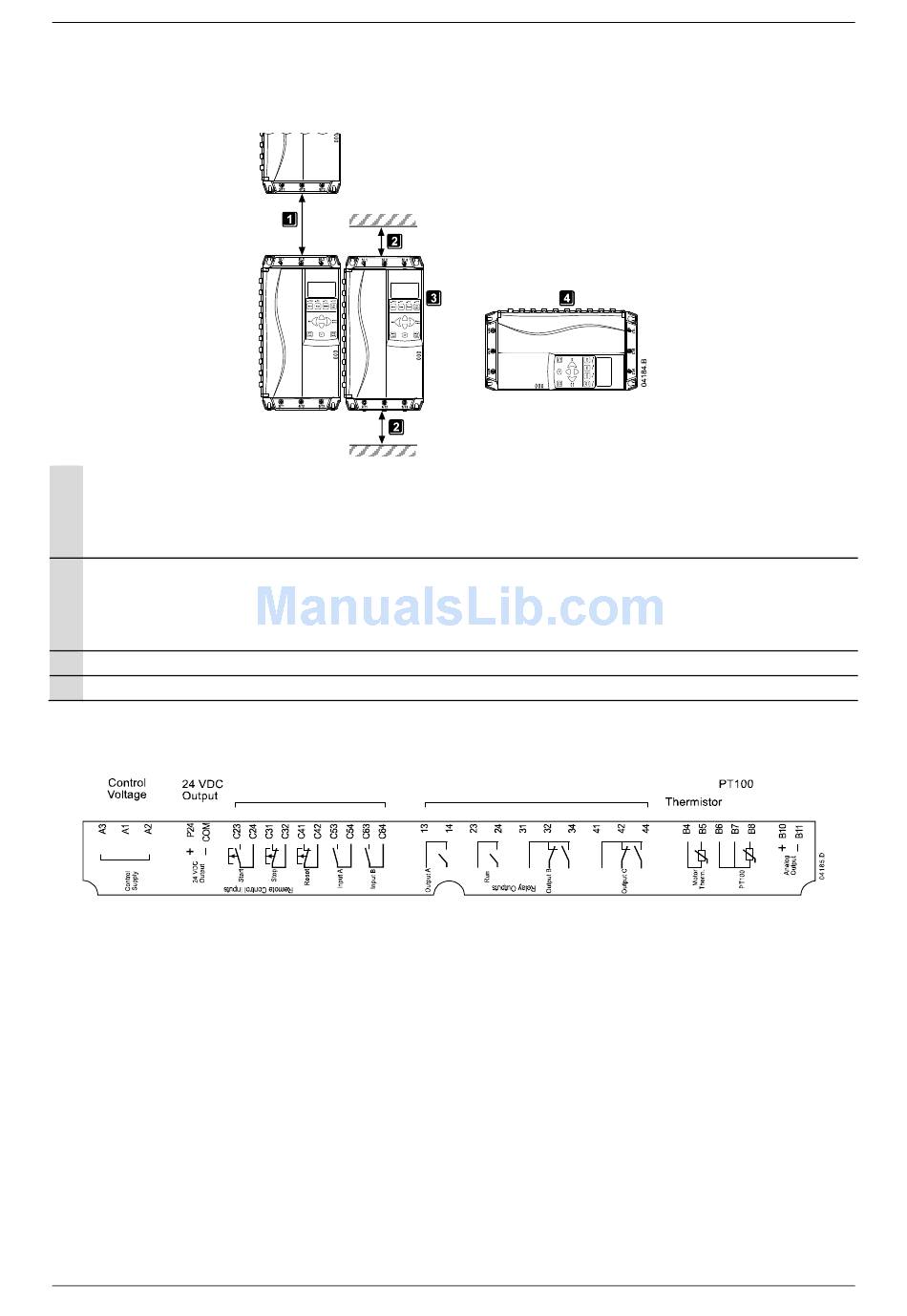

Physical Installation

1
EMX3-0023B ~ EMX3-0220B: Allow 100 mm (3.94 inches) between soft starters.
EMX3-0255B ~ EMX3-1000B: Allow 200 mm (7.88 inches) between soft starters.
EMX3-0255C: Allow 100 mm (3.94 inches) between soft starters.
EMX3-0360C ~ EMX3-1600C: Allow 200 mm (7.88 inches) between soft starters.
2
EMX3-0023B ~ EMX3-0220B: Allow 50 mm (1.97 inches) between the soft starter and solid surfaces.
EMX3-0255B ~ EMX3-1000B: Allow 200 mm (7.88 inches) between the soft starter and solid surfaces.
EMX3-0255C: Allow 100 mm (3.94 inches) between the soft starter and solid surfaces.
EMX3-0360C ~ EMX3-1600C: Allow 200 mm (7.88 inches) between the soft starter and solid surfaces.
3
Soft starters may be mounted side by side with no clearance (that is, if mounted without communications modules).
4
The soft starter may be mounted on its side. Derate the soft starter's rated current by 15%.
5.2

Control Terminals

Control terminations use 2.5mm
5.3

Control Voltage

Different models require control voltage to different terminals:
C1 (110~210 VAC)
C1 (220~440 VAC)
C2 (24 VAC/VDC)
plug-in terminal blocks. Unplug each block, complete the wiring, then reinsert the block.
2
Remote Control Inputs
A1, A2
A2, A3
A1, A3
Relay Outputs
User Manual (710-04840-00M) |
INSTALLATION
Analog
Output
9
