INSTRUCTIONS

1. Important User Information

Observe all necessary safety precautions when controlling the soft starter remotely.
Alert personnel that machinery may start without warning.
It is the installer's responsibility to follow all instructions in this manual and to follow
correct electrical practice.
Use all internationally recognised standard practice for RS-485 communications when
installing and using this equipment.

2. Installation

2.1 Installation Procedure

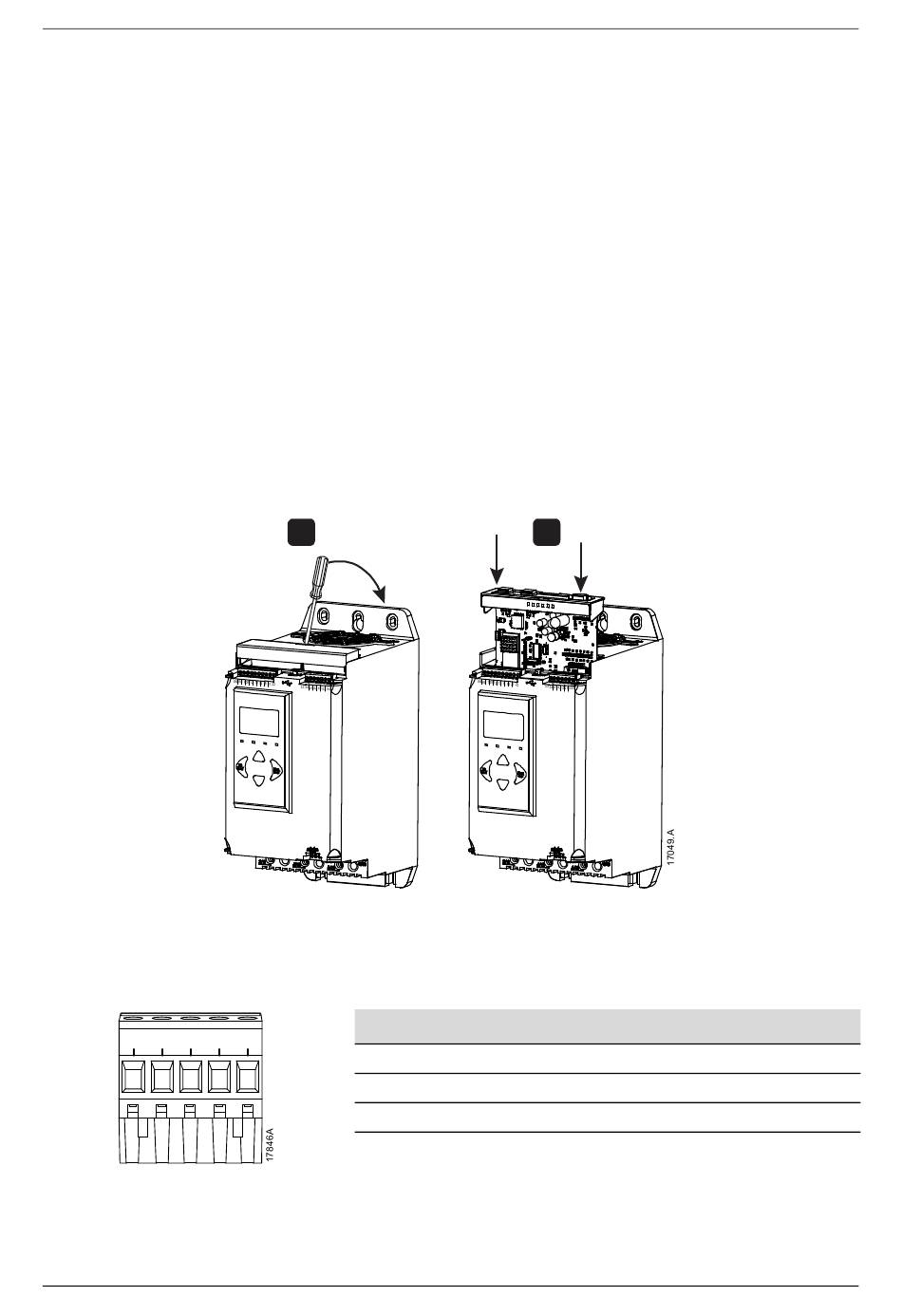

1. Push a small flat-bladed screwdriver into the slot in the centre of the expansion
port cover, and ease the cover away from the starter.
2. Line up the card with the expansion port. Gently push the card along the guide rails
until it clicks into the starter.
2.2 Connecting to the Network
After the card is in place, control power can be restored and field wiring can be
connected via the 5-way connector plug.
5
4
3
2
2
1
1
2
Pin
1, 2
3
4, 5
Modbus RTU Card (710-16499-00B)
Function
Data A
Common
Data B
