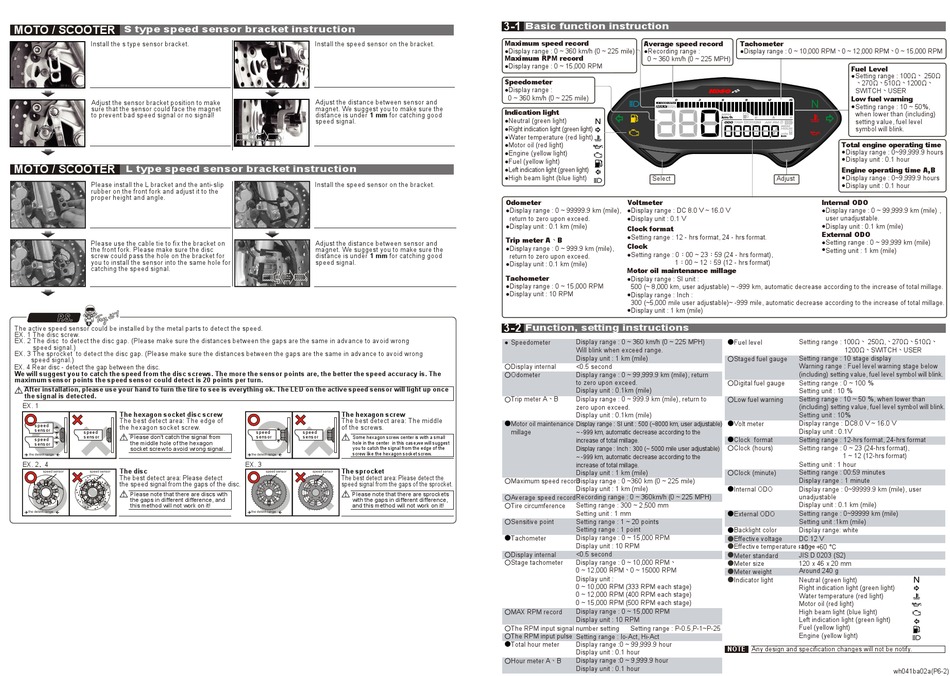

Koso DB-01 Installation Manual page 2

MOTO / SCOOTER
S type speed sensor bracket instruction
Install the s type sensor bracket.
Adjust the sensor bracket position to make
sure that the sensor could face the magnet
to prevent bad speed signal or no signal!
MOTO / SCOOTER
L type speed sensor bracket instruction
Please install the L bracket and the anti-slip
rubber on the front fork and adjust it to the
proper height and angle.
Please use the cable tie to fix the bracket on
the front fork. Please make sure the disc
screw could pass the hole on the bracket for
you to install the sensor into the same hole for
catching the speed signal.
The active speed sensor could be installed by the metal parts to detect the speed.
EX. 1 The disc screw.
EX. 2 The disc to detect the disc gap. (Please make sure the distances between the gaps are the same in advance to avoid wrong
speed signal.)
EX. 3 The sprocket to detect the disc gap. (Please make sure the distances between the gaps are the same in advance to avoid wrong
speed signal.)
EX. 4 Rear disc - detect the gap between the disc.
We will suggest you to catch the speed from the disc screws. The more the sensor points are, the better the speed accuracy is. The
maximum sensor points the speed sensor could detect is 20 points per turn.
After installation, please use your hand to turn the tire to see is everything ok. The LED on the active speed sensor will light up once
the signal is detected.
EX. 1
The hexagon socket disc screw
The best detect area: The edge of
speed
the hexagon socket screw.
sensor
speed
sensor Please don't catch the signal from
speed
the middle hole of the hexagon
sensor
socket screw to avoid wrong signal.
the detect range
EX. 2 4
、
The disc
speed sensor speed sensor
The best detect area: Please detect
the speed signal from the gaps of the disc.
Please note that there are discs with
the gaps in different difference, and
this method will not work on it!
the detect range
Install the speed sensor on the bracket.
Adjust the distance between sensor and
magnet. We suggest you to make sure the
distance is under 1 mm for catching good
speed signal.
b e lo w spe e d
8 m m se nso r
Install the speed sensor on the bracket.
Adjust the distance between sensor and
magnet. We suggest you to make sure the
distance is under 1 mm for catching good
speed signal.
The hexagon screw
The best detect area: The middle
of the screws.
speed speed
sensor sensor Some hexagon screw center is with a small
hole in the center in this case,we will suggest
you to catch the signal from the edge of the
screw like the hexagon socket screw.
the detect range
EX. 3
The sprocket
speed sensor speed sensor
The best detect area: Please detect the
speed signal from the gaps of the sprocket.
Please note that there are sprockets
with the gaps in different difference,
and this method will not work on it!
the detect range
3-1
Basic function instruction
Maximum speed record Average speed record
●Display range : 0 ~ 360 km/h (0 ~ 225 mile) ●Recording range :
Maximum RPM record 0 ~ 360 km/h (0 ~ 225 MPH)
●Display range : 0 ~ 15,000 RPM
Speedometer
●Display range :
0 ~ 360 km/h (0 ~ 225 mile)
Indication light
●Neutral (green light)
● Right indication light (green light)
● Water temperature (red light)
● Motor oil (red light)
● Engine (yellow light)
● Fuel (yellow light)
● Left indication light (green light)
●High beam light (blue light)
Select
Odometer Voltmeter
●Display range : 0 ~ 99999.9 km (mile), ●Display range : DC 8.0 V ~ 16.0 V
return to zero upon exceed. ●Display unit : 0.1 V
●Display unit : 0.1 km (mile)
Clock format
●Setting range : 12 - hrs format, 24 - hrs format.
Trip meter A、B
Clock
●Display range : 0 ~ 999.9 km (mile),
● Setting range : 0：00 ~ 23：59 (24 - hrs format),
return to zero upon exceed.
1：00 ~ 12：59 (12 - hrs format)
●Display unit : 0.1 km (mile)
Motor oil maintenance millage
Tachometer
● Display range : SI unit :
●Display range : 0 ~ 15,000 RPM
500 (~ 8,000 km, user adjustable) ~ -999 km, automatic decrease according to the increase of total millage.
●Display unit : 10 RPM ● Display range : Inch :
300 (~5,000 mile user adjustable)~ -999 mile, automatic decrease according to the increase of total millage.
● Display unit : 1 km (mile)
3-2
Function, setting instructions
● Speedometer Display range : 0 ~ 360 km/h (0 ~ 225 MPH)
Will blink when exceed range.
Display unit : 1 km (mile)
<0.5 second
○ Display internal
○ Odometer Display range : 0 ~ 99,999.9 km (mile), return
to zero upon exceed.
Display unit : 0.1km (mile)
○ Trip meter A、B Display range : 0 ~ 999.9 km (mile), return to
zero upon exceed.
Display unit : 0.1km (mile)
●Motor oil maintenance Display range : SI unit : 500 (~8000 km, user adjustable)
millage
~ -999 km, automatic decrease according to the
increase of total millage.
Display range : Inch : 300 (~ 5000 mile user adjustable)
~ -999 km, automatic decrease according to the
increase of total millage.
Display unit : 1 km (mile)
Maximum speed record D isplay range : 0 ~360 km (0 ~ 225 mile)
○
Display unit : 1 km (mile)
Average speed recordRecording range : 0 ~ 360km/h (0 ~ 225 MPH)
○
○ Tire circumference Setting range : 300 ~ 2,500 mm
Setting unit : 1 mm
○ Sensitive point Setting range : 1 ~ 20 points
Setting range : 1 point
● Tachometer Display range : 0 ~ 15,000 RPM
Display unit : 10 RPM
○ Display internal <0.5 second
○ Stage tachometer Display range : 0 ~ 10,000 RPM、
0 ~ 12,000 RPM、0 ~ 15000 RPM
Display unit :
0 ~ 10,000 RPM (333 RPM each stage)
0 ~ 12,000 RPM (400 RPM each stage)
0 ~ 15,000 RPM (500 RPM each stage)
Display range : 0 ~ 15,000 RPM
○ MAX RPM record
Display unit : 10 RPM
○ The RPM input signal number setting Setting range : P-0.5,P-1~P-25
○ The RPM input pulse Setting range : lo-Act, Hi-Act
● Total hour meter Display range :0 ~ 99,999.9 hour
Display unit : 0.1 hour
○ Hour meter A、B Display range :0 ~ 9,999.9 hour
Display unit : 0.1 hour
Tachometer
●Display range : 0 ~ 10,000 RPM、0 ~ 12,000 RPM、0 ~ 15,000 RPM
Fuel Level
●Setting range : 100Ω、 250Ω
、270Ω、510Ω、1200Ω、
SWITCH、USER
Low fuel warning
●Setting range : 10 ~ 50%,
when lower than (including)
setting value, fuel level
symbol will blink.
Total engine operating time
●
Display range : 0~99,999.9 hours
● Display unit : 0.1 hour
Engine operating time A,B
● Display range : 0~9,999.9 hours
Adjust
●
Display unit : 0.1 hour
Internal ODO
● Display range : 0 ~ 99,999.9 km (mile) ,
user unadjustable.
● Display unit : 0.1 km (mile)
External ODO
● Setting range : 0 ~ 99,999 km (mile)
●
Setting unit : 1 km (mile)
Fuel level Setting range : 100Ω、 250Ω,、270Ω、510Ω、
●
1200Ω、SWITCH、USER
Setting range : 10 stage display
○ Staged fuel gauge
Warning range : Fuel level warning stage below
(including) setting value, fuel level symbol will blink.
○ Digital fuel gauge Setting range : 0 ~ 100 %
Setting unit : 10 %
○ Low fuel warning Setting range : 10 ~ 50 %, when lower than
(including) setting value, fuel level symbol will blink.
Setting unit : 10%
● Volt meter Display range : DC8.0 V ~ 16.0 V
Display unit : 0.1V
● Clock format Setting range : 12-hrs format, 24-hrs format
○ Clock (hours) Setting range : 0 ~ 23 (24-hrs format),
1 ~ 12 (12-hrs format)
Setting unit : 1 hour
○ Clock (minute) Setting range : 00:59 minutes
Display range : 1 minute
Display range : 0~99999.9 km (mile), user
● Internal ODO
unadjustable
Display unit : 0.1 km (mile)
● External ODO Setting range : 0~99999 km (mile)
Setting unit :1km (mile)
● Backlight color Display range: white
● Effective voltage DC 12 V
● Effective temperature range
-10 ~ +60 °C
● Meter standard JIS D 0203 (S2)
● Meter size 120 x 46 x 20 mm
Around 240 g
● Meter weight
● Indicator light Neutral (green light)
Right indication light (green light)
Water temperature (red light)
Motor oil (red light)
High beam light (blue light)
Left indication light (green light)
Fuel (yellow light)
Engine (yellow light)
NOTE
Any design and specification changes will not be notify.
wh041ba02a(P6-2)
