I M 8 0 5 - 3 4 P 1 - 8 P 2
This option combines the features and potential uses of the IM805-34P1
and the IM805-8P2. The connector pins used for connector P2 are identical
to those used on the IM805-8P2.
This option may be wire-wrapped or plugged for interfacing.
62 IM805 Operating Instructions Revision R032306
0.520
(13.21)
0.800
(20.32)
Applicable Products: IM805-34P1-8P2
Mating Plug: SAMTEC SSW or SSQ or equivalent.

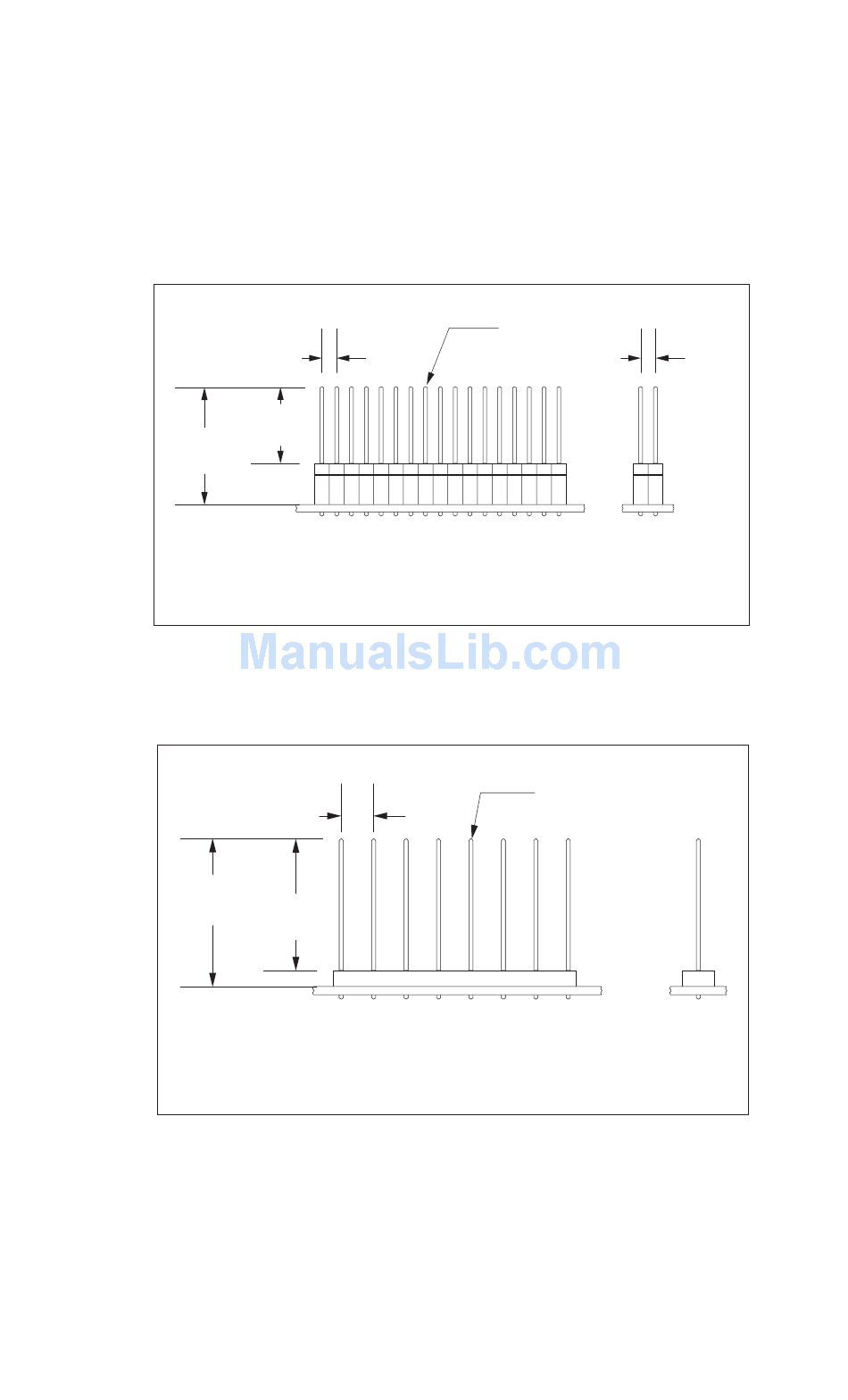

Figure A.7: IM805-34P1-8P2 - Connector P1
0.914
0.811
(23.16)
(20.62)
Applicable Products: IM805-8P2 IM805-34P1-8P2
Mating Plug: MOLEX 10-10-1083 or equivalent.
Figure A.8: IM805-34P1-8P2 - Connector P2
8 X 0.025" )0.64)
Sq. Pin
0.100 Tin Plated Bronze
(2.54)
34 Pin Connector P1
8 X 0.045" )1.14)
0.200
Tin Plated Bronze
(5.08)
Pin Connector P2
8
0.100
(2.54)
Sq. Pin
