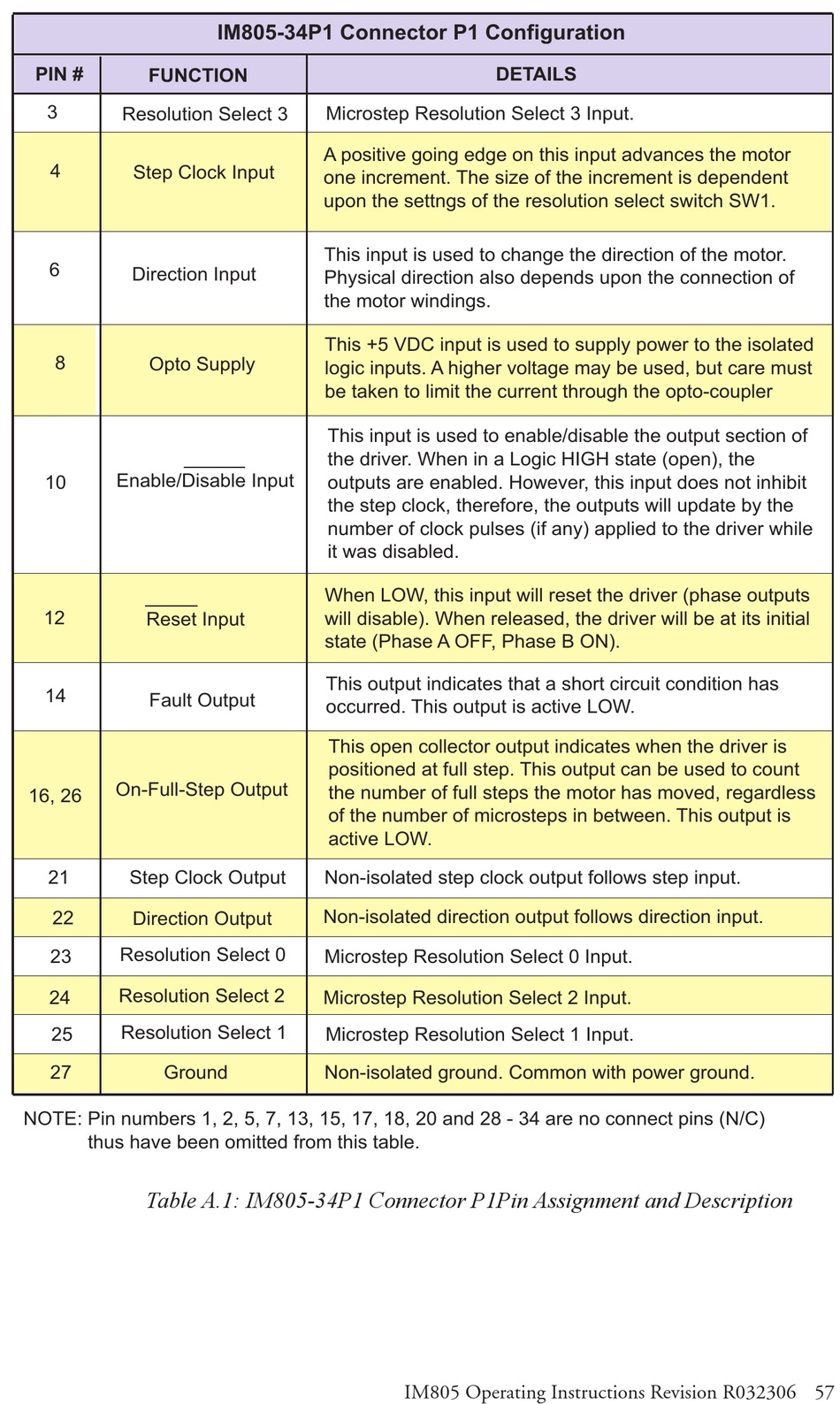

Table A.1: IM805-34P1 Connector P1Pin Assignment and Description

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

IM805 Operating Instructions Revision R032306

57
