S e c t i o n 2
S e c t i o n O v e r v i e w
This section will acquaint you with the dimensional information, pin de-
scription, power, environmental and thermal requirements of the IM805.
It is broken down as follows:
M e c h a n i c a l S p e c i f i c a t i o n s
Shown are the standard 8 position screw terminal set and the Optional 34
Pin Connector for the IM805. Specifications for the 34 Pin Connector are
available in Appendix A: Standard Connection Options, of this document.
Dimensions are in inches, parenthesis dimensions are in millimeters.
0.025
(0.6)
1
18
0.410
(10.4)
34 17
IM805-34P1
8 IM805 Operating Instructions Revision R032306
H a r d w a r e S p e c i f i c a t i o n s

Mechanical Specifications.

n
Electrical Specifications.
n
Thermal Specifications.
n
n Pin Assignment and Description.
3.000 2.710
(68.8)
(76.2)
0.290
(7.4)

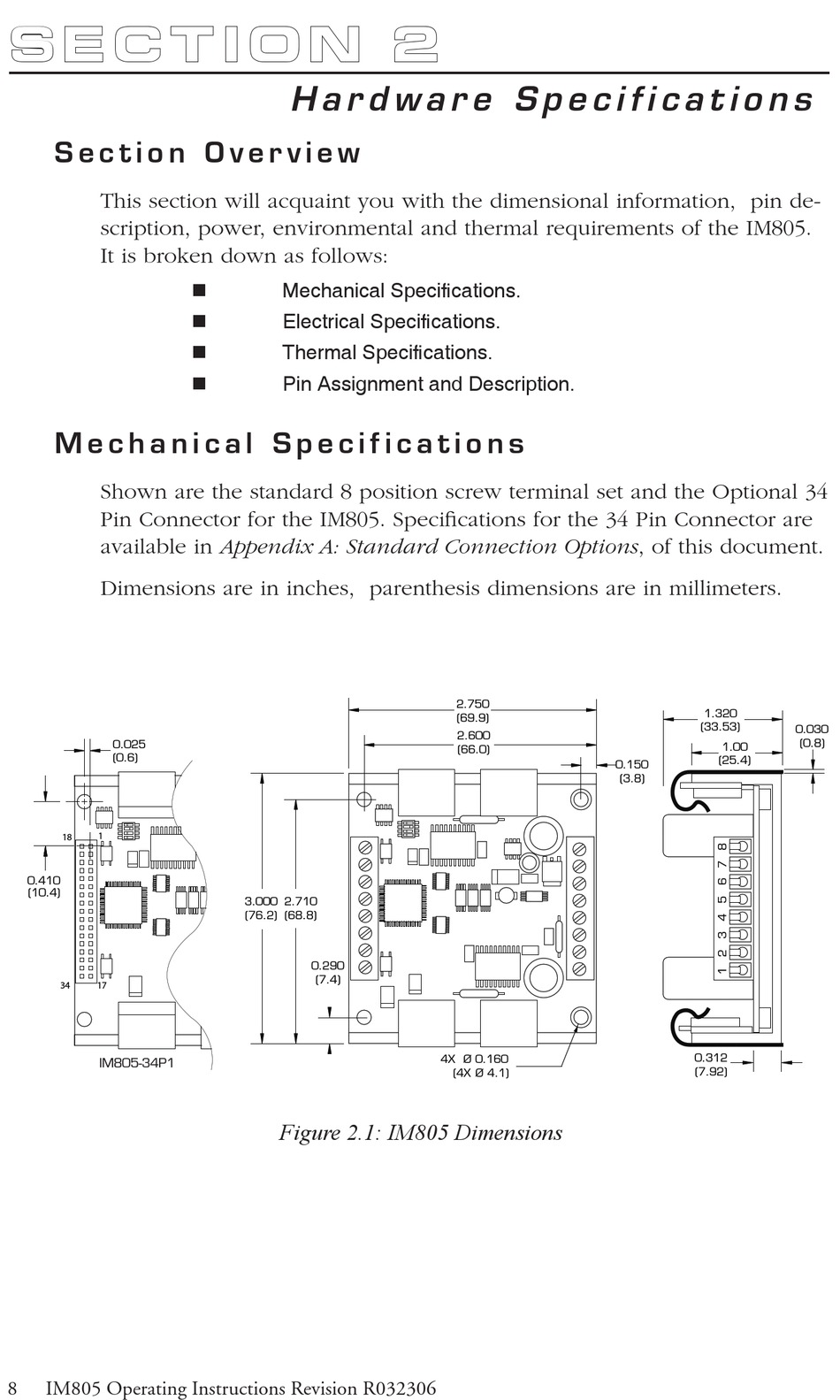

Figure 2.1: IM805 Dimensions
2.750
(69.9)
2.600
(66.0)
4X Ø 0.160
(4X Ø 4.1)
1.320
(33.53)
1.00
(25.4)
0.150
(3.8)
0.312
(7.92)
0.030
(0.8)
