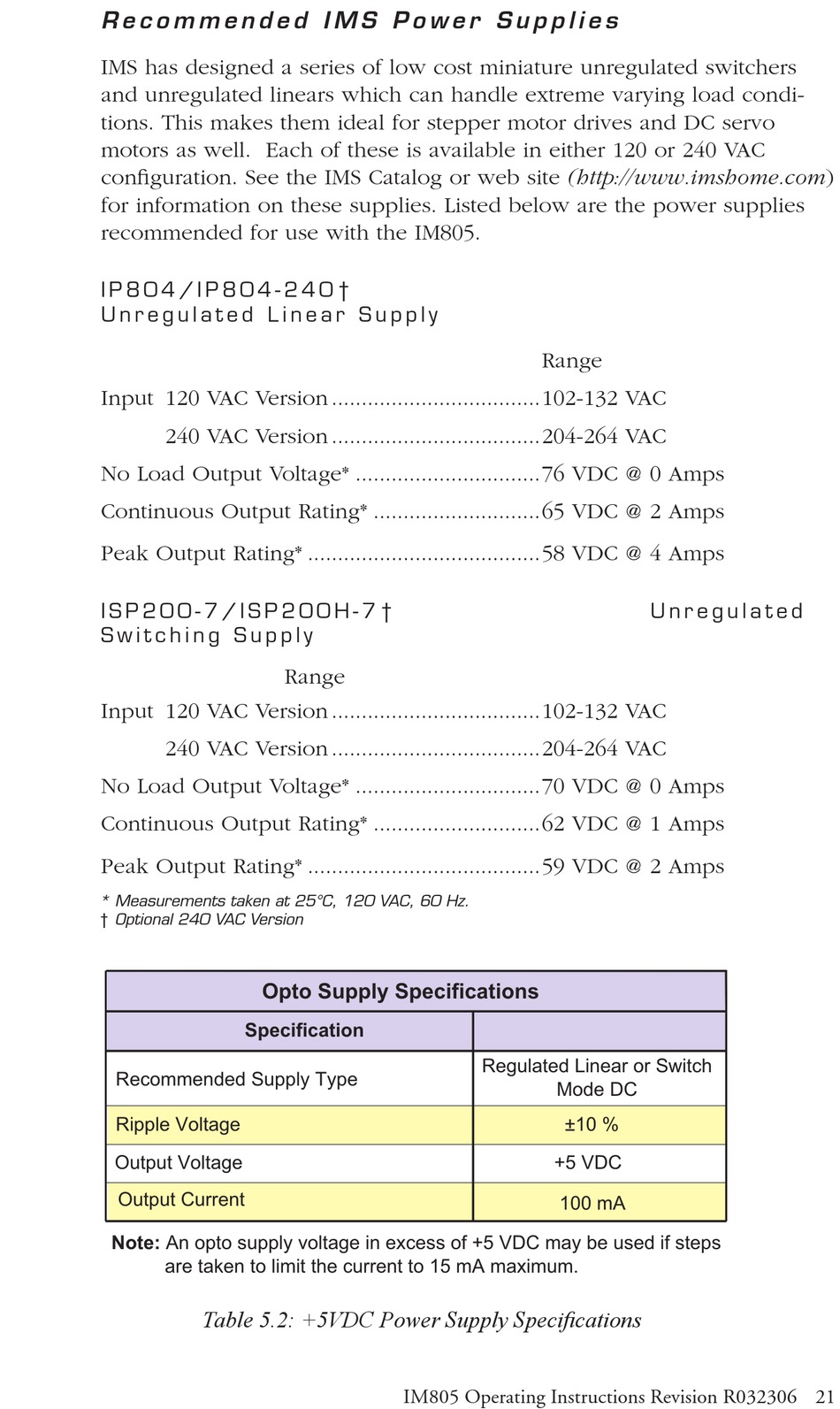

R e c o m m e n d e d I M S P o w e r S u p p l i e s
IMS has designed a series of low cost miniature unregulated switchers
and unregulated linears which can handle extreme varying load condi-
tions. This makes them ideal for stepper motor drives and DC servo
motors as well. Each of these is available in either 120 or 240 VAC
configuration. See the IMS Catalog or web site (http://www.imshome.com)
for information on these supplies. Listed below are the power supplies
recommended for use with the IM805.
I P 8 0 4 / I P 8 0 4 - 2 4 0 †
U n r e g u l a t e d L i n e a r S u p p l y
Input 120 VAC Version ...................................102-132 VAC
240 VAC Version ...................................204-264 VAC
No Load Output Voltage* ...............................76 VDC @ 0 Amps
Continuous Output Rating* ............................65 VDC @ 2 Amps
Peak Output Rating* .......................................58 VDC @ 4 Amps
I S P 2 0 0 - 7 / I S P 2 0 0 H - 7 †
S w i t c h i n g S u p p l y
Input 120 VAC Version ...................................102-132 VAC
240 VAC Version ...................................204-264 VAC
No Load Output Voltage* ...............................70 VDC @ 0 Amps
Continuous Output Rating* ............................62 VDC @ 1 Amps
Peak Output Rating* .......................................59 VDC @ 2 Amps
* Measurements taken at 25°C, 120 VAC, 60 Hz.
† Optional 240 VAC Version
�������������
�����������������������
��������������
��������������
��������������
����������������������������������������������������������������������
����������������������������������������������������������
Table 5.2: +5VDC Power Supply Specifications
