Im805-8P2; Figure A.5 Im805-8P2 - Connector P1; Figure A.6 Im805-8P2 - Connector P2 - Intelligent Motion Systems IM805 Operating Instructions Manual

I M 8 0 5 - 8 P 2
This connector option uses 8 - 0.045 square pins at the P2 connector loca-
tion. The P1 connector location uses 8 -0.025 square pins.
This connector style is advantageous in a scenario where the user desires to
wire wrap the IM805 directly into a system interface or use a receptacle to
make the connections. Figures A.5 and A.6 show the pin dimensions.
0.200
(5.08)
0.720
0.820
(18.29)
(20.83)
8 Pin Connector Pins - P1
Applicable Products:

IM805-8P2

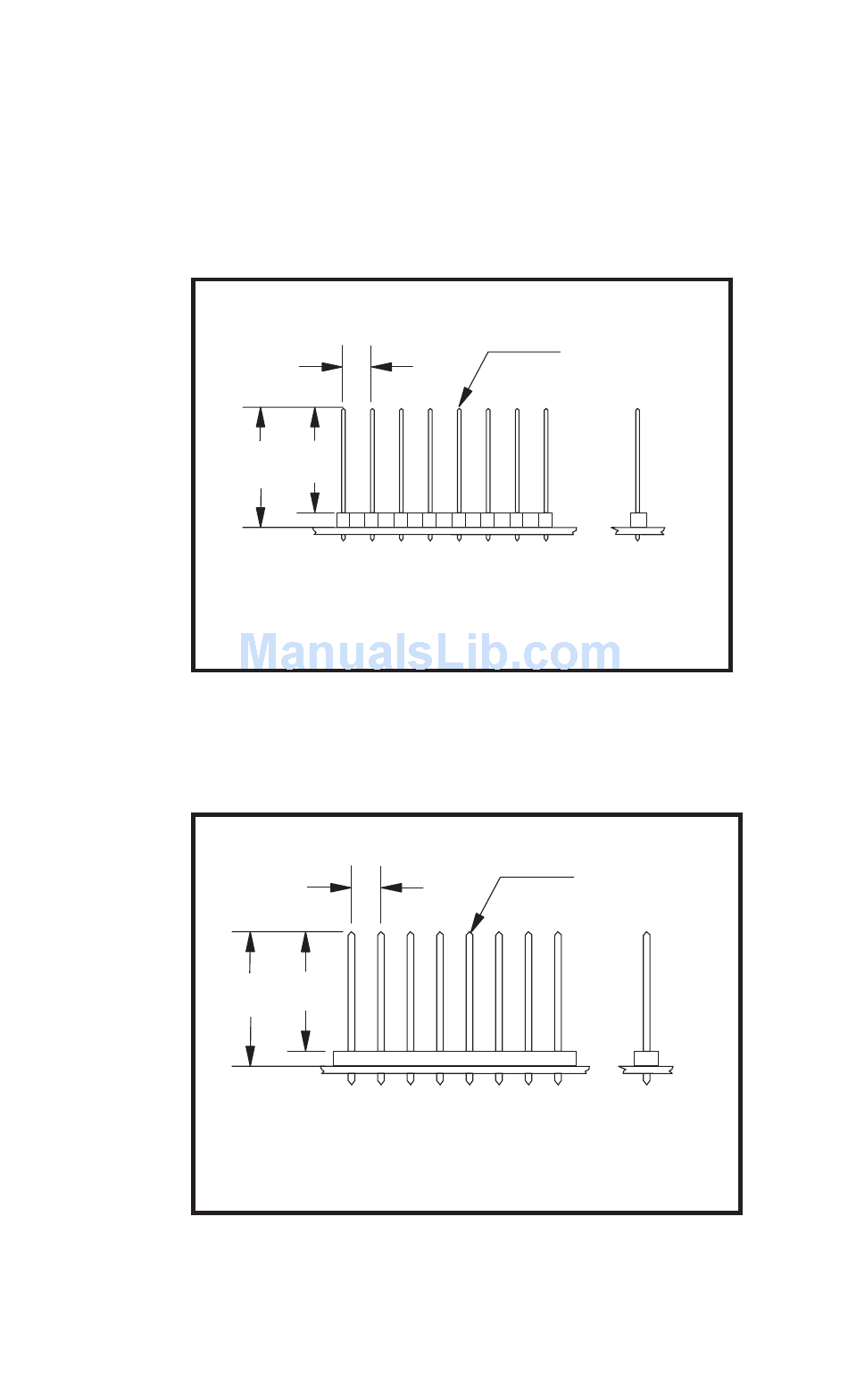

Figure A.5: IM805-8P2 - Connector P1
0.200
(5.08)
0.811
0.914
(20.62)
(23.16)
8 Pin Connector Pins - P2
Applicable Products:
IM805-8P2
IM805-34P1-8P2
Figure A.6: IM805-8P2 - Connector P2
IM805 Operating Instructions Revision R032306
8X 0.025 (0.64)
Sq. Post
Tin Plated Bronze
8X 0.045 (1.14)
Sq. Post
Tin Plated Bronze
61
