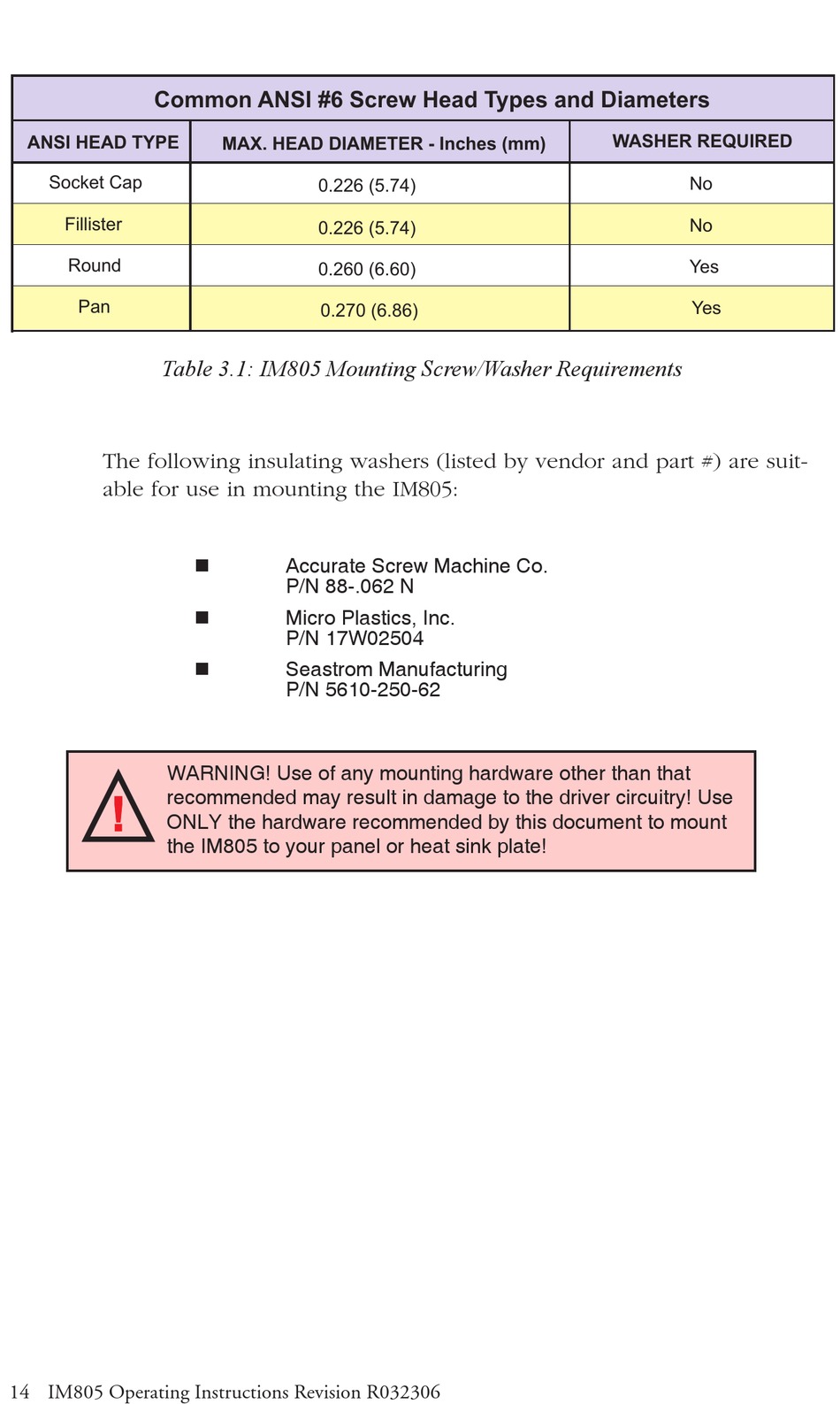

Table 3.1: IM805 Mounting Screw/Washer Requirements
The following insulating washers (listed by vendor and part #) are suit-
able for use in mounting the IM805:
WARNING! Use of any mounting hardware other than that
recommended may result in damage to the driver circuitry! Use
ONLY the hardware recommended by this document to mount
the IM805 to your panel or heat sink plate!
14 IM805 Operating Instructions Revision R032306
��������������������������������
������������
������������
������������
������������
Accurate Screw Machine Co.
n
P/N 88-.062 N
Micro Plastics, Inc.
n
P/N 17W02504
Seastrom Manufacturing
n
P/N 5610-250-62
���������������
��
��
���
���
