Figure 7.9 Lynx Interface - Intelligent Motion Systems IM805 Operating Instructions Manual

I M 8 0 5 I n t e r f a c e d t o a n I M S LY N X
The LYNX Controller is a powerful, machine control solution which can
be used to meet the system design needs of a wide range of applications.
It has the capability of controlling up to three axes sequentially when
used with the optional high speed differential I/O module. For more in-
formation on the LYNX, browse the IMS web site at www.imshome.com.

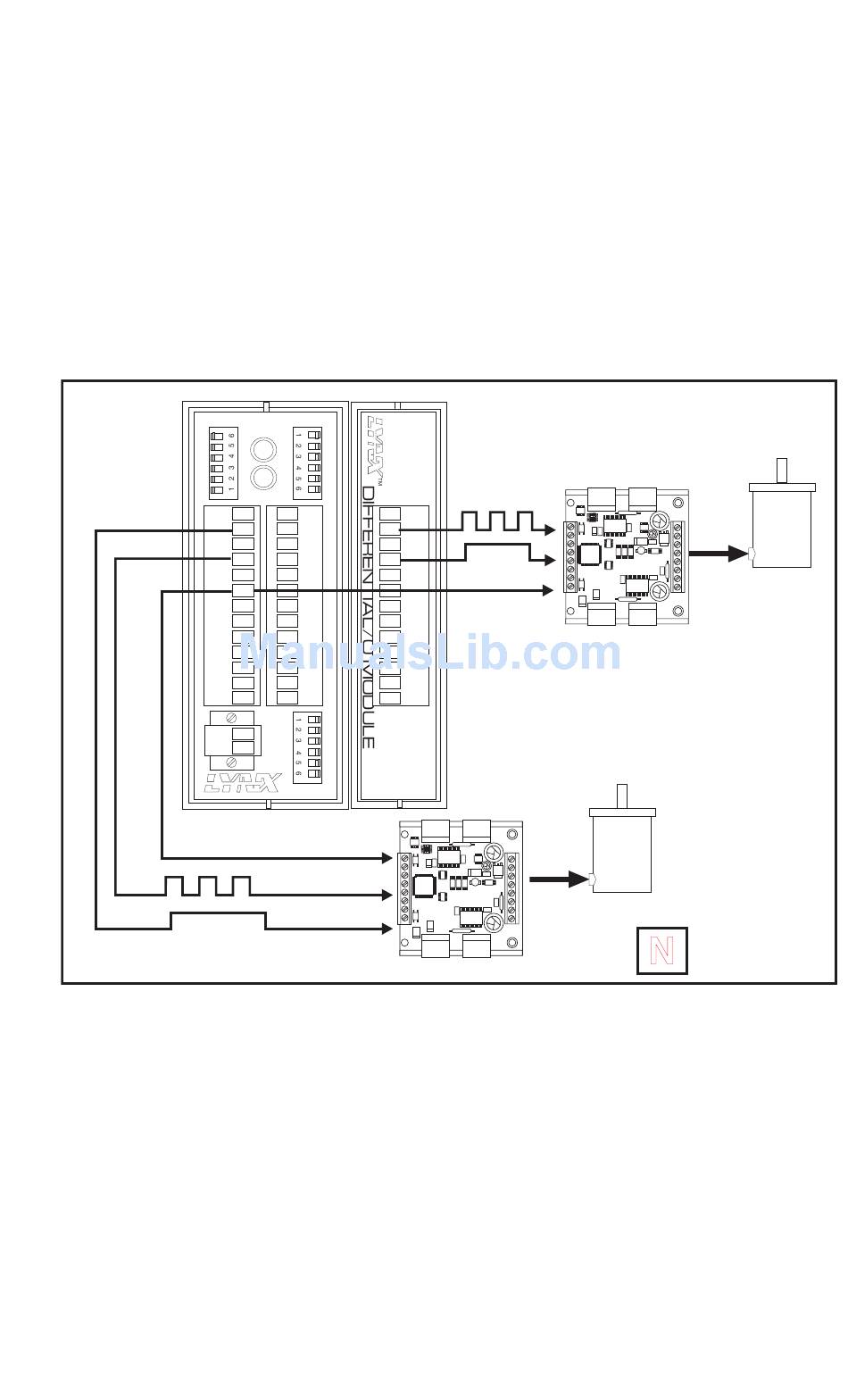

Figure 7.9 shows a LYNX Control Module and Differential I/O Module
providing step clock, direction and optocoupler supply voltage to two
IM805 drivers. The LYNX isolated I/O may also be used to control the
enable and reset inputs, the MSEL inputs (IM805-34P1) and receive feed-
back from the fault and fullstep outputs.
INTELLIGENT MOTION SYSTEMS, INC.
FAULT
A0
A1
A2
PT
HI
UG
POWER
SCLK+
DIR-
DIR+
DIR+
SCK-
SCK+
+5VDC
GND
OUTPUT
+5V
RX-
RX+
TX-
TX+
CGND
RX
TX
GND
V+
+5VDC Opto Supply
21
22
23
24
25
26
21 13-
22 13+
23 14-
24 14+
25 15-
26 15+
31 16-
32 16+
33 17-
34 17+
35 18-
36
18+
IG
GD
31
32
33
34
35
36
TM
Step Clock Input
Direction Input
IM805 Driver
Figure 7.9: LYNX Interface
IM805 Operating Instructions Revision R032306
HSIO DRIVE #2
13+ Step Clock
14+ Direction
+5VDC
Opto Supply
IM805 Drive #2
Stepping Motor
Stepping
Motor #2
Power Connections
N
Not Shown For
Simplification
