I M 8 0 5 - 3 4 P 1
The IM805-34P1 connector configuration replaces the 8 position screw
terminal at connector location P1 with a 34 pin header. Connector P2 is
still an 8 position screw terminal.
There are 2 key features that are added with this connector option:
P i n C o n f i g u r a t i o n / D e s c r i p t i o n
Figure A.2 and Table A.1 show the pin location and description of the 34 pin
header.
56 IM805 Operating Instructions Revision R032306
1] Microstep resolution select inputs (MSEL) on P1 allow for
remote control of the output resolution.
2] Step/Direction outputs follow the step/direction inputs, allow-
ing for multiple drives to be cascaded.
0.230
(5.84)
0.510
(12.95)
34 Pin Connector Pins - P1

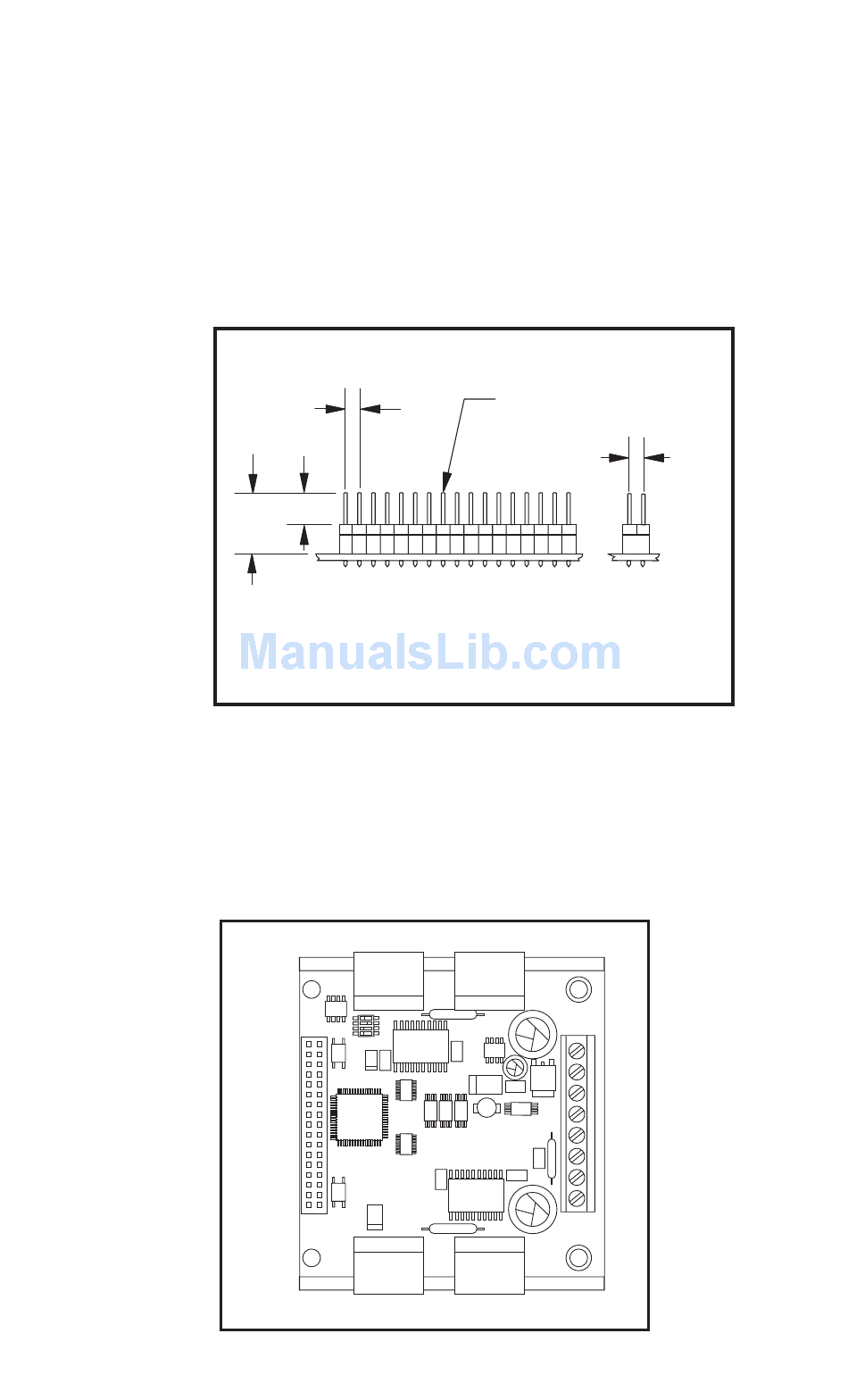

Figure A.1: IM805-34P1 Connector P1 Mechanical Drawing
Pin 1
Pin 18
Pin 34
Pin 17

Figure A.2: IM805-34P1Connector P1Pin Locations

8X 0.025 (0.64)
Sq. Post
0.100
Tin Plated Bronze
(2.54)
Applicable Products:

IM805-34P1

0.100
(2.54)
