Schematic Diagram - Analog Devices Linear 2815A Demo Manual

DEMO MANUAL DC2815A

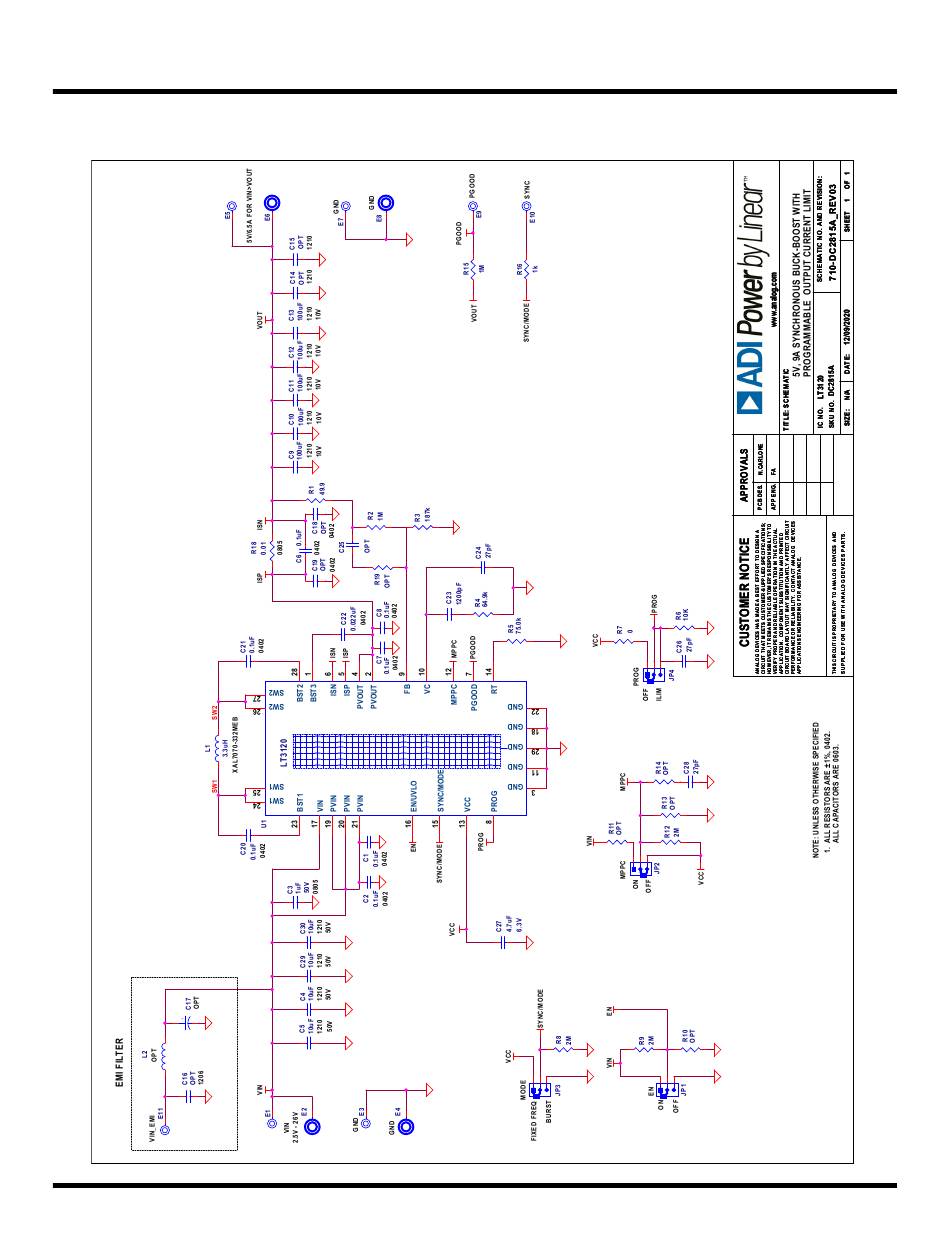

SCHEMATIC DIAGRAM

Rev. 0
7
