Schematic Diagram - Analog Devices Linear Technology DC2483A-B Demo Manual

DEMO MANUAL
DC2483A-A/DC2483A-B

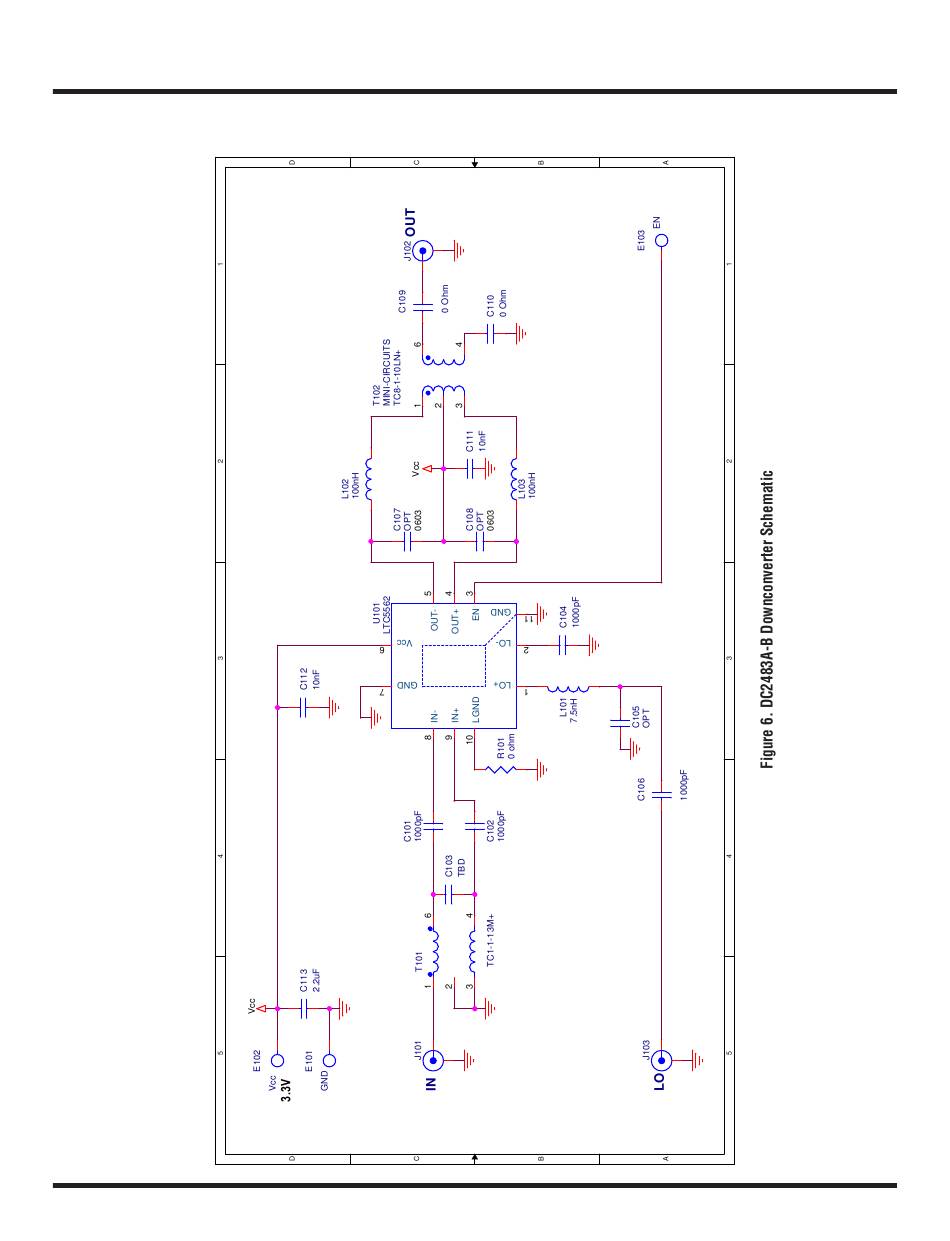

SCHEMATIC DIAGRAM

dc2483aabf
