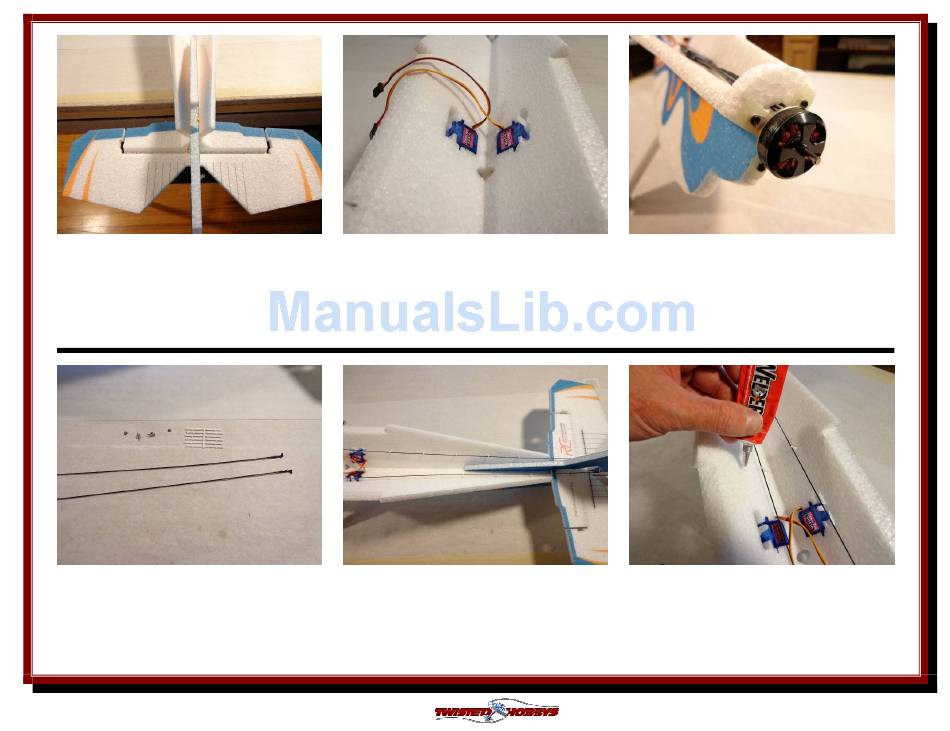

Make sure that the rudder and fin are
straight to each other and allow to dry.
Tail Control Rods and Guides are next.
If you did the snap links with Welders
at the beginning of the build and it has
been 24hrs, they are ready to use. Also
locate the plastic guides.
Rev: 2013.09.15.v004a
Install the tail servos. Body of the servo
should be flush with the outside of the
fuselage and servo arms centered and
attached.
Find and test fit all the guides into their
respective hole in the fuselage. If you
can't see the holes at first, use a
flashlight or hole the fuselage up to a
light source.
Intall the motor.
Once all the locations have been
determined, remove the guide one by
one, squirt a little Welders into the hole
and re-install the guide. Once all the
guides are glued, use the control rod to
help align them all
