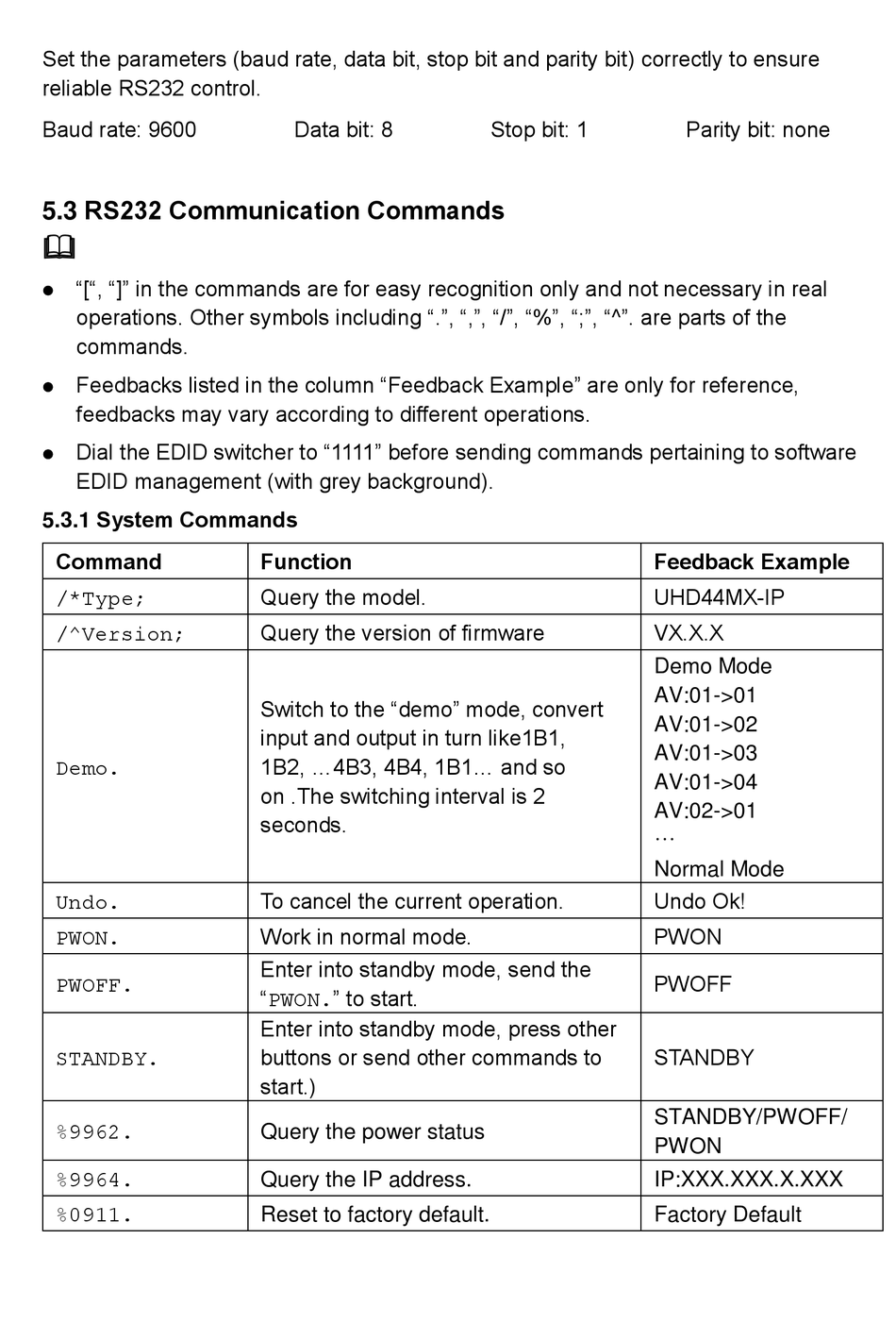

Rs232 Communication Commands; System Commands - Octava UHD44MX-IP Install Manual

Set the parameters (baud rate, data bit, stop bit and parity bit) correctly to ensure
reliable RS232 control.
Baud rate: 9600

5.3 RS232 Communication Commands


"[", "]" in the commands are for easy recognition only and not necessary in real
⚫
operations. Other symbols including ".", ",", "/", "%", ";", "^". are parts of the
commands.
Feedbacks listed in the column "Feedback Example" are only for reference,
⚫
feedbacks may vary according to different operations.
Dial the EDID switcher to "1111" before sending commands pertaining to software
⚫
EDID management (with grey background).

5.3.1 System Commands

Command
/*Type;
/^Version;
Demo.
Undo.
PWON.
PWOFF.
STANDBY.
%9962.
%9964.
%0911.
Data bit: 8
Function
Query the model.
Query the version of firmware
Switch to the "demo" mode, convert
input and output in turn like1B1,
1B2, ...4B3, 4B4, 1B1... and so
on .The switching interval is 2
seconds.
To cancel the current operation.
Work in normal mode.
Enter into standby mode, send the
"PWON." to start.
Enter into standby mode, press other
buttons or send other commands to
start.)
Query the power status
Query the IP address.
Reset to factory default.
Stop bit: 1
Feedback Example
UHD44MX-IP
VX.X.X
Demo Mode
AV:01->01
AV:01->02
AV:01->03
AV:01->04
AV:02->01
...
Normal Mode
Undo Ok!
PWON
PWOFF
STANDBY
STANDBY/PWOFF/
PWON
IP:XXX.XXX.X.XXX
Factory Default
Parity bit: none
