- Page 1 MVPS-UHD42VC 4x2 4K Multi-View Seamless Presentation Matrix Switcher with USB 3.0 FHD Video Capture Function User Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS rev: 211011 Made in Taiwan INTRODUCTION ........................1 FEATURES ..........................1 PACKAGE CONTENTS ......................2 SPECIFICATIONS ......................... 3 PANEL DESCRIPTIONS ......................4 CONNECTION DIAGRAM ...................... 5 OPERATION APPROACH ..................... 6 WARRANTY ......................... 31... -
Page 3: Introduction
INTRODUCTION The MVPS-UHD42VC 4x2 4K Multi-View Seamless Presentation Matrix Switcher with USB 3.0 FHD Video Capture Function provides the most flexible and cost effective solution in the market to route ultra-high definition video source from any of the four UHD HDMI sources to the remote display at the same time. -
Page 4: Package Contents
Works on multiple operating system platforms (Windows 7/8.1/10, Mac and Linux OS) Compatible with most 3 party software such as OBS Studio and AMCap Supports USB 3.0 (MJPG/YUY2) and USB 2.0 (MJPG) PACKAGE CONTENTS 1x MVPS-UHD42VC 1x DC 12V 1x Installation software CD ... -
Page 5: Specifications
SPECIFICATIONS Model Name MVPS-UHD42VC Technical Role of usage Multi-View Seamless Presentation Matrix Switcher Background picture update HDMI compliance HDMI 2.0a HDCP compliance HDCP 2.2 / 1.4 HDMI 600MHz [18Gbps] Video bandwidth Up to 4K2K@60 (4:4:4 8bits) Output Video Support Video support(USB) -
Page 6: Panel Descriptions

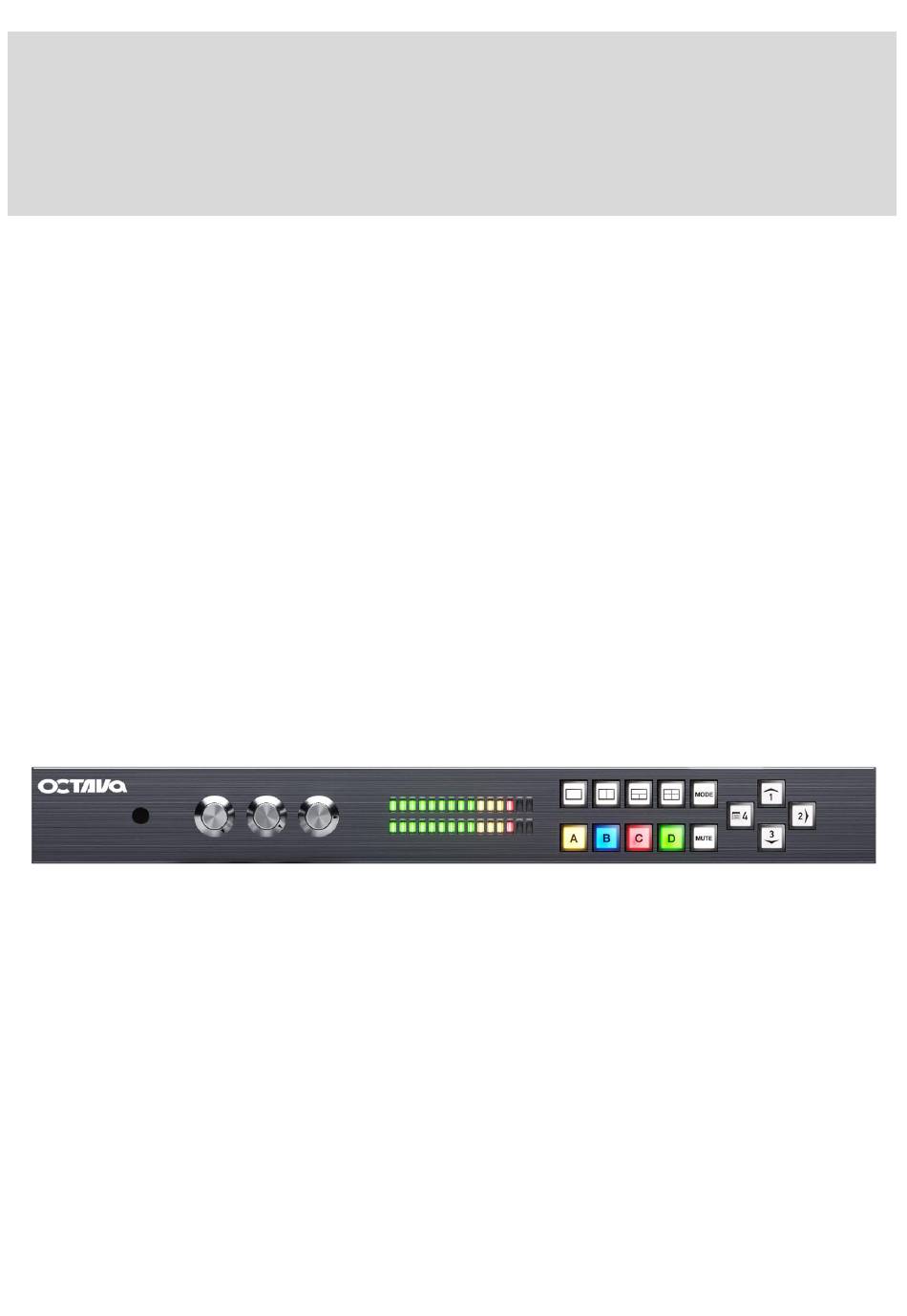

Operation temperature 0~40°C [32~104°F] Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] PANEL DESCRIPTIONS 1. IR SENSOR: IR sensor for receiving the IR commands from IR remote 2. LINE IN Volume Knob: to adjust the line in sound level 3. -
Page 7: Connection Diagram
secondary output) 25. HDMI LOOPOUT: Connect to a HDMI display 26. +12V DC: 12V DC power jack 27. Power switch: Power On/Off CONNECTION DIAGRAM... -
Page 8: Operation Approach
OPERATION APPROACH Method A: Front Panel Control 1. Line In Volume Knob To adjust the line in sound level 2. HDMI In Volume Knob To adjust the HDMI in sound level 3. Primary Volume Knob To adjust the line in and HDMI in sound level together 4. - Page 9 7. Video Mode Switched Button To switch extend mode or mirror mode (1) Extend mode: the windows on primary and secondary output are different. The extend mode function must be on dual-view, triple-view and quad-view layout mode. On dual-view mode: press “MODE” button to enter extend mode. Select one of windows A-B to show on secondary output and then press “MODE”...
- Page 10 status, the button LED will blink red light. Method B: IR Remote Control Button Function POWER Power on/off the device LOCK Lock/unlock the device MUTE Turn off the audio Turn on/off border/label Border QUAD Fast switch to quad-view mode TRIPLE Fast switch to triple-view mode DUAL Fast switch to dual-view mode...
- Page 11 Method C: Software Control through RS-232 / Ethernet port 1. System Requirement (1) OS information: MS Win XP/7/8/10 (2) Baud rates: 115200 (3) Software size: 10 MB (4) Minimum RAM requirement: 256MB 2. Control interface When clicking on the executable file, the following dialog will pop-up (under Microsoft Windows 7, please run as administrator) RS-232 serial Mode: Use RS-232 to connect the port on device and computer.
- Page 12 Control Interface 1. Connection Status: Show the connect information and status. If users use RS-232 serial Mode to connect device, the graph is . In contrast, the graph of Ethernet is . In addition, if users would link to change the control method, uses can click on the button to change.
- Page 13 2. Output Settings In this section, users can set up the coordinate for inputs, the source of window A~D, output resolution, layout setting (PAP or full screen) and switch mode. (1) Source Selection For each display window, you can assign arbitrary video source here. (2) Quick Selection We provide 19 default modes and 4 switching effects (Seamless, Fade in/out, Dissolve, Wipe) for user to select.
- Page 14 (3) Output Resolution Set the output resolution & color space. (4) Display Panel In the left part of control interface, user can customize the display mode thru control. The different colors of frame represent the different input windows. The information of coordinate shows the position of input source screen.
- Page 15 3. Advanced Setting (1) Label Text In here, users can input the texts to be shown with the video. (2) Sound To set up the audio source of the primary & secondary output and the meter range of front panel. -13-...
- Page 16 (3) Window Label In this function, users can determine if the window’s label/border is turned on or off. (4) Background (This model do NOT support this function) To set up the background of window. We provide 4 empty space for user to upload background pictures.
- Page 17 4. EDID (Extended display identification data) (1) Learn EDID from Default ➢ Select Default EDID ➢ Select Input ➢ Click button to learn default EDID. -15-...
- Page 18 5. Extend Mode Setting (1) Mode Selection To select mirror mode or extend mode -16-...
- Page 19 (2) Window setting On extend mode, users can select windows A-D to show on primary & secondary output. (The extend mode function must be on dual-view, triple-view and quad-view layout mode.) -17-...
- Page 20 6. System Setting (1) Factory Reset ➢ Click button to do factory default reset. ➢ The process of default reset will take about 20 seconds. -18-...
- Page 21 7. Lock/unlock function To lock or unlock front panel & software 8. IP Configure User also can use the WEB to control the device. Firstly, user should click on the button to setup network set. Next, users can setup the Ethernet for the unit as below example shows. After the step of IP configuration, please click the button.
- Page 22 VIDEO STREAMING Create a Video Streaming Users can create video streams on the streaming service platform. The below steps show how to complete the video streaming settings from Twitch and YouTube. Twitch 1. Browse the Twitch website (https://www.twitch.tv/) and log in, then select "Creator Dashboard" from your account drop-down menu at the top right of the screen.
- Page 23 3. Go back to Twitch and select "Channel" from your account drop-down menu. 4. At this point, you will see the player start live streaming. -21-...
- Page 24 YouTube 1. Browse the YouTube website (https://www.youtube.com/) and log in, then lick "Go live" from the "Create" icon menu at the top right of the screen. * If your account is using YouTube for the first time to create a video stream, you need to wait 24 hours to enable the function.
- Page 25 3. You will see "Stream key" from the “STREAM SETTINGS” below. Copy the "Stream key" and paste it into the "Stream Key" field in the OBS, then click "Start Streaming" in the software. * Please refer to steps 4-6 of the OBS software control program. 4.
- Page 26 5. The player on YouTube will start live streaming. -24-...
- Page 27 Stream and record videos with OBS OBS is popular USB capture freeware and has excellent compatibility. Please start with OBS if users are not familiar with USB capture device. Download the software Browse the download page of the OBS official website (https://obsproject.com/download), then select the suitable computer operating system and start downloading.
- Page 28 1. First, find the "Scenes" window, click "+" in the lower left corner, and then enter the name of the scene to create a new scene. 2. Find the "Source" window, click "+" in the lower left corner, and then select "Display Capture" or "Video Capture Device"...
- Page 29 4. Click "Settings" and then select "Stream" to perform streaming settings. Users can choose service providers, including Twitch, YouTube, etc. 5. Paste the stream key provided by the service provider into the "Stream Key" field, then click "Apply" and "OK" after setting. In addition, users can lick "Get Stream Key" at this step to open the service provider website.
- Page 30 7. On the other hand, users can also click "Start Recording" to record videos with OBS. Besides, you can click "Settings" and then select "Output" to set “Recording Path” and “Recording Format”. The procedures the manual demonstrates are based on the interface that each ○...
- Page 31 TROUBLESHOOTING Our USB device has done comprehensive tests before shipment. Most of the incompatibilities we have experienced are not from the USB capture device itself, but from the sophisticated software and hardware combination of PC or laptop. Please follow the following suggestions to see any helps.
- Page 32 USB PIN DEFINITION VBUS SSRX- SSRX+ SSTX- SSRX+ SHELL SHELL Shield -30-...
-
Page 33: Warranty
Also, the technical information contained herein regarding the MVPS-UHD42VC features and specifications is subject to change without further notice. -31-...
