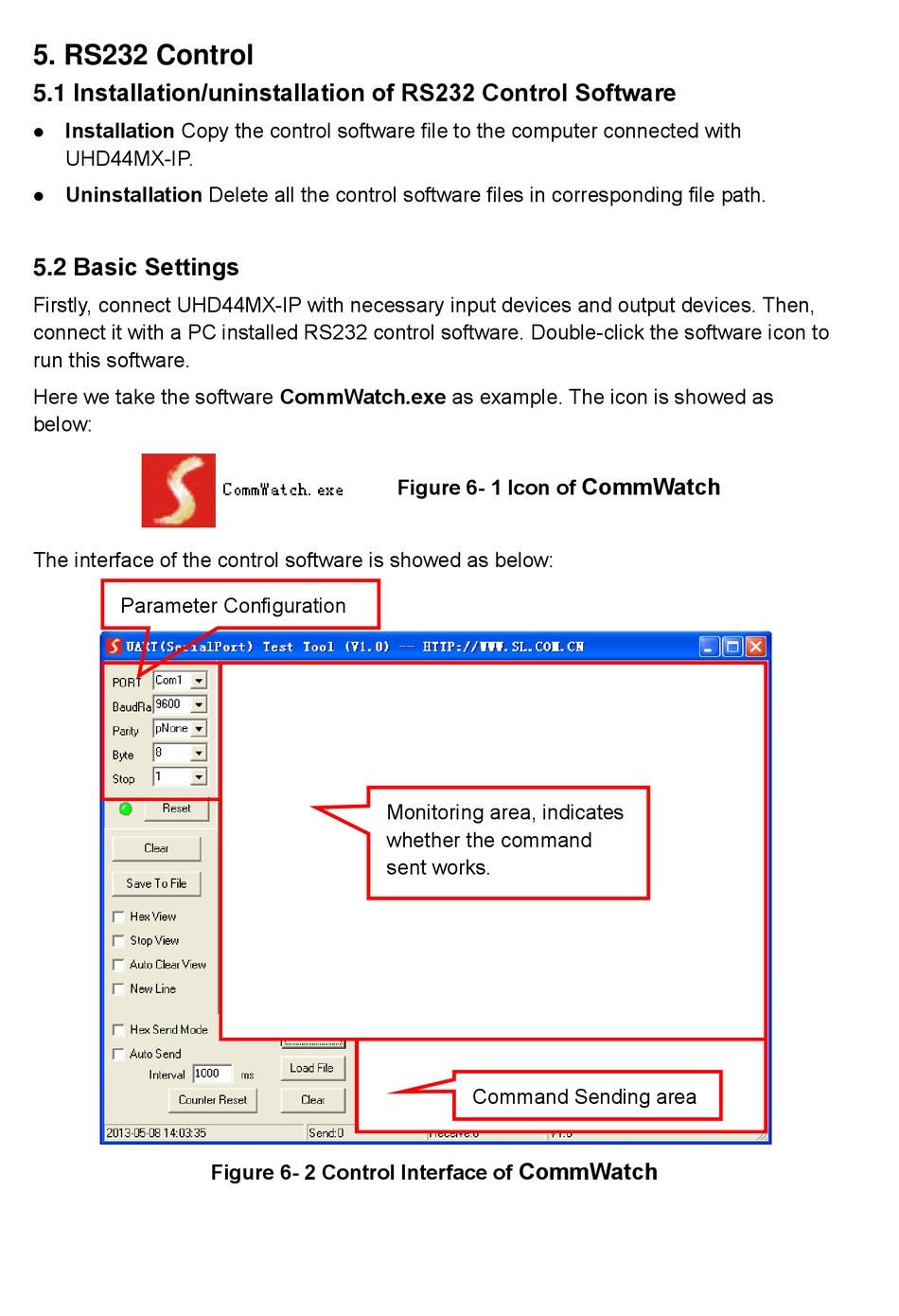

5. RS232 Control
5.1 Installation/uninstallation of RS232 Control Software
Installation Copy the control software file to the computer connected with
⚫
UHD44MX-IP.
Uninstallation Delete all the control software files in corresponding file path.
⚫
5.2 Basic Settings
Firstly, connect UHD44MX-IP with necessary input devices and output devices. Then,
connect it with a PC installed RS232 control software. Double-click the software icon to
run this software.
Here we take the software CommWatch.exe as example. The icon is showed as
below:
The interface of the control software is showed as below:
Parameter Configuration
area
Figure 6- 2 Control Interface of
Figure 6- 1 Icon of
Monitoring area, indicates
whether the command
sent works.
Command Sending area
CommWatch
CommWatch
