Panel Button Control

3.4 I/O connection switching

The front panel features four input selection buttons and four output selection buttons
for switching I/O connection.
To convert one input to an output:
1)
Example: Input 1 to Output 3
→ Press INPUTS 1 + OUTPUTS 3
To convert an input to several outputs:
2)
Example: Convert Input 2 to Output 3 and 4
→ Press INPUTS 2 + OUTPUTS 3 + OUTPUTS 4
NOTE: Indicators of the pressed buttons will blink green for three times if the
conversion is done, then it will be off. If the conversion failed, they will be off
immediately.

3.5 EDID Configuration

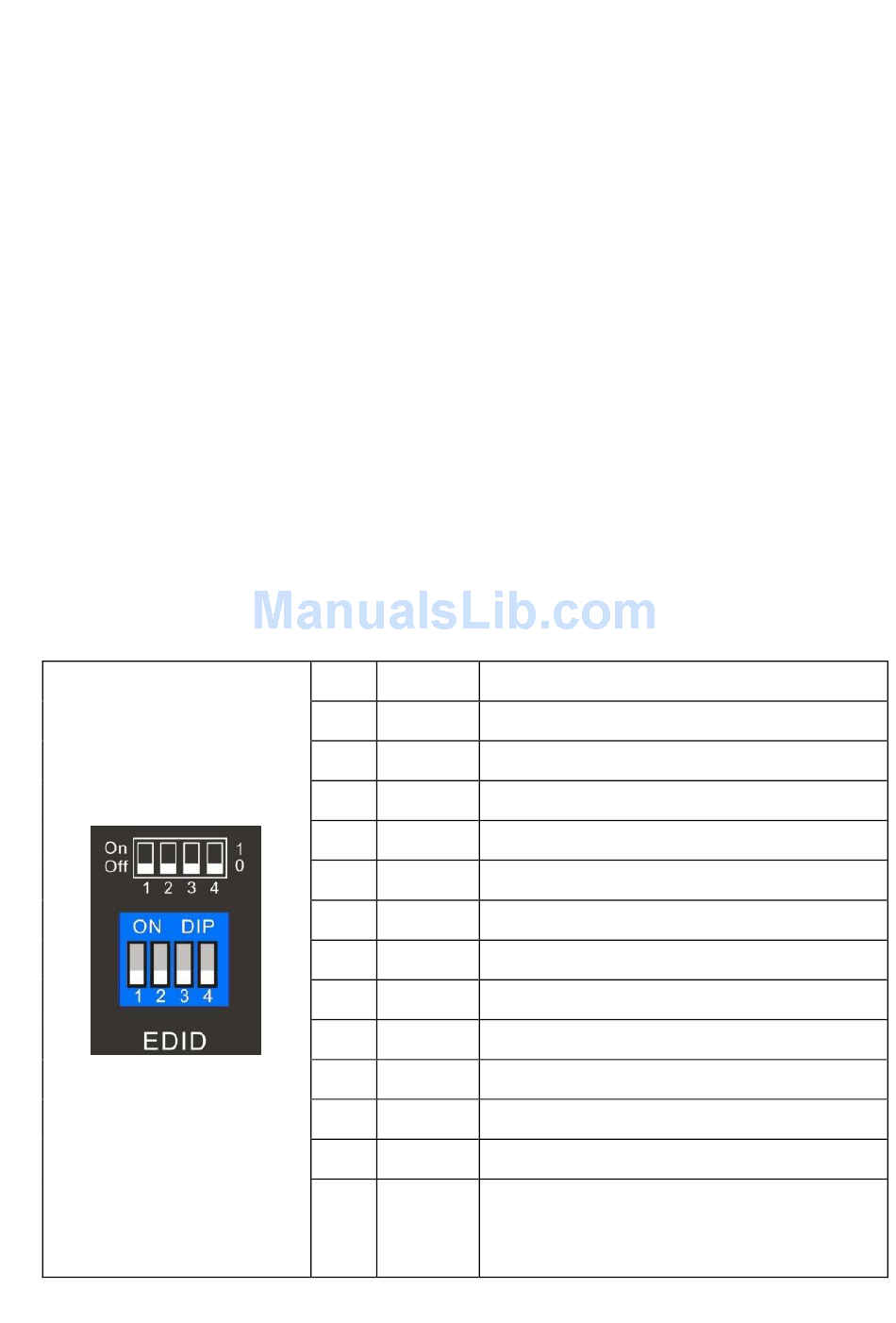

The rear panel boasts a 4-pin EDID DIP switcher to manage EDID. The EDID data and
its corresponding DIP switcher status are shown in the below list.
DIP Switcher
NO. Status EDID
0 0000 Pass-through (default)
1 0001 720P 2D Pass-through CH
2 0010 720P 3D Pass-through CH
3 0011 1080P 2D Pass-through CH
4 0100 1080P 3D Pass-through CH
5 0101 4K@30HZ Pass-through CH
6 0110 4K@30HZ 2.0CH
7 0111 4K@30HZ 7.1CH
8 1000 4K@60HZ 4:2:0 Pass-through CH
9 1001 4K@60HZ 4:2:0 7.1CH
10 1010 4K@60HZ 4:4:4 Pass-through CH
11 1011 4K@60HZ 4:4:4 7.1CH
Enable Software EDID management
1111 mode: RS232 control or Web-based
GUI control
