Summary of Contents for Octava 44UHDMX

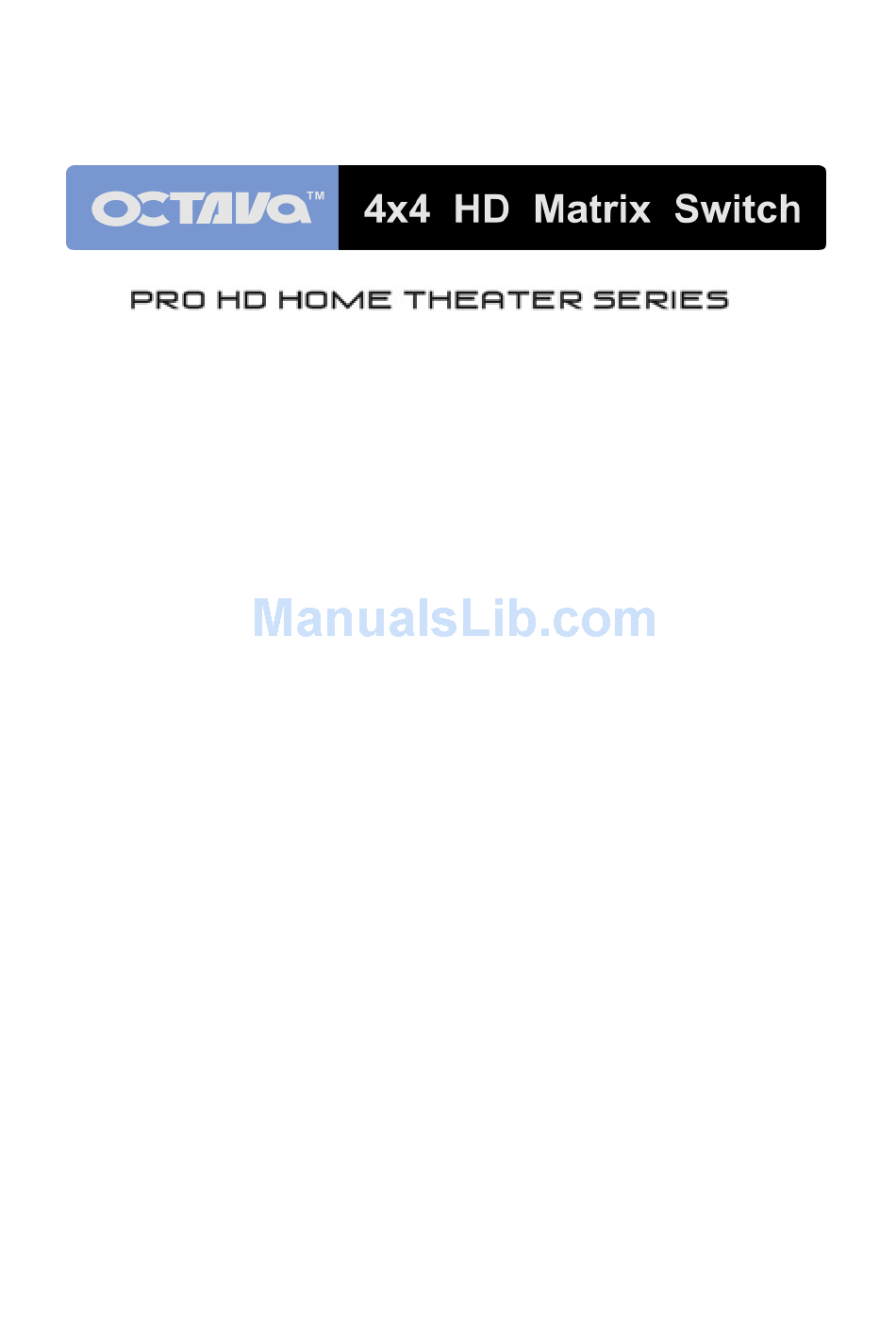

- Page 1 Model: 44UHDMX Installation Guide Rev: A...
-
Page 2: Table Of Contents
Contents Application Diagram............3 Installation............... 3 Description..............4 Features................4 Remote Control Guide ............ 6 RS232 Control Commands ..........7 Port Status Feedback ............9 USB Service Port..............9 EDID Configuration ............10 Changing EDID mode.............11 1 RU Rackmount.............13 Disabling / Enabling IR Remote Control Receiver..13 Warranty................14 Disclaimers..............14 Specifications..............15... -
Page 3: Application Diagram
Application Diagram Installation: Install the 44UHDMX in a well ventilated location. Keep ventilation slots free of obstructions. 1) Connect HD display, A/V receiver to OUTPUTS A-D 2) Connect video sources to INPUTS 1-4 3) Turn On HD display, A/V receiver, video sources. -
Page 4: Description
Matrix switch utilized latest switching technology to provide very Fast Switching. The Pro Series 44UHDMX supports Full 1080P HD . The unit is 1 RU Rack mountable for professional installations. In addition, the 44UHDMX incorporates sophisticated EDID management and an USB service port for customization to your theater system. -
Page 5: Front View
Item Description Power 9V Wired IR input connect Octava supplied IR Receiver Extension cable ( optional) for hidden cabinet installs requiring line of sight for IR control. HDMI Outputs(A-D) connect High Speed HDMI cables to AVR or Display device. HDMI Input (1-4) connect High Speed HDMI cables to Source device. -
Page 6: Remote Control Guide
Remote Control Guide: Turn On Standby/Off Matrix Out A-D select Zone Control Example: Master Remote (Type D) Press C3-switches Output C to Input3 E-H not used Reserved for LED ON/OFF Customization... -
Page 7: Rs232 Control Commands
The Octava 4x4 HD Matrix Switch can be easily integrated with 3 Party control systems via RS232 control. The following shows the control protocol for controlling the 44UHDMX. Controlling the 44UHDMX via RS232 can be done by send a series of commands per the RS-232 protocol Baud Rate... - Page 8 Switching Commands Note: The commands are in HEX. No spaces between HEX codes. Output A Switching Commands HEX CODE Select OUT A to Input port 1 0x02 0x32 0x31 0x31 0x03 Select OUT A to Input port 2 0x02 0x32 0x31 0x32 0x03...
-
Page 9: Port Status Feedback
Port Status Feedback: The matrix can return a 19byte feedback string to provide status. Feedback Status code: byte 1 --> STX 11111111112222222ETX <-- byte 19 Description Byte 1 Start of Text ( header) Byte 2 states which HDMI input OUTPUT A is 1=Input 1 selected, 2 = Input 2 selected, 3=Input 3 selected, 4= Input 4 selected, N = not applicable viewing ( Input 1,2,3 or 4) Byte 3... -
Page 10: Edid Configuration
EDID Configuration: The Matrix is preloaded with 5 common EDID configurations. It is recommended to keep the EDID in the default factory mode 1 for most Applications. Custom EDID mode can be downloaded via USB. Contact us for this feature. To change the EDID settings, please see section “changing EDID settings”... -
Page 11: Changing Edid Mode
Changing EDID mode: It is recommended to keep the EDID in the factory default MODE1. If necessary, you may set to different EDID mode by following these instructions. Step Action Notes Disconnect all sources and display from Matrix Set switch 1,2,3,4,5 to down position as shown Set the EDID to the... - Page 12 Set the Program/ LOCK switch #5 to LOCK Position (UP) Connect all video sources and displays to Matrix and turn ON Re-power the Matrix.
-
Page 13: Ru Rackmount
1 RU Rackmount: The Octava 4x4 HD Matrix Switch can be installed in a 1 RU rack by simply installing the rack mounts included. Disabling Front Panel IR Remote Receiver: To disable the front panel IR remote receiver-insert the plastic plug into the IR jack as shown. -
Page 14: Warranty
If Octava's equipment fails because of defects (1) year from the date of receipt, Octava will at its option, A) repair or replace the equipment, or B) request return of equipment for refund of the price paid for the product provided that the equipment has not been subjected to mechanical, electrical or other abuse or modifications. -
Page 15: Specifications
For Questions and support: Email : info@octavainc.com URL: www.octavainc.com Copyright© 2013 Octava Inc. All rights reserved. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LL.C All trademarks are the sole property of their respective companies...
