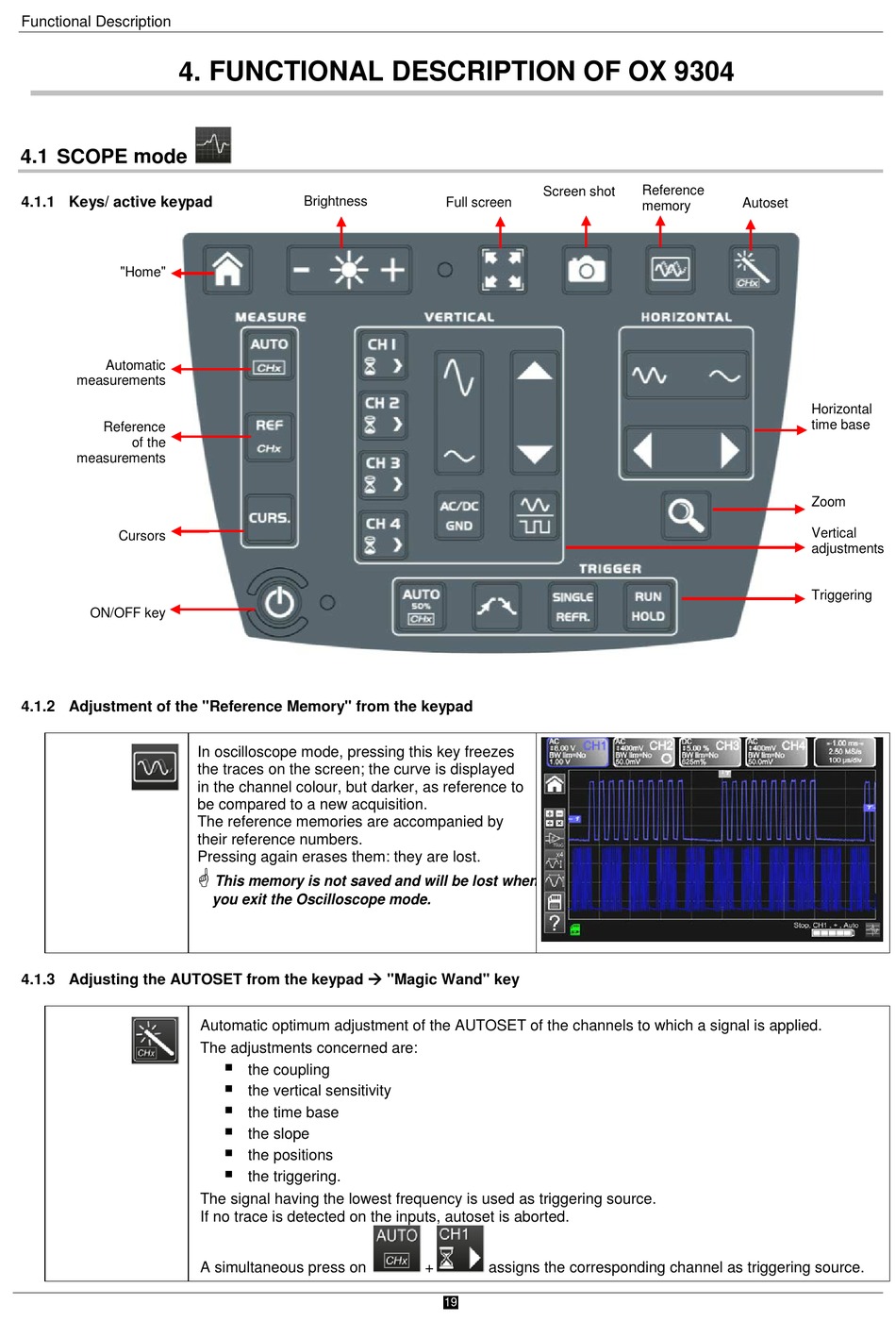

4. FUNCTIONAL DESCRIPTION OF OX 9304

4.1 SCOPE mode

4.1.1 Keys/ active keypad

"Home"
Automatic
measurements
Reference
of the
measurements
Cursors
ON/OFF key

4.1.2 Adjustment of the "Reference Memory" from the keypad

4.1.3 Adjusting the AUTOSET from the keypad  "Magic Wand" key
Brightness
In oscilloscope mode, pressing this key freezes
the traces on the screen; the curve is displayed
in the channel colour, but darker, as reference to
be compared to a new acquisition.
The reference memories are accompanied by
their reference numbers.
Pressing again erases them: they are lost.

This memory is not saved and will be lost when
you exit the Oscilloscope mode.
Automatic optimum adjustment of the AUTOSET of the channels to which a signal is applied.
The adjustments concerned are:

the coupling

the vertical sensitivity

the time base

the slope

the positions

the triggering.
The signal having the lowest frequency is used as triggering source.
If no trace is detected on the inputs, autoset is aborted.
A simultaneous press on
Screen shot
Full screen
+ assigns the corresponding channel as triggering source.
19
Reference
Autoset
memory
Horizontal
time base
Zoom
Vertical
adjustments
Triggering
