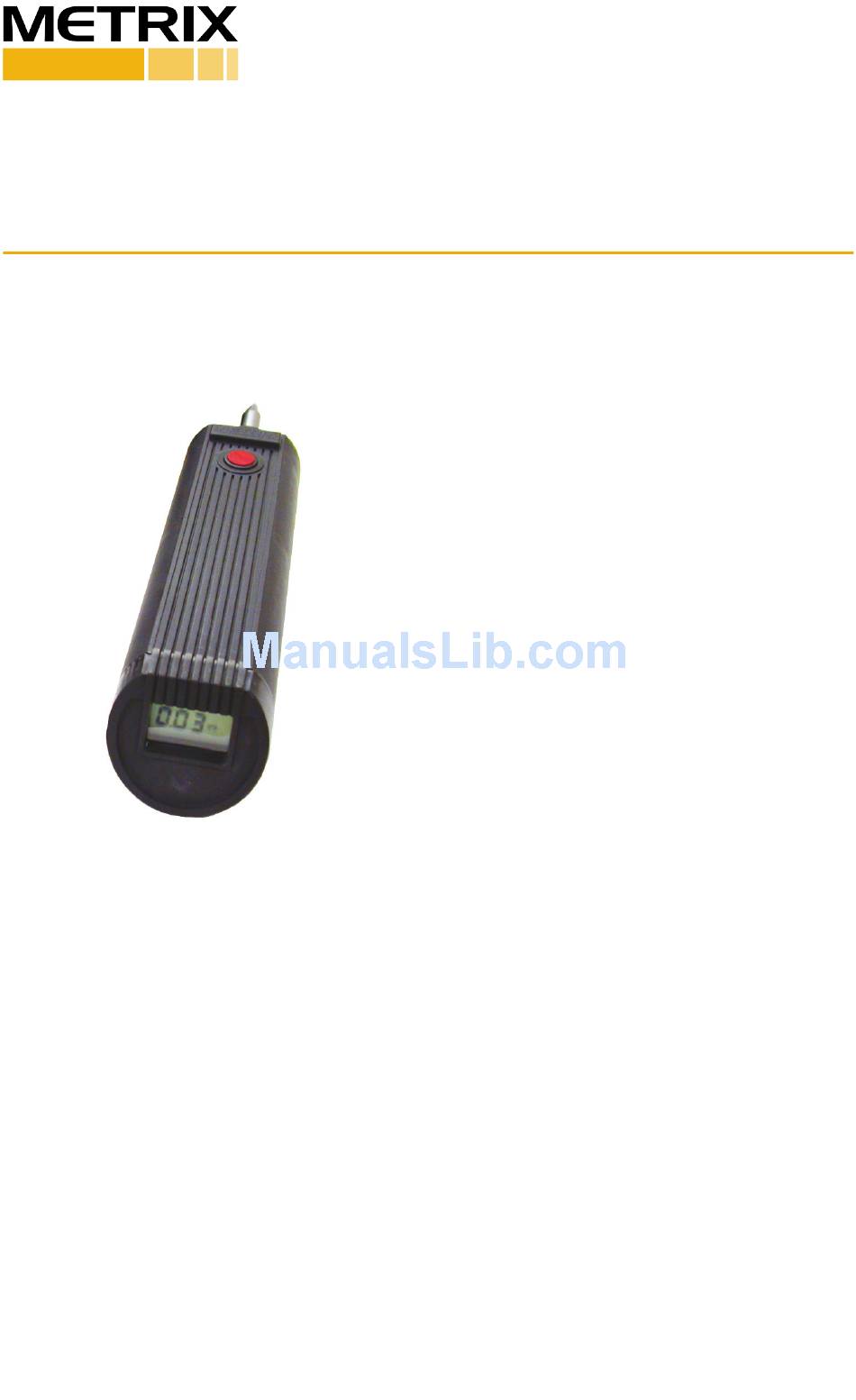

Metrix 5500 Installation Manual

5500 PORTABLE VIBRATION METER
Installation Manual
July 2017
M8224• REV G

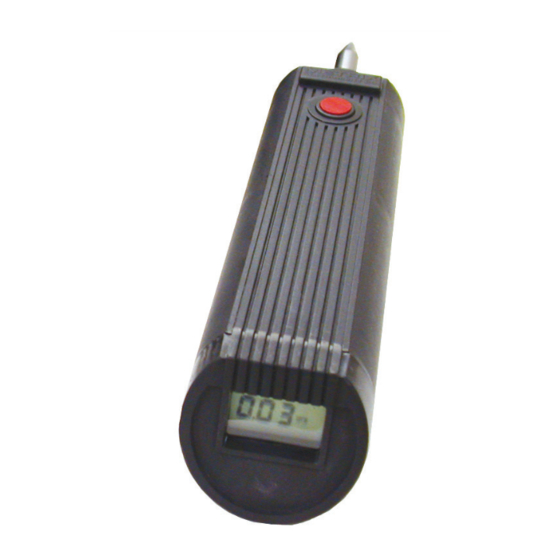

Compact and simple to operate, these
economical meters are ideal for obtaining
spot measurements of machine vibration.
Momentarily pressing the red pushbutton
activates the meter. A vibration reading is
then obtained by simply holding the probe
tip against the machine and observing the
reading on the LCD indicator. Comparisons
to a severity chart, included in this manual,
indicate the severity condition.
The 5500 provides readings in Velocity.
Pressing and holding the pushbutton will
"freeze" the vibration reading so that the
meter can be removed from the test point
without losing the reading. Releasing the
pushbutton returns the meter to normal op-
eration. The meter automatically turns off
30 seconds after the pushbutton is released.
The 5500 vibration meter is available with
either English or Metric displays.
Power is supplied by a standard 9V battery.
A symbol appears on the LCD indicator
when the battery is low. The instrument
housing is made of high impact polymer.
A Cordura® carrying case with belt loop and
battery are included. Optional accessories
include a 10" probe extension for difficult to
reach areas.
