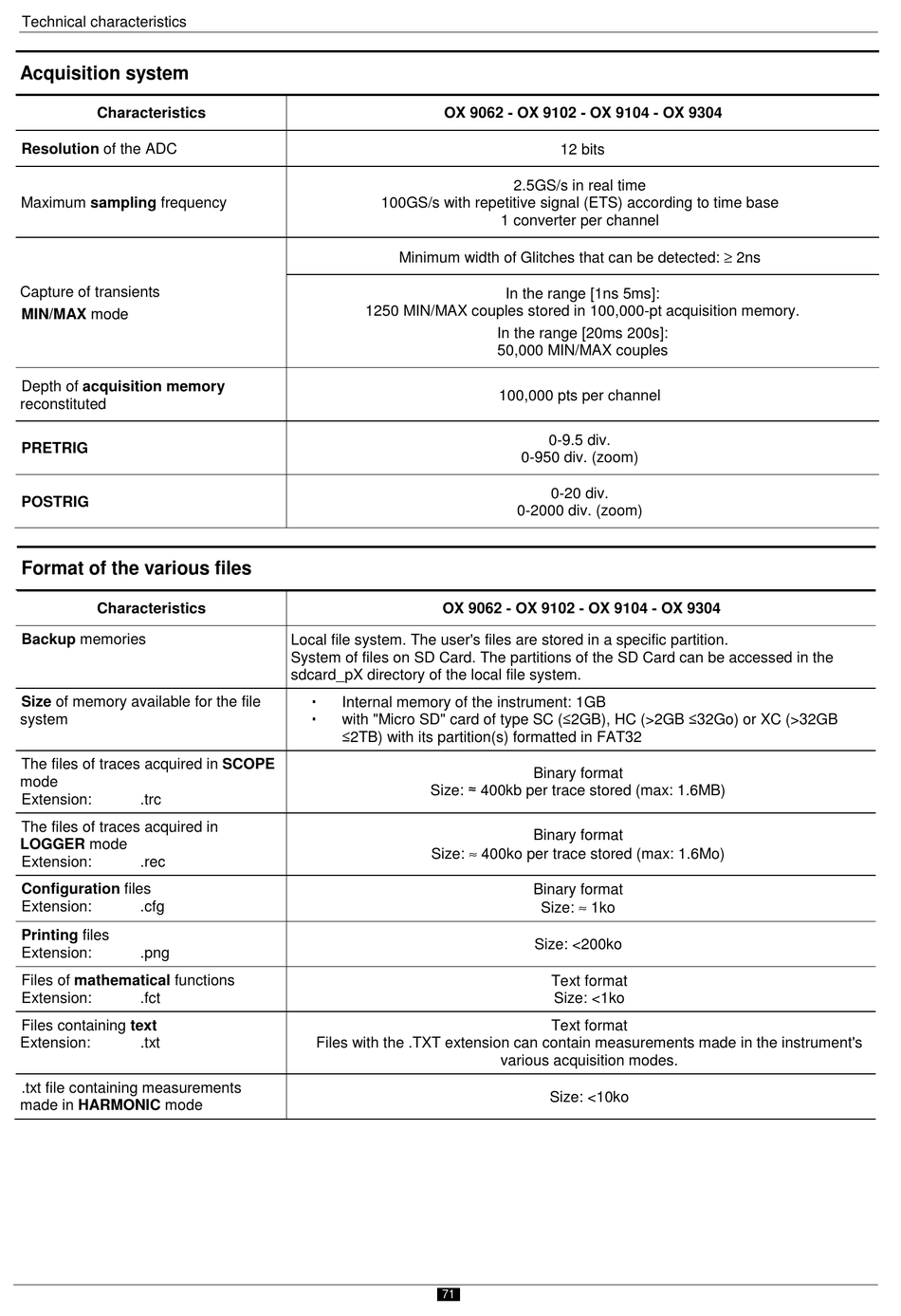

Metrix ScopiX IV User Manual page 71

Technical characteristics
Acquisition system
Characteristics
Resolution of the ADC
Maximum sampling frequency
Capture of transients
MIN/MAX mode
Depth of acquisition memory
reconstituted
PRETRIG
POSTRIG
Format of the various files
Characteristics
Backup memories
Size of memory available for the file
system
The files of traces acquired in SCOPE
mode
Extension: .trc
The files of traces acquired in
LOGGER mode
Extension: .rec
Configuration files
Extension: .cfg
Printing files
Extension: .png
Files of mathematical functions
Extension: .fct
Files containing text
Extension: .txt
.txt file containing measurements
made in HARMONIC mode
OX 9062 - OX 9102 - OX 9104 - OX 9304
100GS/s with repetitive signal (ETS) according to time base
Minimum width of Glitches that can be detected: ≥ 2ns
1250 MIN/MAX couples stored in 100,000-pt acquisition memory.
OX 9062 - OX 9102 - OX 9104 - OX 9304
Local file system. The user's files are stored in a specific partition.
System of files on SD Card. The partitions of the SD Card can be accessed in the
sdcard_pX directory of the local file system.

Internal memory of the instrument: 1GB
with "Micro SD" card of type SC (≤2GB), HC (>2GB ≤32Go) or XC (>32GB

≤2TB) with its partition(s) formatted in FAT32
Size: ≈ 400kb per trace stored (max: 1.6MB)
Size: ≈ 400ko per trace stored (max: 1.6Mo)
Files with the .TXT extension can contain measurements made in the instrument's
71
12 bits
2.5GS/s in real time
1 converter per channel
In the range [1ns 5ms]:
In the range [20ms 200s]:
50,000 MIN/MAX couples
100,000 pts per channel
0-9.5 div.
0-950 div. (zoom)
0-20 div.
0-2000 div. (zoom)
Binary format
Binary format
Binary format
Size: ≈ 1ko
Size: <200ko
Text format
Size: <1ko
Text format
various acquisition modes.
Size: <10ko
