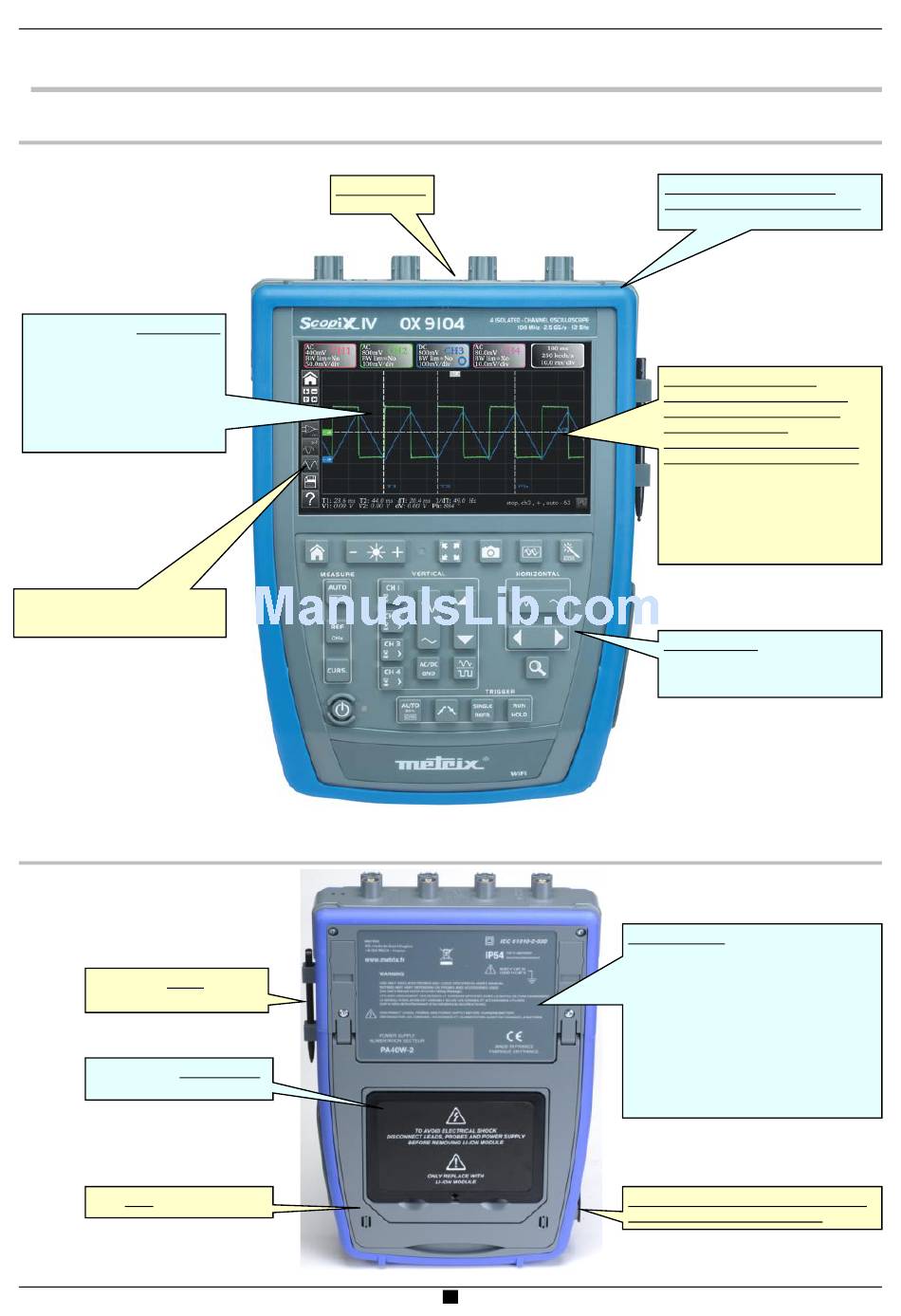

2.1. Front panel

Colour screen
Display of the applied signals,
accompanied by all adjustment
parameters.
The main command
functions can be modified by the
touch slab using the stylus
provided.
Series of pictogrammes: they are
intuitive to make them easy to use.

2.2. Rear panel

Stylus for action
on the touch screen
Power supply
Li-Ion battery pack, 10.8V
Prop in closed position

2. DESCRIPTION OF THE INSTRUMENT

Probix terminal
block
12
Hard enclosure covered with
elastomer, tight to drops of water
falling vertically, IP54
The screen is divided into
functional zones: display of the
zoom at the same time as the
waveform, automatic
measurements and cursors, FFT
function with time-domain signal.
Each channel and its parameters
are identified by an identical colour
on a black ground for better
visibility.
The colours are optimized to
facilitate identifying the channels.
Silicone keypad
30 keys provide direct
access to the main commands.
Safety markings
"Use only the probes and leads specified
in the operating manual.
The insulation level varies according to
the probes and accessories used.
Refer to the operating manual and the
safety information on screen.
Disconnect the leads, the probes, and the
power supply before replacing the
battery."
Four-point connector for connection to a
mains adapter, a battery charger
