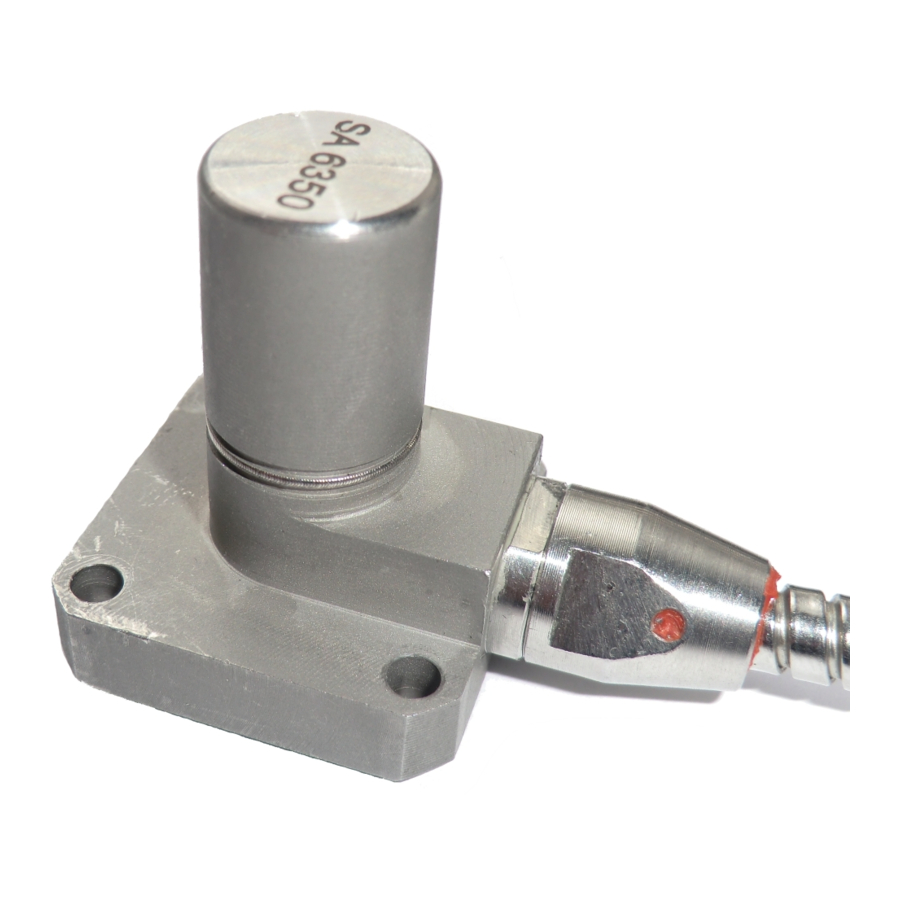

SA6350 HIGH-TEMPERATURE ACCELEROMETER
Installation Manual
0598
OVERVIEW
The Metrix SA6350 is suitable for use in
temperatures up to 325
design separates the charge amplifier/
line driver from the piezo-electric sens-
ing element, using an armored, integral
cable. This allows the sensing element to
be mounted directly on the machine, but
the charge amplifier to be mounted either
3m or 5m away, in a lower-temperature
environment. The charge amplifier is rated
up to 120
C; its mounting location will often
o
expose it to moderately elevated tempera-
tures, but these will normally be well below
the surface temperatures encountered at
the sensing element location, such as a gas
turbine casing. The charge amplifier can
then be connected to standard field wiring
via its 2-pin MIL-style connector or optional
integral shielded cable.
Doc#
M9192 • REV K
C. The sensor's
o
(
2020) Page
November
1 of 4
Advertisement
Table of Contents
Related Manuals for Metrix SA6350
Summary of Contents for Metrix SA6350

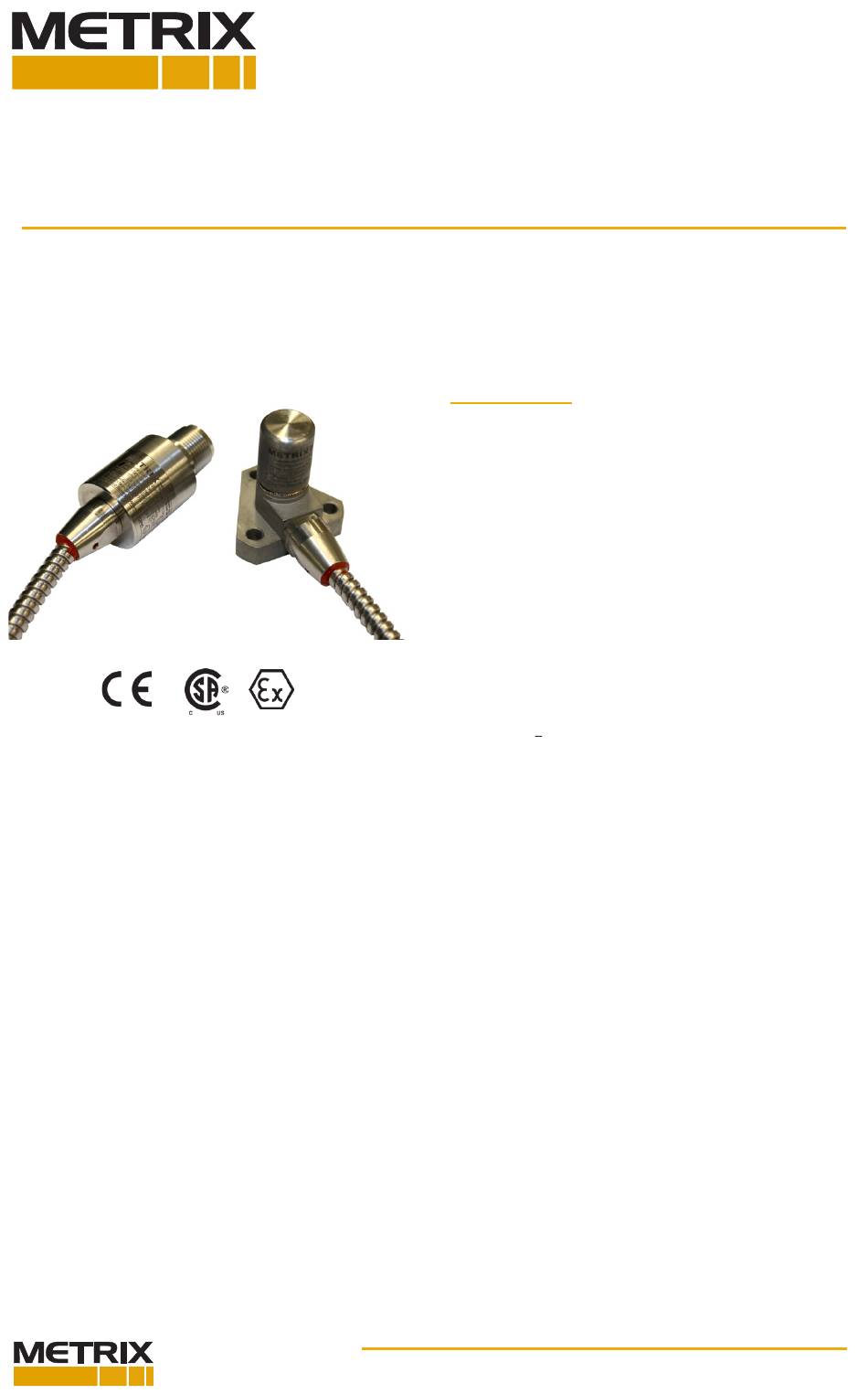

- Page 1 SA6350 HIGH-TEMPERATURE ACCELEROMETER Installation Manual OVERVIEW The Metrix SA6350 is suitable for use in temperatures up to 325 C. The sensor’s design separates the charge amplifier/ line driver from the piezo-electric sens- ing element, using an armored, integral cable. This allows the sensing element to...
- Page 2 Metrix has connector versions of cables (20 AWG) available for use with the Charge Amplifier / Line Driver. Metrix P/N 9193-001 is to be used with the 58°C version of the Charge Ampli- fier / Line Driver and Metrix P/N 9193-002 is to be used with the 120°C version.
- Page 3 A practical limit on the cable length in voltage mode is 300 meters (1000 feet) based on a cable capacitance of 100 pF per meter (30 pF per foot). The cable forms a low pass filter. Long cables will attenuate the higher frequency components of vibration signals more than short cables.
- Page 4 WEEE) should never be disposed of in the public waste stream. The “Crossed-Out Waste Bin” label affixed to this product is a reminder to dispose of this product in accordance with local WEEE regulations. If you have ques- tions about the disposal process, please contact Metrix Customer Services. info@metrixvibration.com www.metrixvibration.com 8824 Fallbrook Dr.
