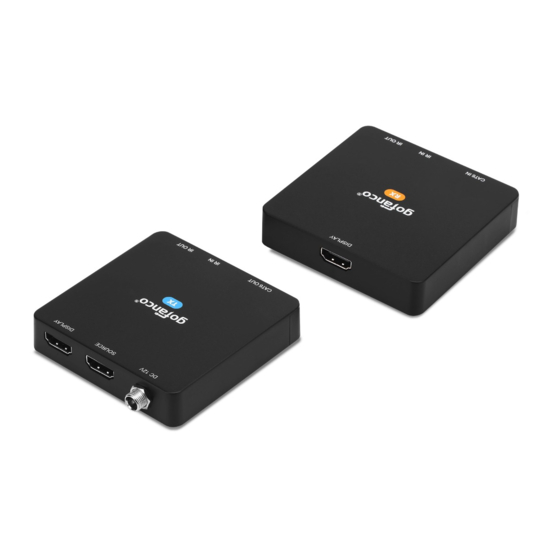

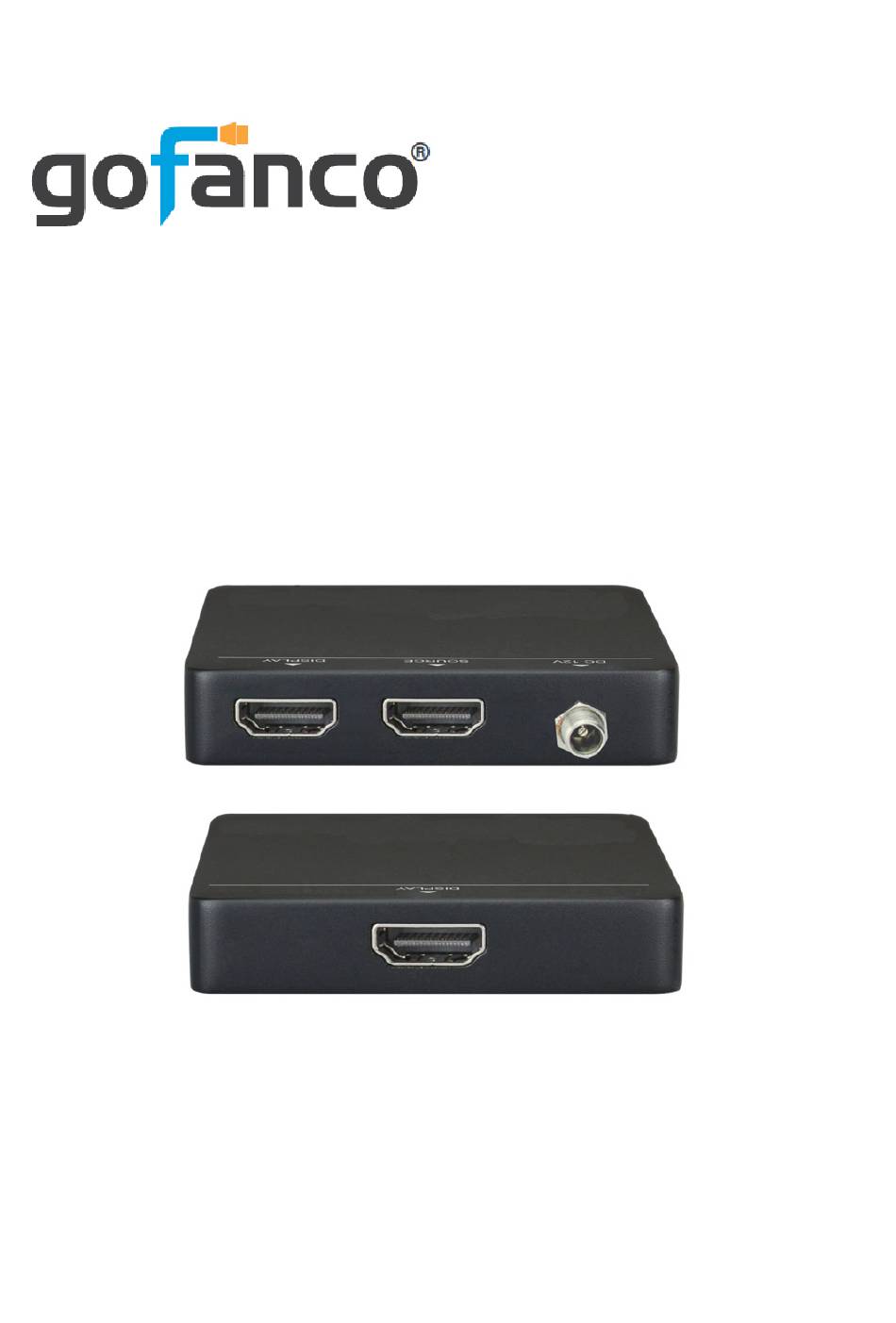

- Page 1 18G HDMI 2.0 CAT Extender with IR - 70m User's Guide P/N: HD20Ext G4-0091A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 • Shut off power and make sure environment is safe before installation • Do not plug the HDMI cables and IR cables in/out when the device is in use to avoid cable damage. Make sure they are plugged into the correct ports •...
- Page 4 • With a 4K source: Supports simultaneous 4K output (TX) & 1080p (RX) via downscaling • The Transmitter's HDMI loopout allows for a local display and monitoring of the extended display Package Contents • 18G HDMI 2.0 CAT Extender with IR - 70m (1 Transmitter &...
- Page 5 Product Layout Transmitter TX Front and Rear Panel RJ45 Out: Connects to the Receiver's RJ45 In using a CAT cable. It supports PoC to power the Receiver. The orange LED illuminates when there is a valid HDMI signal. The Green LED illuminates when power is applied IR In: Connects to the included IR Receiver cable to control the remote display device...
- Page 6 EDID Management: • EDID Bypass: Press the button with a paper clip or other sharp object to learn the EDID from the remote display connected to the Receiver's HDMI Out • EDID Copy Tx/3s: Press and hold the button down for 3 seconds to copy the EDID from the local display connected to the Transmitter's HDMI out •...
- Page 7 Product Layout Continued IR In: Connects to the included IR Receiver cable to control the remote display device from the HDMI source location IR In: Connects to the included IR Blaster cable to control the HDMI source from the remote display device location CAT Cable Wiring We suggest both RJ45 connectors be wired identically using T568B wiring standard for the...
- Page 8 Hardware Installation Power off all devices including your HDMI source and HDMI display(s). Connect your HDMI source device to the Transmitter's HDMI In connector with an HDMI cable (HDMI cable not included). Optional: Connect your HDMI display to the Transmitter's HDMI Out connector with an HDMI cable (HDMI cable not included) for local monitoring of the HDMI signal.
- Page 9 Optional: Connect the IR cable to the Receiver's IR port. This connection is needed only if you need to control your HDMI device from the remote location. See the application diagram on page 9 for proper cable connection. Plug the included power adapter into the Transmitter's power jack, then plug the power adapter into a reliable power source.
- Page 10 Specifications...
- Page 11 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user’s guide. The pictures on the user’s guide are just for reference, and there may be some slight differences with the actual products.
- Page 12 Thank you for choosing gofanco www.gofanco.com...
