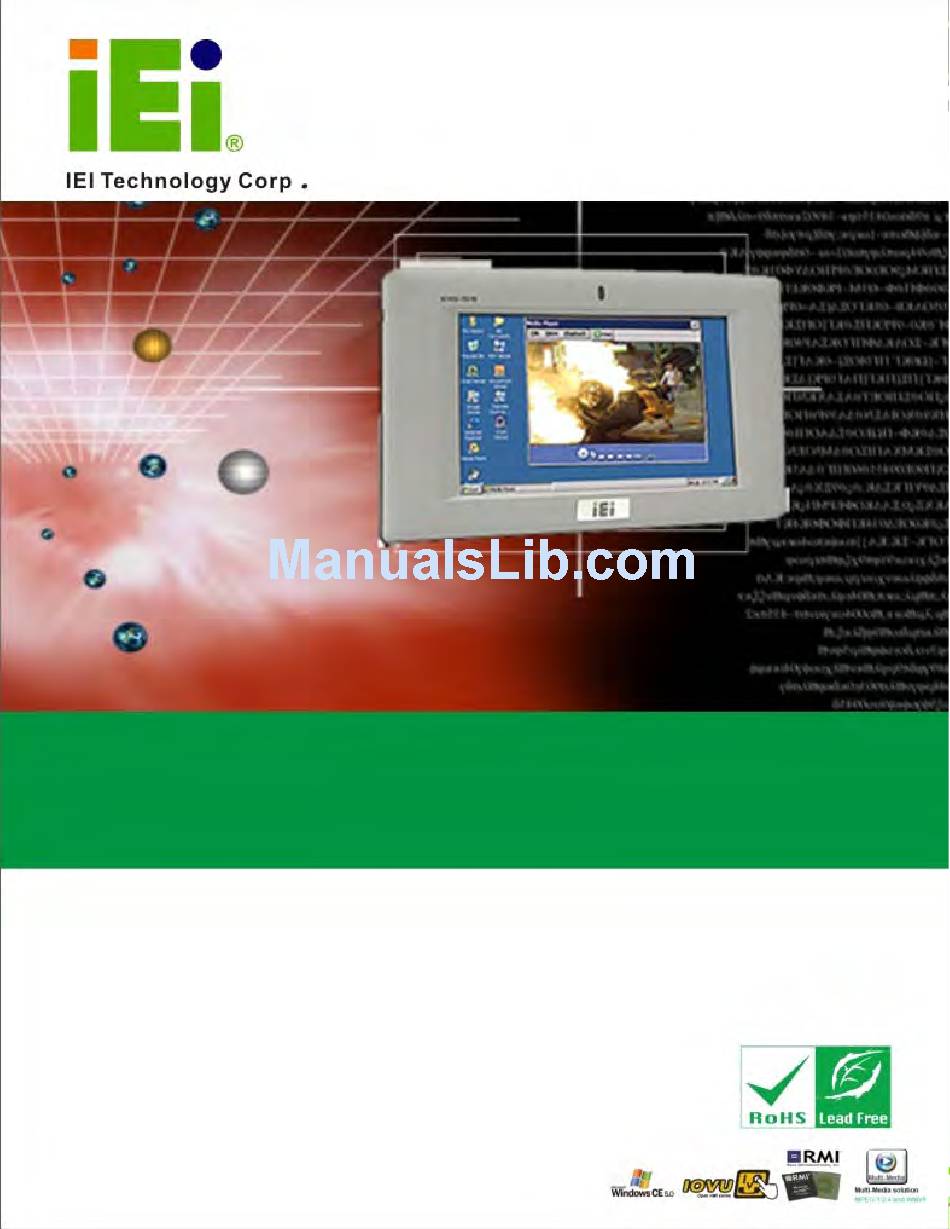

- Page 1 IOVU-751R-CE5/UX-R10 User Manual IOVU-751R-CE5/UX-R10 MODEL: IOVU-751R-CE5/UX-R10 Panel PC with 7" Touch Screen and 500 MHz RMI Alchemy™ Au1250™ media processor, PoE, Ethernet, 2 USB, RS-232, RS-232/422/485, RoHS Compliant, IP 64 Protection User Manual Page i Rev. 1.01 30 July, 2009...
- Page 2 IOVU-751R-CE5/UX-R10 User Manual Revision Date Version Changes 30 July, 2009 1.01 Minor edit 9 January, 2009 1.00 Initial release Page ii...
- Page 3 IOVU-751R-CE5/UX-R10 User Manual Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
-
Page 4: Packing List
IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@iei.com.tw. The items listed below should all be included in the IOVU-751R-CE5/UX-R10 package. 1 x IOVU-751R-CE5/UX-R10 1 x Utility CD including SDK, utilities, and technical documentation... -
Page 5: Table Of Contents
IOVU-751R-CE5/UX-R10 User Manual Table of Contents 1 INTRODUCTION......................1 1.1 IOVU-751R-CE5/UX-R10 O ..............2 VERVIEW 1.1.1 IOVU-751R-CE5/UX-R10 Benefits..............2 1.1.2 IOVU-751R-CE5/UX-R10 Features ..............3 1.1.3 Technical Specifications..................4 1.2 C ......................5 ERTIFICATIONS 2 DETAILED SPECIFICATIONS .................. 6 2.1 M ................... - Page 6 IOVU-751R-CE5/UX-R10 User Manual 4.2 E ........... 21 XTERNAL ERIPHERAL NTERFACE ONNECTORS 4.2.1 DC Power interfaces..................22 4.2.1.1 6V~30V DC Terminal Block ..............22 4.2.1.2 12V DC-In....................23 4.2.2 Serial Interfaces ....................23 4.2.2.1 RS-232 Serial Interface Pinouts..............23 4.2.2.2 RS-232/422/485 Serial Interface Pinouts..........24 4.2.2.3 Connecting the Serial Port ................
- Page 7 Figure 4-9: Wall-mounting Bracket .....................31 Figure 4-10: Chassis Support Screws ..................32 Figure 4-11: Secure the IOVU-751R ....................32 Figure 4-12: IOVU-751R-CE5/UX-R10 Panel Opening (mm) .............34 Figure 4-13: Panel Mounting Clamp ...................34 Figure 4-14: Tighten the Panel Mounting Clamp Screws ............35 Figure 4-15: Arm Mounting Retention Screw Holes..............36 Figure 4-16: Stand Mounting .......................37...
- Page 8 IOVU-751R-CE5/UX-R10 User Manual List of Tables Table 1-1: Technical Specifications....................5 Table 2-1: Technical Specifications....................12 Table 2-2: IOVU-751R-CE5/UX-R10 LCD Specifications ............12 Table 2-3: Touch Panel Specifications ..................13 Table 3-1: Package List Contents ....................17 Table 3-2: Optional Items......................19 Table 4-1: External Interface Connectors...................22 Table 4-2: 9~36V Power Connector Pinouts ................23...
-
Page 9: Introduction
IOVU-751R-CE5/UX-R10 User Manual Chapter Introduction Page 1... -
Page 10: Iovu-751R-Ce5/Ux-R10 Overview
5.0 OS with rich application development support and connectivity to network and I/O devices. The IOVU-751R-CE5/UX-R10 features a low power (less than 0.5 Watts) 500 MHz RMI Alchemy™ Au1250™ media processor with an integrated media acceleration engine (MAE) that supports MPEG 1, MPEG 2, MPEG 4, WMV 9 and DivX video file formats. -
Page 11: Iovu-751R-Ce5/Ux-R10 Features
Utilities and Remote Management Tools make it easy to manage the IOVU centrally and remotely. 1.1.2 IOVU-751R-CE5/UX-R10 Features The IOVU-751R-CE5/UX-R10 features are listed below: Embedded low power (less than 0.5 Watts) 500 MHz RMI Alchemy™ Au1250™ media processor 2 MB Boot Flash... -
Page 12: Technical Specifications
7” color active matrix TFT display 4-wire resistive touch panel 6-30 VDC input Cool grey frame RoHS compliant 1.1.3 Technical Specifications The IOVU-751R-CE5/UX-R10 technical specifications are listed in Table 1-1. SPECIFICATIONS SYSTEM 500 MHz RMI Alchemy™ Au1250™ media processor 2MB boot flash Memory 256 MB DDR2 1 GB Secure Digital®... -
Page 13: Certifications
312.5 mm x 242.6 mm x 65.1 mm (width x length x depth) Ingress Protection IP 64 compliant front panel Table 1-1: Technical Specifications 1.2 Certifications All IOVU-751R-CE5/UX-R10 series models comply with the following international standards: RoHS IP 64 For a more detailed description of these standards, please refer to Appendix A. -
Page 14: Detailed Specifications
IOVU-751R-CE5/UX-R10 User Manual Chapter Detailed Specifications Page 6... -
Page 15: Mechanical Overview
IOVU-751R-CE5/UX-R10 User Manual 2.1 Mechanical Overview 2.1.1 Front Panel The IOVU-751R-CE5/UX-R10 front panel (Figure 2-1) comprises a 7” TFT WVGA 16-bit color touch screen LCD in an ABS+PC plastic frame. Figure 2-1: Front Panel 2.1.2 Connector Panel All external peripheral interface connectors are located on the bottom panel of the IOVU-751R-CE5/UX-R10 . -
Page 16: Physical Dimensions
2 x RJ-45 LAN connectors (one supports PoE) 1 x RS-232 connector 1 x RS-232/422/485 connector 2 x USB connectors 2.1.3 Physical Dimensions The physical dimensions of the IOVU-751R-CE5/UX-R10 are shown in Figure 2-3 and listed below: Front Panel: 226mm (W) x140mm (H) x 15.68mm (D) Cabinet: 213.55mm (W) x 125.27mm (H) x 24mm (D) -
Page 17: Internal Overview
IOVU-751R-CE5/UX-R10 User Manual Figure 2-3: IOVU-751R-CE5/UX-R10 Physical Dimensions (millimeters) 2.2 Internal Overview Internally the IOVU-751R-CE5/UX-R10 has a KAMIO-1252 embedded RISC (reduced instruction set computer) motherboard installed. An onboard Secure Digital card is also preinstalled onto the KAMIO-1252. Some of the specifications for the KAMIO-1252 are listed below. For more detailed information, please refer to the KAMIO-1252 user manual. -
Page 18: Kamio-1252 Peripheral Connectors And Jumpers
IOVU-751R-CE5/UX-R10 User Manual Figure 2-4: KAMIO-1252 Overview [Front View] 2.2.1.1 KAMIO-1252 Peripheral Connectors and Jumpers The KAMIO-1252 has the following internal connectors and jumpers onboard: 1 x Audio connector 1 x Power LED connector 1 x Power switch connector 1 x PIC debug connector... -
Page 19: Kamio-1252 Technical Specifications
IOVU-751R-CE5/UX-R10 User Manual 1 x 10/100-BaseT Ethernet connector 1 x 10/100-BaseT Ethernet connector with PoE capability 1 x 12V DC-in power socket 1 x 6-30V DC-in bare wire terminal block 1 x RS-232 serial port connector 1 x RS-232/422/485 serial port connector 2 x USB port connectors 2.2.1.2 KAMIO-1252 Technical Specifications... -
Page 20: Lcd Specifications
IP64 compliant front panel Table 2-1: Technical Specifications 2.3 LCD Specifications The IOVU-751R-CE5/UX-R10 has a 7” WVGA LCD screen. The LCD screen is attached to an aluminum frame that is IP 64 compliant. The specifications are shown below. Model DATA IMAGE FG0700A2DSSWBG02 Size 7”... -
Page 21: Multimedia Capabilities
Windows CE 5.0 or Linux S/W driver Keypad Table 2-3: Touch Panel Specifications 2.5 Multimedia Capabilities The IOVU-751R-CE5/UX-R10 supports video decode at the following resolutions D1 (PAL, NTSC) Wide VGA (16:9) QVGA W GIF (16:9) The IOVU-751R-CE5/UX-R10 supports the following video formats:... -
Page 22: Power Supply
Whenever you need to remove a part for maintenance or upgrading, switch off the power supply and unplug the power cord first. The IOVU-751R-CE5/UX-R10 has a 12 V DC power input and a 6-30 V DC bare-wire connector on the bottom panel. The IOVU-751R-CE5/UX-R10 also supports Power over Ethernet (PoE) through one of its LAN ports. -
Page 23: Unpacking
IOVU-751R-CE5/UX-R10 User Manual Chapter Unpacking Page 15... -
Page 24: Anti-Static Precautions
IOVU-751R-CE5/UX-R10 and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the IOVU-751R-CE5/UX-R10. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the IOVU-751R-CE5/UX-R10 or any other electrical component is handled, the following anti-static precautions are strictly adhered to. -
Page 25: Unpacking Checklist
If some of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the IOVU-751R-CE5/UX-R10 from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@iei.com.tw. -
Page 26: Optional Items
IOVU-751R-CE5/UX-R10 User Manual 3.4 Optional Items Part Number Description Image ALFPK-08 Panel mount kit AFLWK-07 VESA 75 wall mount kit ARM-11 -RS LCD monitor/PPC arm kit, load capacity of 3kg~7kg STAND-A08-RS LCD monitor/PPC stand kit for VESA 75, up to 5kg... -
Page 27: Table 3-2: Optional Items
IOVU-751R-CE5/UX-R10 User Manual Part Number Description Image FLP-CDB01, AFLP-CDW01 VFD customer display (green) 5x7 dot matrix (black/white) 63000-FSP0361AD101C-RS 90V~264V and 12V/36W DC power adapter 63000-UP0451E24P56L-RS 24V DC 45W power adapter with bare wire, 90-264V AC input IPS-2042TX Industrial 6-port Lite-Managed P.O.E. -
Page 28: Installation
IOVU-751R-CE5/UX-R10 User Manual Chapter Installation Page 20... -
Page 29: Installation Precautions
Electric shock and personal injury might occur if the rear panel of the IOVU-751R-CE5/UX-R10 is opened while the power cord is still connected to an electrical outlet. -
Page 30: Dc Power Interfaces
D-sub 9 Male connector USB connectors Dual USB port Table 4-1: External Interface Connectors Figure 4-1: IOVU-751R-CE5/UX-R10 Peripheral Connectors 4.2.1 DC Power interfaces 4.2.1.1 6V~30V DC Terminal Block The power terminal block connects to a 6V~30V DC power source. CN Label:... -
Page 31: Dc-In
IOVU-751R-CE5/UX-R10 User Manual DESCRIPTION 6~30V DC Power in Table 4-2: 9~36V Power Connector Pinouts Figure 4-2: Power Terminal Block 4.2.1.2 12V DC-In Use the rear panel +6-30V DC jack to connect the monitor to a power source. CN Label: CN13... -
Page 32: Rs-232/422/485 Serial Interface Pinouts
IOVU-751R-CE5/UX-R10 User Manual Pin Arrangement Pin No Signal Name Direction Description Input Carrier Detect Input Receive Data Output Send Data Output Data Terminal Ready Ground Input Data Set Ready Output Request to Send Input Send Possible Input Called Status Display... -
Page 33: Figure 4-3: Serial Port Pinouts
IOVU-751R-CE5/UX-R10 User Manual Figure 4–3: Serial Port Pinouts To select RS-232, RS-422, or RS-485 mode, please follow the directions below. Step 1: Select "Start > Programs > IEI > IEI CEUTILITY.exe" to run IEI_CEUTILITY.exe in the “SYSTEM” folder on the SD/CF card). -
Page 34: Connecting The Serial Port
Click "Save Registry" to save the changes. Step 0: 4.2.2.3 Connecting the Serial Port The IOVU-751R-CE5/UX-R10 has a single female DB-9 connector on the external peripheral interface panel for a serial device. Follow the steps below to connect a serial device to the IOVU-751R-CE5/UX-R10. -
Page 35: Usb Connection (Dual Connector)
IOVU-751R-CE5/UX-R10 User Manual DESCRIPTION DESCRIPTION Table 4-6: USB Connector Pinouts 4.2.3.2 USB Connection (Dual Connector) The external USB Series "A" receptacle connectors provide easier and quicker access to external USB devices. Follow the steps below to connect USB devices to the IOVU-751R-CE5/UX-R10. -
Page 36: Ethernet Connector
IOVU-751R-CE5/UX-R10 User Manual 4.2.4 Ethernet Connector A 10/100Mb/s connection can be made between the Ethernet connectors and a Local Area Network (LAN) through a network hub. 4.2.4.1 Ethernet Connector Pinouts The Ethernet connector pinouts are shown below. DESCRIPTION TPT+ TPT-... -
Page 37: Lan Connection
Step 1: Align the connectors. Align the RJ-45 connector on the LAN cable with one of the RJ-45 connectors on the IOVU-751R-CE5/UX-R10. See Figure 4-8. Figure 4-8: LAN Connection Step 2: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN cable RJ-45 connector into the on-board RJ-45 connector. -
Page 38: Mounting The System
PC does not fall down and get damaged. Three methods of mounting the IOVU-751R-CE5/UX-R10 are listed below. Wall mounting Panel mounting Arm mounting The three mounting methods are described below. -
Page 39: Figure 4-9: Wall-Mounting Bracket
IOVU-751R-CE5/UX-R10 User Manual Figure 4-9: Wall-mounting Bracket Step 6: Insert the four monitor mounting screws provided in the wall mounting kit into the four screw holes on the real panel of the IOVU-751R and tighten until the screw shank is secured against the rear panel (Figure 4-10). -
Page 40: Figure 4-10: Chassis Support Screws
IOVU-751R-CE5/UX-R10 User Manual Figure 4-10: Chassis Support Screws Step 9: Secure the panel PC by fastening the retention screw of the wall-mounting bracket. (Figure 4-11). Step 0: Figure 4-11: Secure the IOVU-751R Page 32... -
Page 41: Panel Mounting
Cut out a section from the panel that corresponds to the rear panel dimensions of the IOVU-751R-CE5/UX-R10. Take care that the panel section that is cut out is smaller than the overall size of the frame that surrounds the IOVU-751R but just large enough for the rear panel of the IOVU-751R to fit through (see Figure 4-12). -
Page 42: Figure 4-12: Iovu-751R-Ce5/Ux-R10 Panel Opening (Mm)
IOVU-751R-CE5/UX-R10 User Manual Figure 4-12: IOVU-751R-CE5/UX-R10 Panel Opening (mm) Step 3: Slide theIOVU-751R-CE5/UX-R10 through the hole until the frame is flush against the panel. Step 4: Insert the panel mounting clamps into the pre-formed holes along the edges of the chassis, behind the frame. -
Page 43: Arm Mounting
The IOVU-751R-CE5/UX-R10 is VESA (Video Electronics Standards Association) compliant and can be mounted on an arm with a 75 mm interface pad. To mount the IOVU-751R-CE5/UX-R10 on an arm, please follow the steps below. Step 1: The arm is a separately purchased item. Please correctly mount the arm onto the surface it uses as a base. -
Page 44: Stand Mounting
IOVU-751R-CE5/UX-R10 User Manual Step 3: Align the retention screw holes on the mounting arm interface with those on theIOVU-751R, as shown in Figure 4-15. Figure 4-15: Arm Mounting Retention Screw Holes Step 4: Secure the IOVU-751R to the interface pad by inserting four retention screws through the bottom of the mounting arm interface pad and into the IOVU-751R. -
Page 45: Software
Figure 4-16: Stand Mounting 4.4 Software The IOVU-751R-CE5/UX-R10 comes with a pre-installed Windows CE 5.0 or Linux 2.6.x operating system and a rich software application development kit. For information about configuring the operating system, adding remote management tools or additional software and drivers, refer to the user manuals on IEI IOVU Utility CD that came with the IOVU-751R-CE5/UX-R10. - Page 46 IOVU-751R-CE5/UX-R10 User Manual IOVU-751R-UX/-R10: GNU standard Embedded Linux 2.6.x bootloader and OS image Secure Shell (OpenSSH) providing 128-bit, 192-bit or 256-bit encryption between the IOVU-751R and another system Built-in web browser and X-window system Related Linux drivers for onboard peripheral I/O, network and audio Attached SDK including GUI, Sample Code, and Tool chain make users program application readily.
-
Page 47: A Certifications
IOVU-751R-CE5/UX-R10 User Manual Appendix Certifications Page 39... -
Page 48: Rohs Compliant
IOVU-751R-CE5/UX-R10 User Manual A.1 RoHS Compliant All models in the IOVU series comply with the Restriction of Hazardous Materials (RoHS) Directive. This means that all components used to build the industrial workstations and the workstation itself are RoHS compliant. The RoHS Directive bans the placing on the EU market of new electrical and electronic... -
Page 49: B Safety Precautions
IOVU-751R-CE5/UX-R10 User Manual Appendix Safety Precautions Page 41... -
Page 50: Safety Precautions
Please ensure the following safety precautions are adhered to at all times. Make sure the power is turned off and the power cord is disconnected whenever the IOVU-751R-CE5/UX-R10 is being installed, moved or modified. Do not apply voltage levels that exceed the specified voltage range. -
Page 51: Anti-Static Precautions
Electrostatic discharge (ESD) can cause serious damage to electronic components, including the IOVU-751R-CE5/UX-R10. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the IOVU-751R-CE5/UX-R10 is opened and any of the electrical components are handled, the following anti-static precautions are strictly adhered to. -
Page 52: Cleaning Tools
IOVU-751R-CE5/UX-R10. B.2.2 Cleaning Tools Some components in the IOVU-751R-CE5/UX-R10 may only be cleaned using a product specifically designed for the purpose. In such case, the product will be explicitly mentioned in the cleaning tips. Below is a list of items to use when cleaning the IOVU-751R-CE5/UX-R10. - Page 53 IOVU-751R-CE5/UX-R10 User Manual Foam swabs - Whenever possible, it is best to use lint free swabs such as foam swabs for cleaning. Page 45...
-
Page 54: C Hazardous Materials Disclosure
IOVU-751R-CE5/UX-R10 User Manual Appendix Hazardous Materials Disclosure Page 46... -
Page 55: Hazardous Materials Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury
IOVU-751R-CE5/UX-R10 User Manual C.1 Hazardous Materials Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only. - Page 56 IOVU-751R-CE5/UX-R10 User Manual Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated (Pb) (Hg) (Cd) Chromium Biphenyls Diphenyl (CR(VI)) (PBB) Ethers (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply...
- Page 57 IOVU-751R-CE5/UX-R10 User Manual 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯 醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。...
- Page 58 IOVU-751R-CE5/UX-R10 User Manual Index Page 50...
- Page 59 IOVU-751R-CE5/UX-R10 User Manual 12V ............23 electrostatic discharge ......16 embedded RISC ......... 9 Ethernet ........ 3, 4, 22, 28, 29 RJ-45 connector ........11 Active Area ..........12 External Peripheral Interface Connectors. 21 anti-static precautions........16 9V~36V DC Terminal Block ....22 anti-static pad ........16, 43 Ethernet Connector ......
- Page 60 IOVU-751R-CE5/UX-R10 User Manual Front Panel..........7 MMC/SD/SDIO connector ......10 technical specifications ......11 monitor stand ..........36 Technical Specifications......4, 5 Monitor Stand........36, 37 touch panel connector....... 10 MPEG 1 ..........2, 3, 11 Touch Panel Specifications ....... 12 MPEG 2 ..........2, 3, 11 MPEG 4 ..........2, 3, 11...
