IEI Technology IASO-W10B-N6210 User Manual

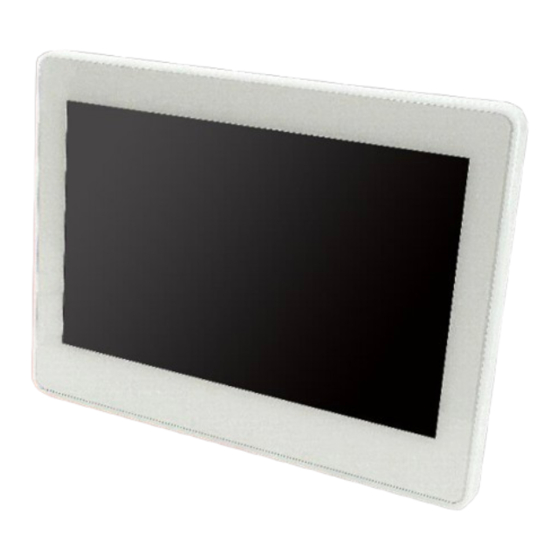

10.1" medical panel pc with intel celeron processor n6210, p-cap touchscreen, 4 gb ddr4, hdmi output, usb 3.2, com, wi-fi 6e, 1gbe, rfid, poe, audio and rohs
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IASO-W10B-N6210 Medical Panel PC
MODEL:
IASO-W10B-N6210
10.1" Medical Panel PC with Intel® Celeron® Processor N6210,
P-CAP Touchscreen, 4 GB DDR4, HDMI Output, USB 3.2,
COM, Wi-Fi 6E, 1GbE, RFID, PoE, Audio and RoHS
User Manual
Page i
Rev. 1.02 - December 5, 2022
[MODEL NAME]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IASO-W10B-N6210 and is the answer not in the manual?

Questions and answers

Related Manuals for IEI Technology IASO-W10B-N6210

Summary of Contents for IEI Technology IASO-W10B-N6210

  • Page 1 IASO-W10B-N6210 Medical Panel PC MODEL: IASO-W10B-N6210 10.1" Medical Panel PC with Intel® Celeron® Processor N6210, P-CAP Touchscreen, 4 GB DDR4, HDMI Output, USB 3.2, COM, Wi-Fi 6E, 1GbE, RFID, PoE, Audio and RoHS User Manual Page i Rev. 1.02 - December 5, 2022...
  • Page 2 IASO-W10B-N6210 Medical Panel PC Revision Date Version Changes December 5, 2022 1.02 Updated Appendix D (Symbol Definition) October 26, 2022 1.01 Updated spec. July 4, 2022 1.00 Initial release Page ii [MODEL NAME]...
  • Page 3 IASO-W10B-N6210 Medical Panel PC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 4 IASO-W10B-N6210 Medical Panel PC Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product.

  • Page 5: Table Of Contents

    IASO-W10B-N6210 Medical Panel PC Table of Contents 1 INTRODUCTION ......................1 1.1 O ........................2 VERVIEW 1.2 M ....................3 ODEL ARIATIONS 1.3 F ........................3 EATURES 1.4 F ......................4 RONT ANEL 1.5 B ......................5 OTTOM ANEL 1.6 R ......................
  • Page 6 IASO-W10B-N6210 Medical Panel PC A REGULATORY COMPLIANCE ................28 B PRODUCT DISPOSAL ....................33 C MAINTENANCE AND CLEANING PRECAUTIONS .......... 35 C.1.1 Maintenance and Cleaning ................37 C.1.2 Cleaning Tools ....................37 D SYMBOL DEFINITIONS ..................38 E WATCHDOG TIMER ....................40 F ERROR BEEP CODE ....................
  • Page 7 IASO-W10B-N6210 Medical Panel PC List of Figures Figure 1-1: IASO-W10B-N6210 Medical Panel PC ............... 2 Figure 1-2: Front View ........................4 Figure 1-3: Bottom Panel ....................... 5 Figure 1-4: Rear View ........................6 Figure 1-5: Dimensions (mm) ...................... 10 Figure 3-1: Ethernet Connector ....................19 Figure 3-2: AT/ATX Switch Location ...................
  • Page 8 IASO-W10B-N6210 Medical Panel PC List of Tables Table 1-1: Model Variations ......................3 Table 1-2: System Specifications ....................9 Table 3-1: Ethernet Connector Pinouts ..................19 Table 3-2: Connector LEDs ......................19 Table 3-3: RS-232 Serial Port Pinouts ..................20...

  • Page 9: Introduction

    IASO-W10B-N6210 Medical Panel PC Chapter Introduction Page 1...

  • Page 10: Overview

    IEEE802.3 PoE, making the panel PC a PoE powered device (PD). NOTE: The IASO-W10B-N6210 medical panel PC is intended to be used to display general purpose medical information. The device shall not be used for diagnosis purpose or life supporting system.

  • Page 11: Model Variations

    IASO-W10B-N6210 Medical Panel PC 1.2 Model Variations There are two models in the IASO-W10B-N6210 series. All models are preinstalled with one 4 GB DDR4 memory module and a Wi-Fi 6E module. The model numbers and model variations are listed below.

  • Page 12: Front Panel

    IASO-W10B-N6210 Medical Panel PC 1.4 Front Panel The front side of the IASO-W10B-N6210 is a flat-bezel panel with a 10.1" LCD screen surrounded by an ABS/PC plastic frame. The LED bars are located on both sides of the front panel. A digital microphone is located on the top frame. The bottom right surface contains an optional RFID reader.

  • Page 13: Bottom Panel

    IASO-W10B-N6210 Medical Panel PC 1.5 Bottom Panel The bottom panel of the IASO-W10B-N6210 has the following connectors and components (Figure 1-3):  1 x 12 V DC input jack (standard)  1 x HDMI output connector  1 x 1GbE RJ-45 supporting PoE 1 x RS-232 DB-9 serial port ...

  • Page 14: Rear Panel

    IASO-W10B-N6210 Medical Panel PC 1.6 Rear Panel The rear panel contains two internal speakers, and four retention screw holes that support VESA 75 mount (Figure 1-4). Figure 1-4: Rear View Page 6...

  • Page 15: System Specifications

    IASO-W10B-N6210 Medical Panel PC 1.7 System Specifications The technical specifications for the IASO-W10B-N6210 systems are listed below. LCD and Touchscreen 10.1” LCD Size Max. Resolution 1280 (W) x 800 (H) Brightness (cd/m Contrast Ratio 800:1 LCD Color 16.7M RGB 6-bit (Hi-FRC) Pixel Pitch (mm) 0.1695 (H) x 0.1695 (V)
  • Page 16 IASO-W10B-N6210 Medical Panel PC 1 x Reset button 1 x Clear CMOS button 1 x Power button 1 x AT/ATX power mode switch Storage 1 x M.2 2242 M-key slot (PCIe & SATA signal) Audio AMP 1W + 1W (internal speaker)

  • Page 17: Table 1-2: System Specifications

    IASO-W10B-N6210 Medical Panel PC CE, FCC Class B Part18 EMC & Safety EN 60601-1:2006/A1:2013 (Edition 3.1) EN 60601-1-2: 2015 (Edition 4.0) Power Power Input 12 V DC 65 W FSP FSP065-DHBM1 medical-grade power adapter (P/N: 63040-010065-300-RS) Power Adapter Input: 100 V AC - 240 V AC, 50 Hz - 60 Hz, 2.0 A – 1.0 A Output: 12 V 5.42 A...

  • Page 18: Dimensions

    IASO-W10B-N6210 Medical Panel PC 1.8 Dimensions The IASO-W10B-N6210 dimensions are shown below. Figure 1-5: Dimensions (mm) Page 10...

  • Page 19: Unpacking

    IASO-W10B-N6210 Medical Panel PC Chapter Unpacking Page 11...

  • Page 20: Unpacking

    IASO-W10B-N6210 Medical Panel PC 2.1 Unpacking To unpack the medical panel PC, follow the steps below: WARNING / AVERTISSEMENT The front side LCD screen has a protective plastic cover stuck to the screen. Only remove the plastic cover after the medical panel PC has been properly installed.

  • Page 21: Packing List

    IASO-W10B-N6210 was purchased from or contact an IEI sales representative directly by sending an email to ei_medical@ieiworld.com. 3 2 6 H 3 7 8 H The IASO-W10B-N6210 medical panel PC is shipped with the following components: Quantity Item Image IASO-W10B-N6210 medical panel PC...

  • Page 22: Installation

    IASO-W10B-N6210 Medical Panel PC Chapter Installation Page 14...

  • Page 23: Safety Precautions

     Electric shocks can occur if the IASO-W10B-N6210 chassis is opened when the IASO-W10B-N6210 is running. To avoid risk of electric shock, this equipment must only be connected to a supply mains with protective earth. Page 15...
  • Page 24 Never replace or repair any components on your own. If the components  of the IASO-W10B-N6210 fails or malfunctions it must be shipped back to IEI to be repaired. Please contact the system vendor, reseller or an IEI sales person directly.

  • Page 25: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the IASO-W10B-N6210. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the IASO-W10B-N6210 is accessed internally, or any other electrical component is handled, the following anti-static precautions are strictly adhered to.

  • Page 26: Installation Precautions

    1. DO NOT modify this equipment without authorization of manufacturer. Ne modifiez pas cet équipement sans l'autorisation du fabricant. 2. DO NOT power up the IASO-W10B-N6210 while the front panel is facing down on a sheet of conductive foam. Doing so may cause the touch panel to malfunction due to the large surface area of contact between the conductive form and the touch panel.

  • Page 27: Gbe Connection

    IASO-W10B-N6210 Medical Panel PC 3.4 GbE Connection The RJ-45 connector on the bottom panel allows 1GbE connection to be made to a Local Area Network. It supports PoE function (only for the sku with PoE function). Description Description MDIA3- MDIA1+...

  • Page 28: Rs-232 Serial Port Connection

    Table 3-3: RS-232 Serial Port Pinouts 3.6 AT/ATX Mode Selection AT or ATX power mode can be used on the IASO-W10B-N6210. The selection is made through an AT/ATX switch located on the bottom panel (Figure 3-2). Figure 3-2: AT/ATX Switch Location...

  • Page 29: Vesa Mounting

    IASO-W10B-N6210 Medical Panel PC 3.7 VESA Mounting The IASO-W10B-N6210 is VESA (4 screws: M4 type, 6 mm length min.) compliant and can be mounted on a mounting device with a 75 mm interface pad. The IASO-W10B-N6210 VESA mount retention screw holes are shown below. Refer to the installation guide that came with the mounting device to mount the IASO-W10B-N6210.

  • Page 30: Powering On The System

    Connect the power adapter to the power connector of the IASO-W10B-N6210. NOTE: The FSP FSP065-DHBM1 power adapter came with the IASO-W10B-N6210 is a forming part of the medical device. Figure 3-4: Power Input Connector and Power Button Step 2: Locate the power button on the bottom panel (Figure 3-4).

  • Page 31: Clear Cmos

    IASO-W10B-N6210 Medical Panel PC 3.9 Clear CMOS If the IASO-W10B-N6210 fails to boot due to improper BIOS settings, the clear CMOS jumper clears the CMOS data and resets the system BIOS information. To do this, push the clear CMOS button for three seconds, then restart the system. The clear CMOS button location is shown in Figure 3-5.

  • Page 32: System Maintenance

    IASO-W10B-N6210 Medical Panel PC 3.11 System Maintenance If the components of the IASO-W10B-N6210 fail, they must be replaced. Please contact the system reseller or vendor to purchase the replacement parts. NOTE: A user cannot replace a motherboard. If the motherboard fails it must be shipped back to IEI to be replaced.

  • Page 33: Driver Installation

    IASO-W10B-N6210 Medical Panel PC Chapter Driver Installation Page 25...

  • Page 34: Available Drivers

    IASO-W10B-N6210 Medical Panel PC 4.1 Available Drivers All the drivers for the IASO-W10B-N6210 are available on IEI Resource Download Center (https://download.ieiworld.com). Type IASO-W10B-N6210, and press Enter to find all the relevant software, utilities, and documentation. Figure 4-1: IEI Resource Download Center 4.2 Driver Download...
  • Page 35 IASO-W10B-N6210 Medical Panel PC Step 3: Click the driver file name on the page and you will be prompted with the  following window. You can download the entire ISO file ( ), or click the small  arrow to find an individual driver and click the file name to download (...

  • Page 36: A Regulatory Compliance

    IASO-W10B-N6210 Medical Panel PC Appendix Regulatory Compliance Page 28...
  • Page 37 IASO-W10B-N6210 Medical Panel PC DECLARATION OF CONFORMITY This equipment is in conformity with the following EU directives: EMC Directive (2004/108/EC, 2014/30/EU)  Low-Voltage Directive (2006/95/EC, 2014/35/EU)  RoHS II Directive (2011/65/EU, 2015/863/EU)  Medical Device Directive 93/42/EEC: EN 60601-1 ...
  • Page 38 IASO-W10B-N6210 Medical Panel PC Español [Spanish] IEI Integration Corp. declara que el equipo cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 2014/53/EU. Ελληνική [Greek] IEI Integration Corp. ΔΗΛΩΝΕΙ ΟΤΙ ΕΞΟΠΛΙΣΜΟΣ ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ...
  • Page 39 IASO-W10B-N6210 Medical Panel PC Slovensko [Slovenian] IEI Integration Corp. izjavlja, da je ta opreme v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 2014/53/EU. Slovensky [Slovak] IEI Integration Corp. týmto vyhlasuje, že zariadenia spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 2014/53/EU.
  • Page 40 IASO-W10B-N6210 Medical Panel PC UL CLASSIFIED The label on the product indicates this product complies with the requirements of ES 60601-1 (2005) + AMD (2012), CAN/CSA-C22.2 No. 60601-1:14. ROHS STATEMENT The label on the product indicates this product conforms to European (EU) Restriction of Hazardous Substances (RoHS) that set maximum concentration limits on hazardous materials used in electrical and electronic equipment.

  • Page 41: B Product Disposal

    IASO-W10B-N6210 Medical Panel PC Appendix Product Disposal Page 33...
  • Page 42 IASO-W10B-N6210 Medical Panel PC CAUTION / ATTENTION Risk of explosion if battery is replaced by an incorrect type. Only certified engineers should replace the on-board battery. Risque d'explosion si la batterie est remplacée par un type incorrect. Seuls les ingénieurs certifiés doivent remplacer la batterie embarquée.

  • Page 43: C Maintenance And Cleaning Precautions

    IASO-W10B-N6210 Medical Panel PC Appendix Maintenance and Cleaning Precautions Page 35...
  • Page 44 IASO-W10B-N6210 Medical Panel PC When maintaining or cleaning the IASO-W10B-N6210, please follow the guidelines below. WARNING / AVERTISSEMENT If you dropped any material or liquid such as water onto the panel PC when cleaning, unplug the power cable immediately and contact your dealer or the nearest service center.

  • Page 45: Maintenance And Cleaning

    Some components in the IASO-W10B-N6210 may only be cleaned using a product specifically designed for the purpose. In such case, the product will be explicitly mentioned in the cleaning tips. Below is a list of items to use when cleaning the IASO-W10B-N6210. ...

  • Page 46: D Symbol Definitions

    IASO-W10B-N6210 Medical Panel PC Appendix Symbol Definitions Page 38...
  • Page 47 IASO-W10B-N6210 Medical Panel PC The following symbols appear on the product, its labeling, or the product packing. Each symbol carries a special definition, as defined below: Direct current Fragile, handle with care AC current Keep dry Protective earth (ground) This side up...

  • Page 48: E Watchdog Timer

    IASO-W10B-N6210 Medical Panel PC Appendix Watchdog Timer Page 40...
  • Page 49 IASO-W10B-N6210 Medical Panel PC NOTE: The following discussion applies to DOS. Contact IEI support or visit the IEI website for drivers for other operating systems. The Watchdog Timer is a hardware-based timer that attempts to restart the system when it stops working.
  • Page 50 IASO-W10B-N6210 Medical Panel PC NOTE: The Watchdog Timer is activated through software. The software application that activates the Watchdog Timer must also deactivate it when closed. If the Watchdog Timer is not deactivated, the system will automatically restart after the Timer has finished its countdown.

  • Page 51: F Error Beep Code

    IASO-W10B-N6210 Medical Panel PC Appendix Error Beep Code Page 43...

  • Page 52: Pei Beep Codes

    IASO-W10B-N6210 Medical Panel PC F.1 PEI Beep Codes Number of Beeps Description Memory not Installed Memory was installed twice (InstallPeiMemory routine in PEI Core called twice) Recovery started DXEIPL was not found DXE Core Firmware Volume was not found Recovery failed...

  • Page 53: G Hazardous Materials Disclosure

    IASO-W10B-N6210 Medical Panel PC Appendix Hazardous Materials Disclosure Page 45...

  • Page 54: Rohs Ii Directive (2015/863/Eu)

    IASO-W10B-N6210 Medical Panel PC G.1 RoHS II Directive (2015/863/EU) The details provided in this appendix are to ensure that the product is compliant with the RoHS II Directive (2015/863/EU). The table below acknowledges the presences of small quantities of certain substances in the product, and is applicable to RoHS II Directive (2015/863/EU).

  • Page 55: China Rohs

    IASO-W10B-N6210 Medical Panel PC G.2 China RoHS 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些 元件将会单独标示出来。 部件名称 有毒有害物质或元素 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求。 Page 47...
