Installing The Memory Module - AXIOMTEK rBOX120-FL Quick Installation Manual

I/O Outlets

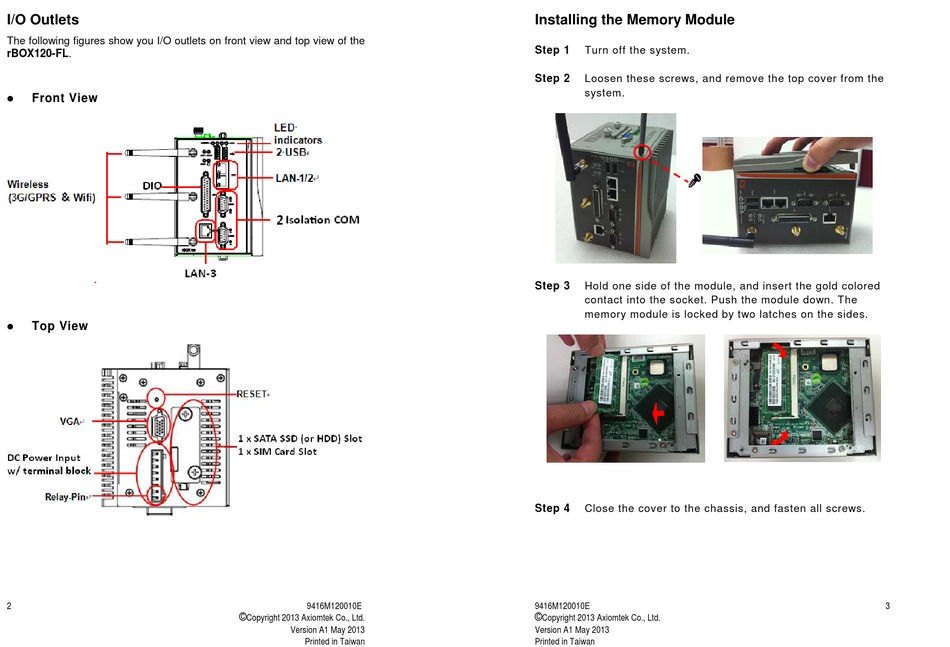

The following figures show you I/O outlets on front view and top view of the
rBOX120-FL.
 Front View
 Top View
2 9416M120010E
©
Copyright 2013 Axiomtek Co., Ltd.
Version A1 May 2013
Printed in Taiwan

Installing the Memory Module

Step 1 Turn off the system.
Step 2 Loosen these screws, and remove the top cover from the
system.
Step 3 Hold one side of the module, and insert the gold colored
contact into the socket. Push the module down. The
memory module is locked by two latches on the sides.
Step 4 Close the cover to the chassis, and fasten all screws.
