Controls, Switches, and Indicators

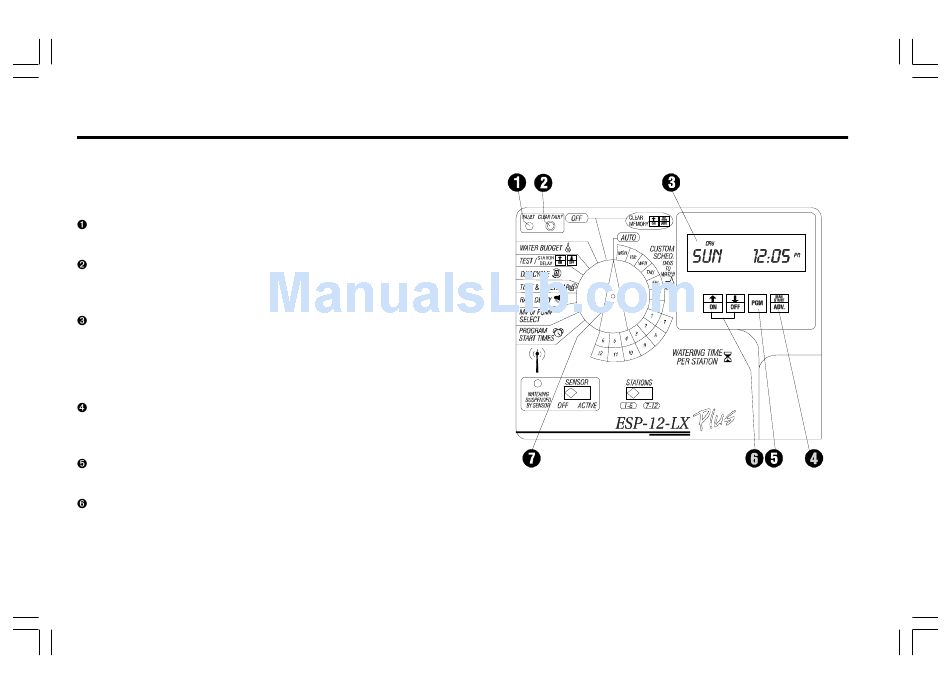

This illustration shows the controls, switches, and indicators on
ESP-LX+ and LXi+ controllers, including:
.ault LED — flashes when the controller senses a station
short circuit.
Clear .ault Button — used to turn off the .ault LED and
clear the flashing LCD Error indicator after the fault has
been corrected.
LCD Display — during normal operation, displays the time
of day; during programming, shows the result of your
commands; during watering, shows the station that is
running and the minutes remaining in its run time (when
program dial is set to the AUTO position).
Manual Start / Advance Button — used to start a program
manually or to manually advance watering from one
station to the next. Also used to make program changes.
PGM Button — used to select watering program A, B, C, or
D-drip.
Arrow / ON-O.. Buttons — used to set times and days, and
to make program changes.
’ Programming Dial — used to turn the controller off and on,
and for programming.
4 ESP-LX+ & LXi+ Installation, Programming, & Operation Guide
