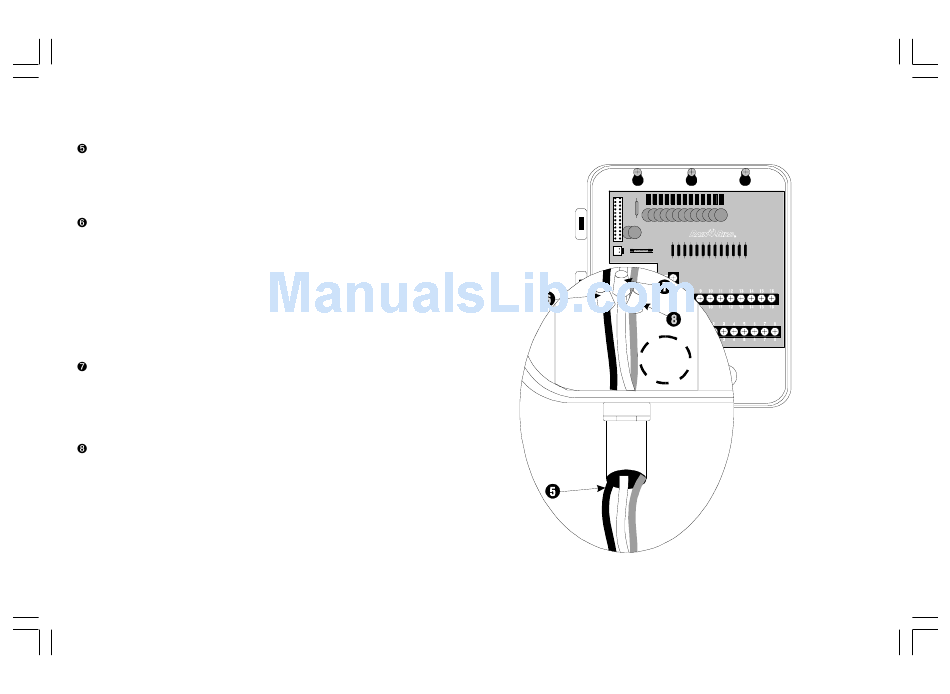

Bring three supply wires from the power source through
the conduit into the high-voltage compartment. Strip the
insulation from the incoming wires to expose about ½"
(1,3 cm) of bare wire.
Using a code-approved wire connector, connect the wires
as follows:
On 117-120 VAC models (U.S.), connect the black
•
supply wire (“hot”) to the black transformer wire.
On 230 VAC models (international), connect the
•
brown supply wire (“hot”) to the brown transformer
wire.
On 117-120 VAC models (U.S.), connect the white supply
wire (“neutral”) to the white transformer wire.
On 230 VAC models (international), connect the blue
supply wire (“neutral”) to the blue transformer wire.
On 117-120 VAC models (U.S.), connect the green supply
wire (“ground”) to the green transformer wire.
On 230 VAC models (international), connect the green-
with-yellow-stripe supply wire (“ground”) to the green-
with-yellow-stripe transformer wire.
