- Page 1 4KEX70-R 4K HDBaseT Extender User Manual...
- Page 3 Disclaimers The information in this manual has been carefully checked and is believed to be accurate. AV Access Technology Limited assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use.
-
Page 4: Important Safety Instructions
Important Safety Instructions Do not expose this device to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the device. Do not install or place this unit in a bookcase, built-in cabinet, or in ... -
Page 5: Table Of Contents
Table of Contents Overview ........................1 Package Contents ........................2 Panel ............................... 3 Installation Instructions ..................7 Specification ......................9 Warranty ........................ 11... -
Page 6: Overview

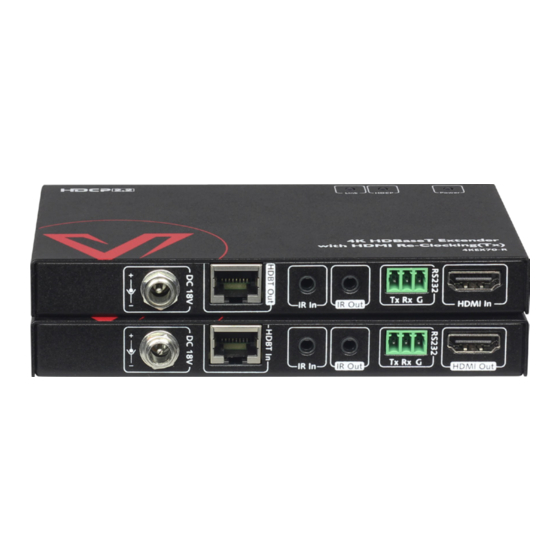

Overview Overview 4KEX70-R is an HDBaseT Extender with HDMI re-clocking which offers the distribution of uncompressed 3840 x 2160@60Hz 4:2:0 video, power, RS232 and Bi-directional IR up to 40m. At 1080p@60Hz, it reaches up to 70m. With Bi-directional PoC (Power over Cable) integrated inside, it just needs one power supply connected to Transmitter or Receiver to power both units. -
Page 7: Package Contents
Visual LED indication for power supply to units, HDCP presence in signal and HDBaseT link Package Contents Before you start the installation of the product, please check the package contents. 1 x 4KEX70-R (TX) 1 x 4KEX70-R (RX) 1 x Power Adapter (DC 18V 1A) ... -
Page 8: Panel
Overview Panel Transmitter Front Panel No. Name Description ON: Link to RX has been established. Link LED Blinking/OFF: Link to RX has not been established. ON: Audio and Video signal is HDCP protected. Blinking: Audio and Video signal is not HDCP LED HDCP protected. - Page 9 Overview Rear Panel Name Description DC 18V 18V DC power input HDBT OUT Connects to HDBT IN port of HDBT receiver IR IN: Connect to an IR receiver cable and fix the IR receiver with adhesive. The IR receiver enabled angle and distance: Enabled 0°...
- Page 10 Overview Receiver Front Panel No. Name Description ON: Link to TX has been established. Link LED Blinking/OFF: Link to TX has not been established. ON: Audio and Video signal is HDCP protected. HDCP LED Blinking: Audio and Video signal is not HDCP protected.
- Page 11 Overview Rear Panel Name Description DC 18V 18V DC power input Connects to HDBT OUT port of HDBT HDBT IN transmitter IR IN: Connect to an IR receiver cable and fix the IR receiver with adhesive. The IR receiver enabled angle and distance: Enabled 0°...
-
Page 12: Installation Instructions
Installation Instructions Installation Instructions Using quality HDMI cables, connect an HDMI source (such as Blu-ray, games console, satellite/cable TV, media server etc.) to HDMI IN of the Transmitter. Connect a good quality Cat X cable between the HDBT OUT of the Transmitter and the HDBT IN Input of the Receiver. - Page 13 Installation Instructions www.avaccess.com...
-
Page 14: Specification
Specification Specification Transmitter Technical Input 1 x HDMI IN 800x600 , 1024x768 , 1280x768 , 1280x800 1280x960 , 1280x1024 , 1360x768 1366x768 , 1440x900 , 1600x900 1600x1200 , 1680x1050 , 1920x1200 3840x2160 , 4096x2160 , 720x480 2,3,5,8 2,3,5,8 (480p), 720x576 (576p), 1280x720 Input Resolution (720p50),... - Page 15 Specification (480p), 720x576 (576p), 1280x720 (720p50), 1280x720 (720p60), 1920x1080 (1080p50), 1920x1080 (1080p60), 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz;...
- Page 16 Specification Device Dimensions 140mm x 17mm x 90.2mm (W x H x D) 5.53" x 0.67" x 3.57" Product Weight 0.34kg Certification Receiver Technical Input 1 x HDBT IN 800x600 , 1024x768 , 1280x768 , 1280x800 1280x960 , 1280x1024 , 1360x768 1366x768 , 1440x900 , 1600x900...
- Page 17 Specification 3840x2160 , 4096x2160 , 720x480 2,3,5,8 2,3,5,8 (480p), 720x576 (576p), 1280x720 (720p50), 1280x720 (720p60), 1920x1080 (1080p50), 1920x1080 (1080p60), 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz;...
- Page 18 Specification Power Consumption 9.34W (Max) Device Dimensions 140mm x 17mm x 90.2mm (W x H x D) 5.53" x 0.67" x 3.57" Product Weight 0.36kg Certification www.avaccess.com...
-
Page 19: Warranty
The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide. - Page 20 AV Access Technology Limited V1.0.1...
