Remove the control box lid of the indoor unit.
．
Remove the cover of the outdoor unit.
How to
onnect t
Wiring
C
he

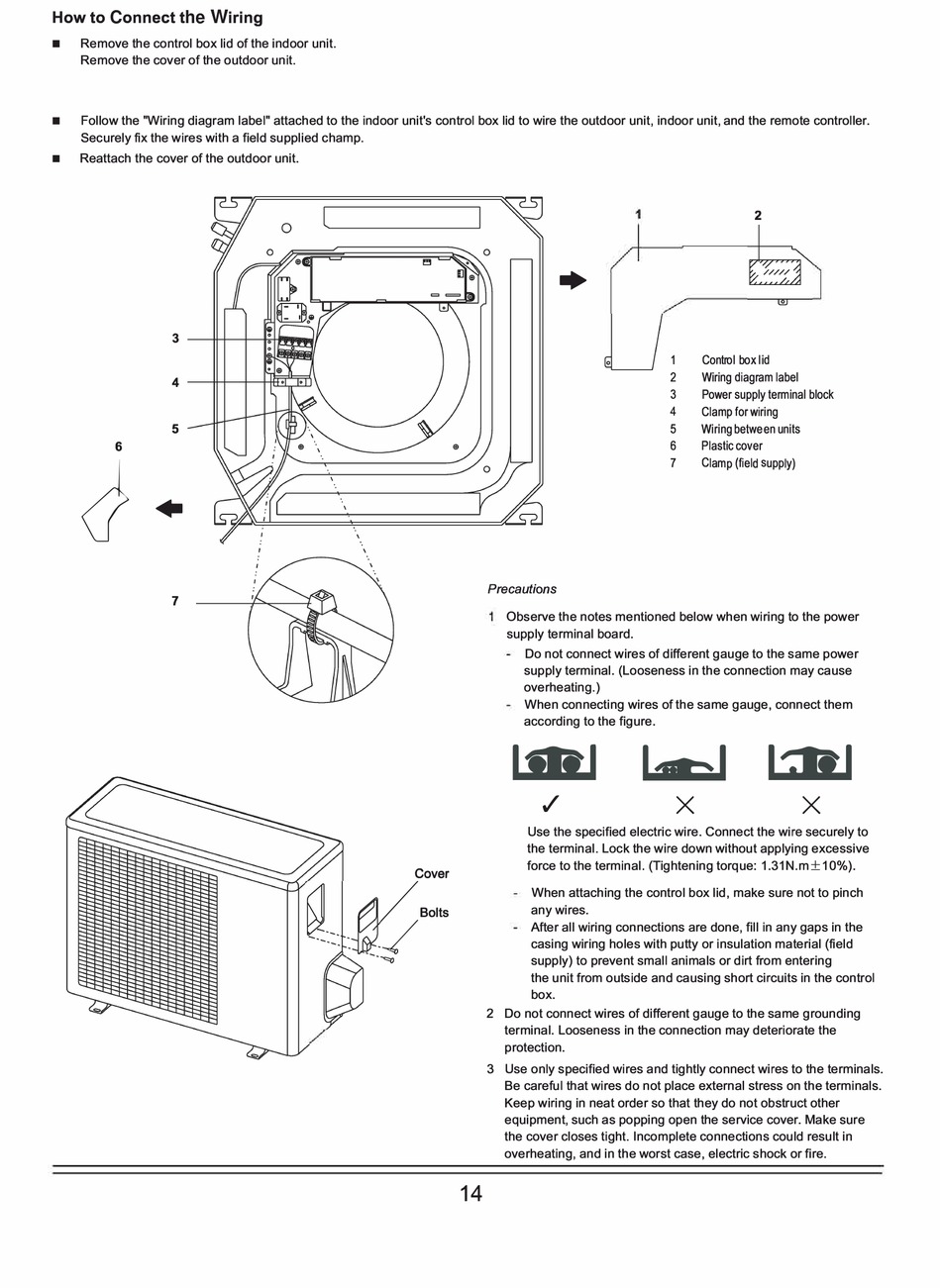

Follow the "Wiring diagram label" attached to the indoor unit's control box lid to wire the outdoor unit, indoor unit, and the remote controller.
．
Securely fix the wires with a field supplied champ.
Reattach the cover of the outdoo
．
4
3
5
6
J
令
7
unit.
「
Cover
Bolts
勹 /
呻
Precautions
Observe the notes mentioned below when wiring to the power
supply te
minal board.
Do not connect wires of different gauge to the same power
supply terminal. {Looseness in the connection may cause
overheating.)
When connecting wires of the same gauge, connect them
「
according to the figure.
l.81.J Laa;J
Use the specified electric wire. Connect the wire securely to
the terminal. Lock the wire down without applying excessive
force to the terminal. (Tightening torque: 1.31 N.m土10%).
✓
When attaching the control box lid, make sure not to pinch
any wires.
After all wiring connections are done, fill in any gaps in the
casing wiring holes with putty or insulation material (field
supply) to prevent small animals or dirt from entering
the unit from outside and causing short circuits in the control
box.
2 Do not connect wires of different gauge to the same grounding
terminal. Looseness in the connection may deteriorate the
protection.
3 Use only specified wires and tightly connect wires to the terminals.
Be careful that wires do not place external stress on the terminals.
Keep wiring in neat order so that they do not obstruct other
equipment, such as popping open the service cover. Make sure
the cover closes tight. Incomplete connections could result in
overheating, and in the worst case, electric shock or fire.
14
2
Control box lid
Wiring diagram label
Power suppl y terminal block
Clamp for wiring
1
Wiring between units
2
3
Plastic cover
4
Clam p (fiel d sup pl y )
5
6
7
匕
X
X
