11 Supplement

VEGAPULS 63, hygienic fitting 1

5 1

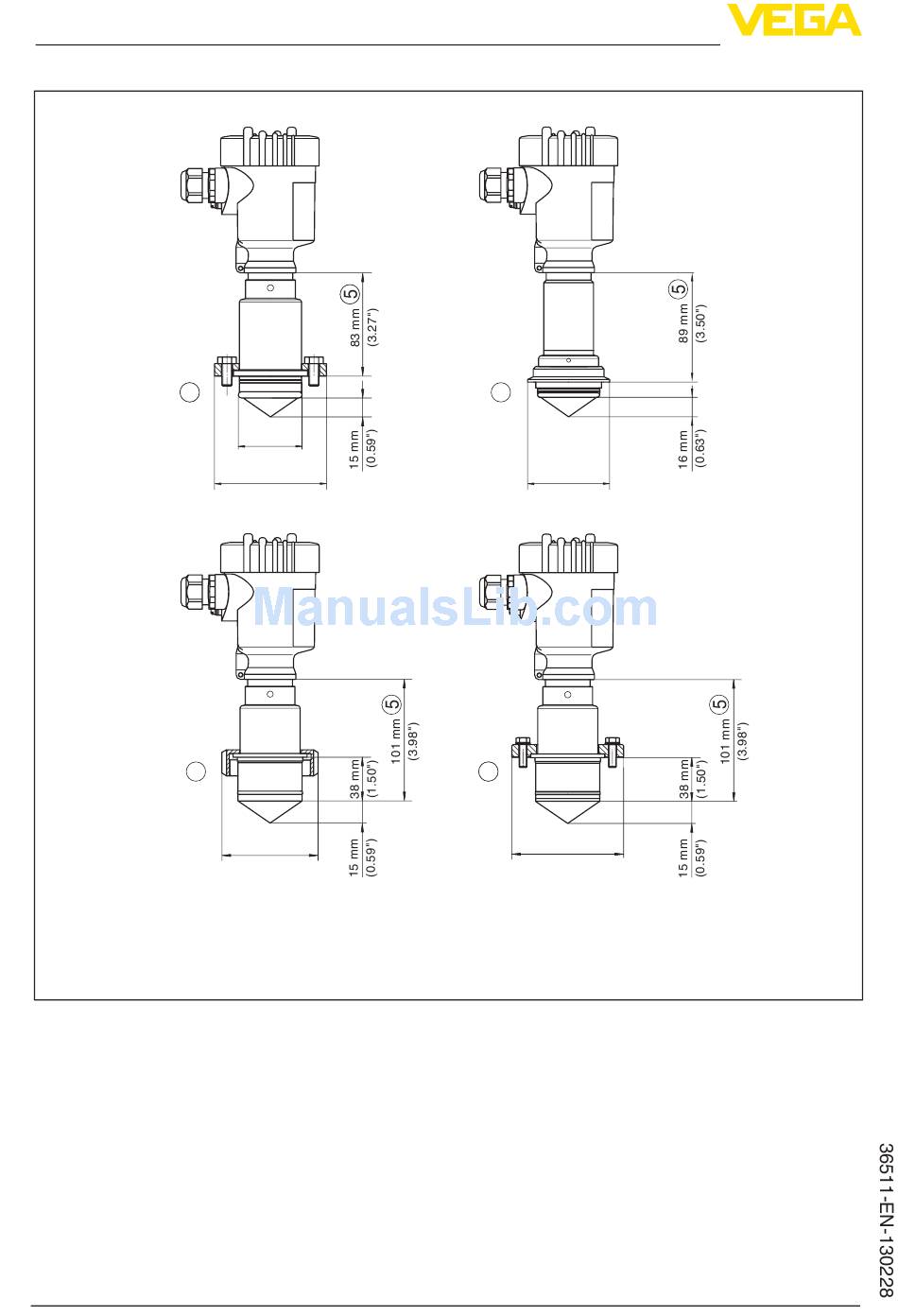

Fig. 57: VEGAPULS 63, hygienic fitting 1

NeumoBiocontrol

Tuchenhagen Varivent DN 25

Hygienic fitting LA

Hygienic fitting LB

With stainless steel housings and Aluminium double chamber housings, this dimension is 4 mm (0.157") less

ø 50 mm

(1.97")

ø 90 mm

(3.54")

ø 78 mm

(3.07")

ø 66 mm

(2.60")

5 4

ø 90 mm

(3.54")

VEGAPULS 63 • 4 ... 20 mA/HART two-wire
