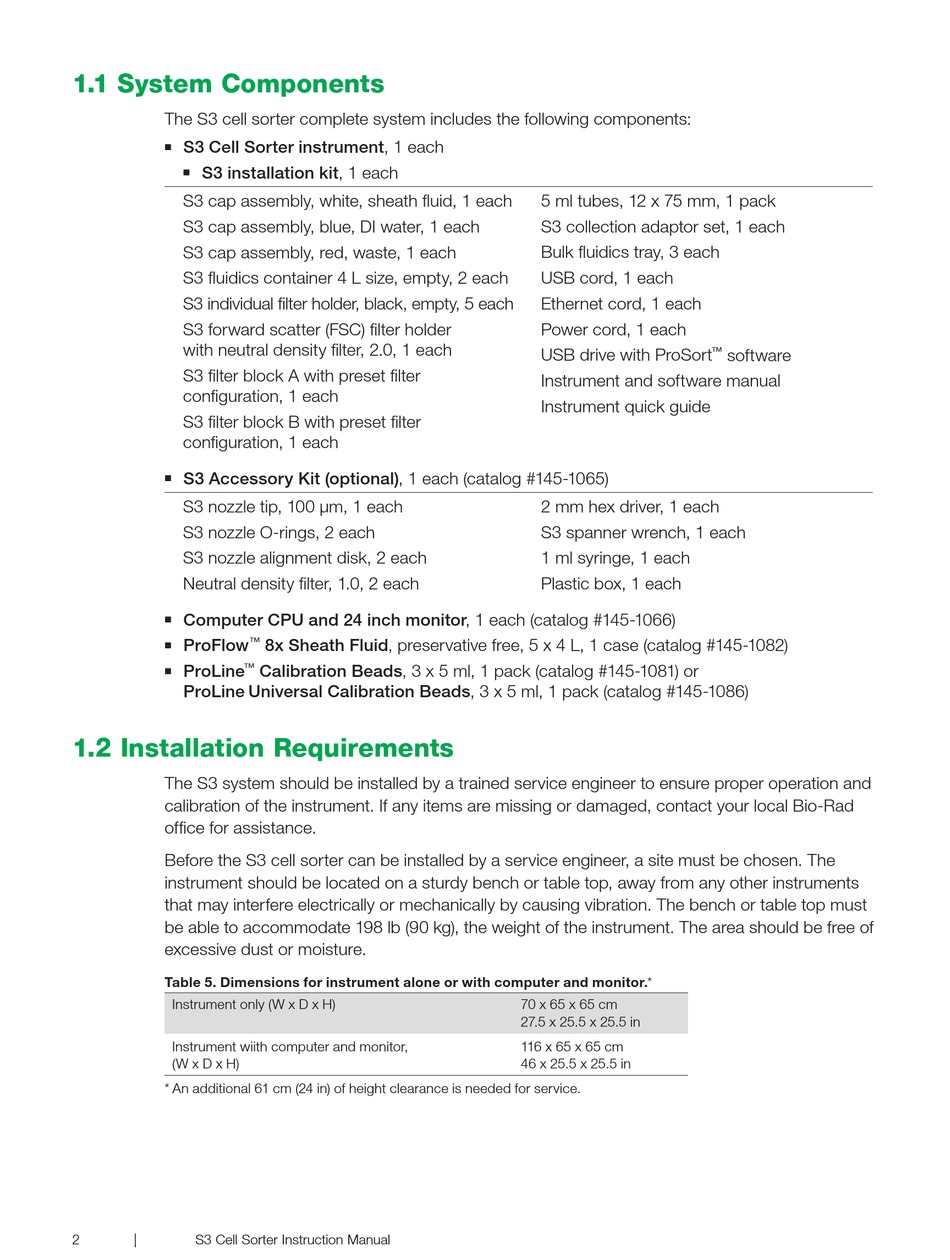

1.1 System Components

The S3 cell sorter complete system includes the following components:
S3 Cell Sorter instrument, 1 each
n
S3 installation kit, 1 each
n
S3 cap assembly, white, sheath fluid, 1 each
S3 cap assembly, blue, DI water, 1 each
S3 cap assembly, red, waste, 1 each
S3 fluidics container 4 L size, empty, 2 each
S3 individual filter holder, black, empty, 5 each
S3 forward scatter (FSC) filter holder
with neutral density filter, 2.0, 1 each
S3 filter block A with preset filter
configuration, 1 each
S3 filter block B with preset filter
configuration, 1 each
S3 Accessory Kit (optional), 1 each (catalog #145-1065)
n
S3 nozzle tip, 100 µm, 1 each
S3 nozzle O-rings, 2 each
S3 nozzle alignment disk, 2 each
Neutral density filter, 1.0, 2 each
Computer CPU and 24 inch monitor, 1 each (catalog #145-1066)
n
ProFlow ™
n
ProLine ™
n
ProLine Universal Calibration Beads, 3 x 5 ml, 1 pack (catalog #145-1086)

1.2 Installation Requirements

The S3 system should be installed by a trained service engineer to ensure proper operation and
calibration of the instrument. If any items are missing or damaged, contact your local Bio-Rad
office for assistance.
Before the S3 cell sorter can be installed by a service engineer, a site must be chosen. The
instrument should be located on a sturdy bench or table top, away from any other instruments
that may interfere electrically or mechanically by causing vibration. The bench or table top must
be able to accommodate 198 lb (90 kg), the weight of the instrument. The area should be free of
excessive dust or moisture.
Table 5. Dimensions for instrument alone or with computer and monitor.*
Instrument only (W x D x H)
Instrument wiith computer and monitor,
(W x D x H)
* An additional 61 cm (24 in) of height clearance is needed for service.
2 2 | | S3 Cell Sorter Instruction Manual
8x Sheath Fluid, preservative free, 5 x 4 L, 1 case (catalog #145-1082)
Calibration Beads, 3 x 5 ml, 1 pack (catalog #145-1081) or
5 ml tubes, 12 x 75 mm, 1 pack
S3 collection adaptor set, 1 each
Bulk fluidics tray, 3 each
USB cord, 1 each
Ethernet cord, 1 each
Power cord, 1 each
USB drive with ProSort
Instrument and software manual
Instrument quick guide
2 mm hex driver, 1 each
S3 spanner wrench, 1 each
1 ml syringe, 1 each
Plastic box, 1 each
70 x 65 x 65 cm
27.5 x 25.5 x 25.5 in
116 x 65 x 65 cm
46 x 25.5 x 25.5 in
™ software
