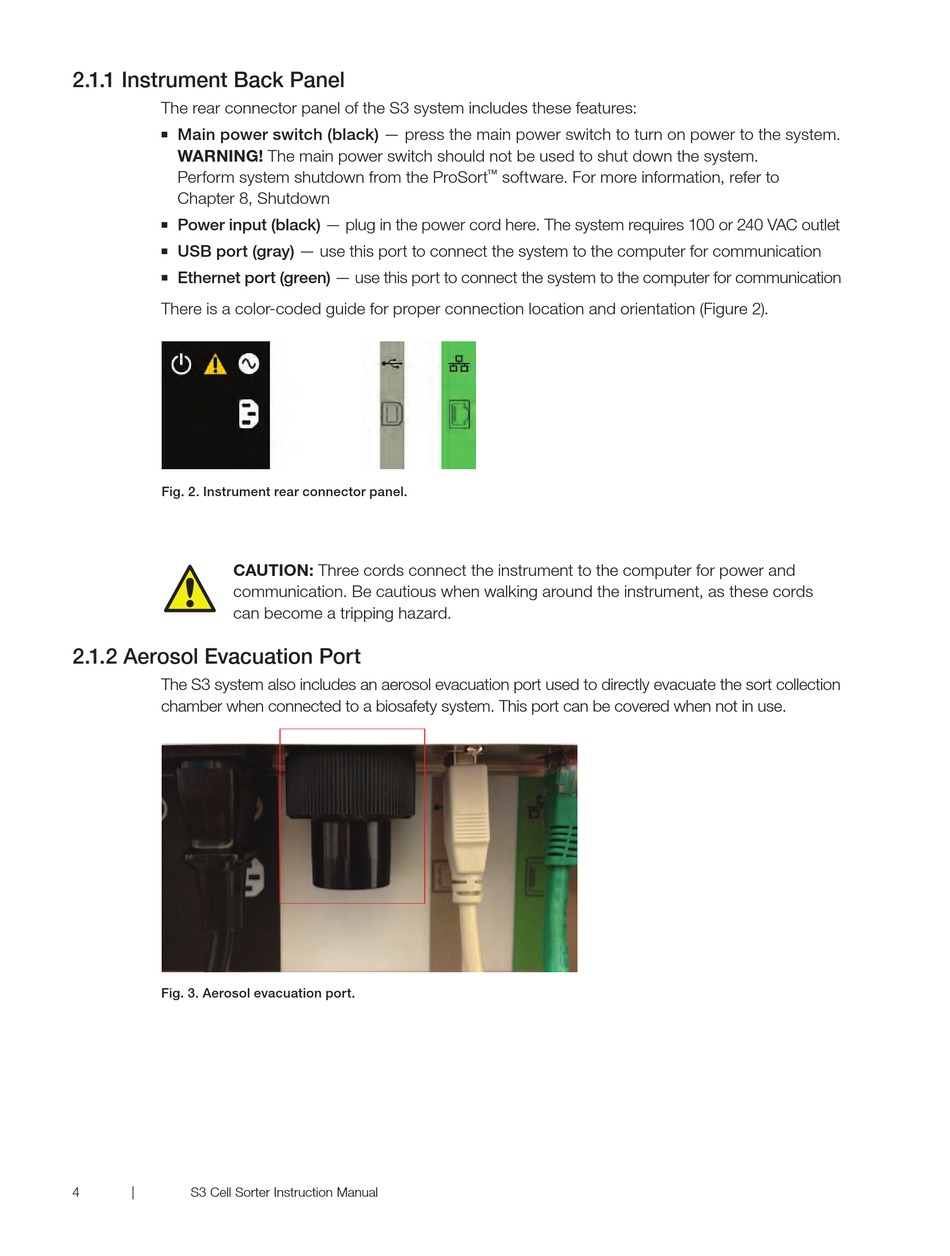

2.1.1 Instrument Back Panel
The rear connector panel of the S3 system includes these features:
Main power switch (black) — press the main power switch to turn on power to the system.
n
WARNING! The main power switch should not be used to shut down the system.
Perform system shutdown from the ProSort
Chapter 8, Shutdown
Power input (black) — plug in the power cord here. The system requires 100 or 240 VAC outlet
n
USB port (gray) — use this port to connect the system to the computer for communication
n
Ethernet port (green) — use this port to connect the system to the computer for communication
n
There is a color-coded guide for proper connection location and orientation (Figure 2).
Fig. 2. Instrument rear connector panel.
CAUTION: Three cords connect the instrument to the computer for power and
communication. Be cautious when walking around the instrument, as these cords
can become a tripping hazard.
2.1.2 Aerosol Evacuation Port
The S3 system also includes an aerosol evacuation port used to directly evacuate the sort collection
chamber when connected to a biosafety system. This port can be covered when not in use.
Fig. 3. Aerosol evacuation port.
