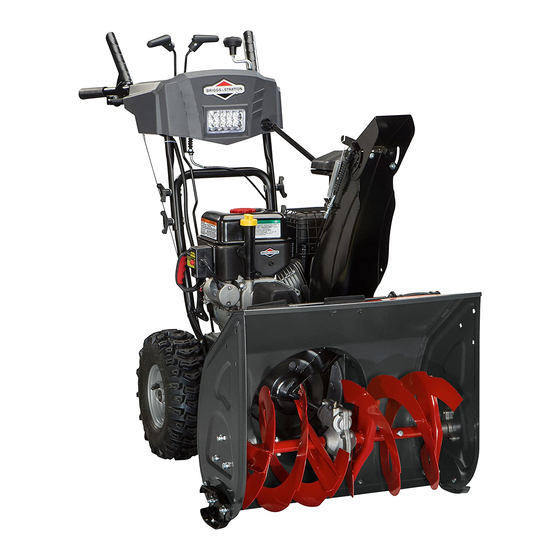

Briggs & Stratton 1696614-00 Operator's Manual

Briggs & Stratton 1696614-00 Operator's Manual

Dual stage snowthrower

Advertisement

Operator's Manual -
en
Dual Stage Snowthrower
Manual del operador -
es
Lanzanieve de dos etapas
Manuel d'utilisation -
fr
ÅË »ËÉ» Ñ Ä»¿½» Ñ º»ËΠƾ·É»É
Copyright © Briggs & Stratton Power Products Group, LLC.
80014338USCN
Milwaukee, WI, USA. All rights reserved.
Revision -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1696614-00 and is the answer not in the manual?

Questions and answers

DAVID N LOHSE
March 13, 2025

I have the 1696614 Snowblower and looking for the spring that goes on the gas lever to control the speed of the blower. Can you help me?

Mike
February 13, 2025

Part number for scraper blade

David
February 12, 2025

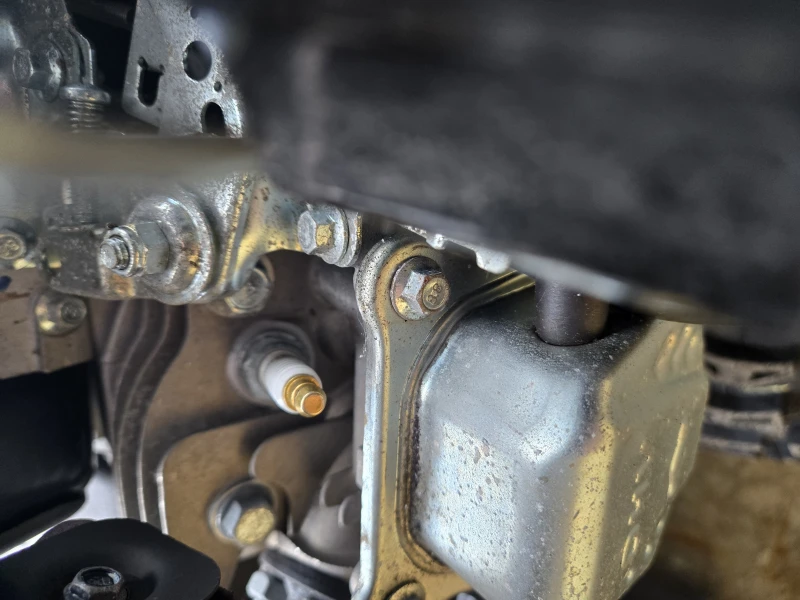

Need part number for spark plug for Briggs &Stratton S1024 Snow Blower

User image 67ace71fd38ca
Ziggy
February 10, 2025

Model 1696614-03 what's the auger belt size?

Summary of Contents for Briggs & Stratton 1696614-00

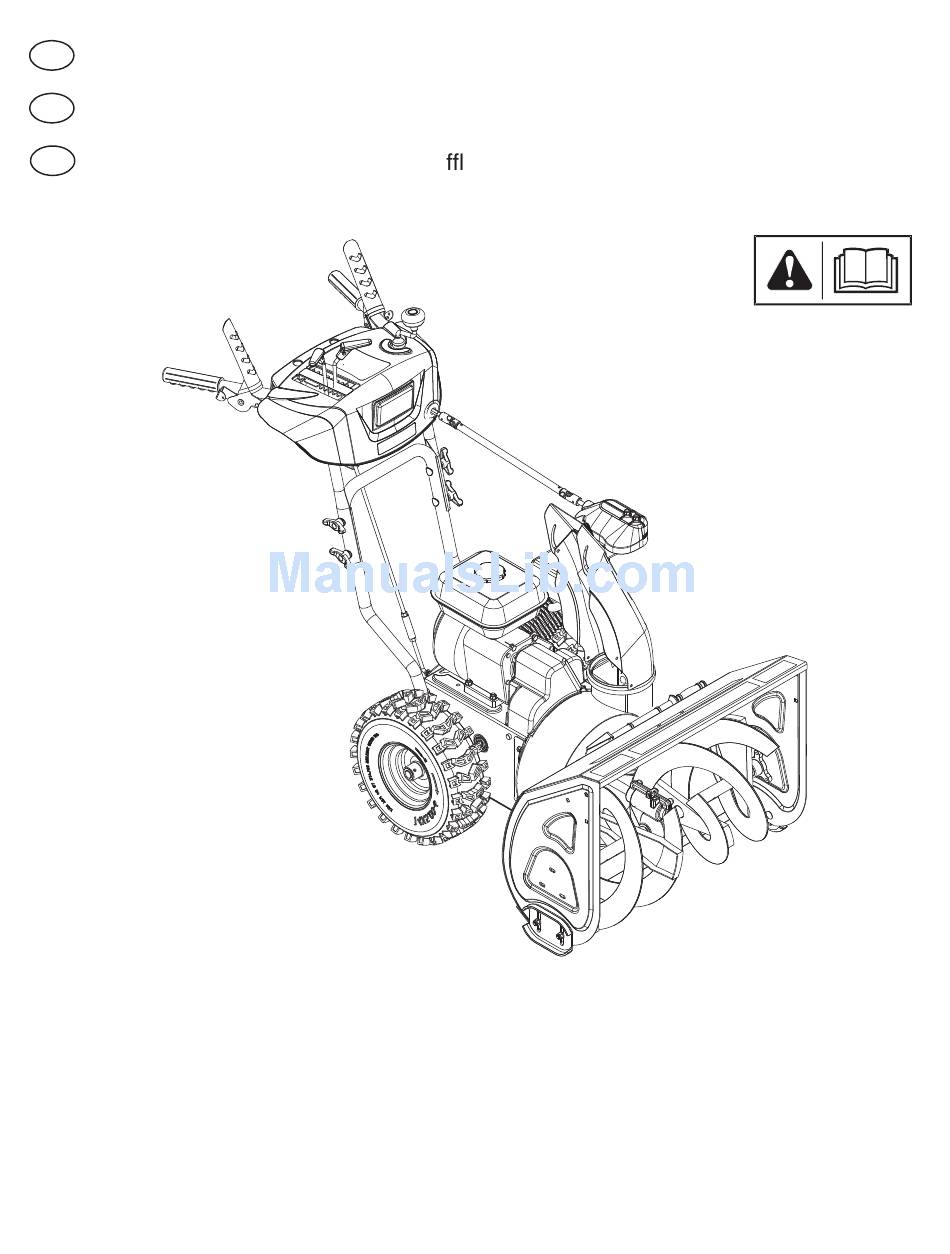

  • Page 1 Operator’s Manual - Dual Stage Snowthrower Manual del operador - Lanzanieve de dos etapas Manuel d'utilisation - ÅË »ËÉ» Ñ Ä»¿½» Ñ º»ËΠƾ·É»É Copyright © Briggs & Stratton Power Products Group, LLC. 80014338USCN Milwaukee, WI, USA. All rights reserved. Revision -...
  • Page 3: Products Covered By This Manual

    Products Covered by This Manual Hazard Symbol Chart Snowthrower Hazard Symbols The following products are covered by this manual: 1696614- 00, 1696616-00, 1696619-00, 1696620-00. Symbol Meaning Symbol Meaning Safety informa- Read and under- Manual Contents tion about haz- stand the opera- ards that can tor’s manual Operator Safety ..............2...
  • Page 4: Safety Messages

    Safety Messages DANGER WARNING The discharge chute contains a rotating impeller to throw snow. Never clear or unclog the discharge chute with your U.S.A. Models: Certain components in this prod- hands. Fingers can quickly become caught in the impeller. uct and its related accessories contain chemicals Always use a clean-out tool.
  • Page 5 WARNING WARNING Objects can be picked up by the auger and thrown from ˻ ·Äº ¿ÊÉ Ì·ÆÅÈÉ ·È» »ÎÊȻûÂÏ ¼Â·Ã÷¸Â» ·Äº »ÎÆÂÅ- the chute. Never discharge snow toward bystanders ɿ̻ ÂÍ·ÏÉ ¾·ÄºÂ» ¼Ë»Â Ϳʾ »ÎÊȻû ¹·È» or allow anyone in front of the snowthrower. Failure to Failure to observe these safety instructions can cause a observe these safety instructions will result in death or ¼¿È»...
  • Page 6 WARNING WARNING Safe operation of the snowthrower requires the proper care This snowthrower must be properly maintained to ensure and maintenance of the engine. safe operation and performance. Failure to observe the safety instructions in this manual could result in death or •...
  • Page 7: Safety Decals

    WARNING WARNING This snowthrower is only as safe as the operator. If it is Damaged or ungrounded power cords could cause electric misused, or not properly maintained, it can be dangerous. shock. Remember you are responsible for your safety and those Electric shock could cause severe burns or death.
  • Page 8: Safety System Tests

    Safety System Tests DANGER Amputation hazard This snowthrower is equipped with several mechanical safety systems designed to keep the operator safe while using the unit. Check the operation of these systems regu- larly using the safety system tests listed. If the unit fails to operate as described, DO NOT operate it.
  • Page 9: Features And Controls

    Features and Controls Auger Control Lever - Used to engage and disengage the Engine Features and Controls auger and impeller. Please refer to the engine operator’s manual for engine fea- Speed Select Lever - Allows tures and controls the operator to select forward and reverse speeds.
  • Page 10: Operation

    Operating the Snowthrower Clean-Out Tool - Used to remove snow and debris from the discharge chute and the auger housing. DANGER Amputation hazard Skid Shoes - Used to adjust the ground clearance of the The discharge chute contains a rotating impeller to auger housing.
  • Page 11: Stopping The Snowthrower

    Wheel Release - Lock Pins 1. Start the engine. Please refer to the engine operator’s manual for engine instructions. Wheels equipped with a traction lock pin (A, Figure 3) can be completely released by removing the pin and installing it in NOTE: Always set engine speed to FAST (full throttle).
  • Page 12: Skid Shoe Height Adjustment

    To safely clear a clogged discharge chute, follow these instructions: WARNING 1. Shut OFF the engine. Thrown objects hazard 2. Wait 10 seconds to be sure the impeller blades have Objects such as gravel, rocks, or other debris, if struck stopped rotating.
  • Page 13: Maintenance

    Maintenance Lubricate Discharge Chute, Deflector, and Wheel Axle Maintenance Schedule ˸ȿ¹·Ê» ʾ» º¿É¹¾·È½» ¹¾ËÊ» º»¼Â»¹ÊÅÈ ·Äº ;»»Â ·Î» ·Ê Before Each Use the locations shown in Figure 7. • Check engine oil level • Perform Safety System Tests Every 8 Hours or Daily •...
  • Page 14 Hex Shaft and Gear Lubrication NOTICE: Do not allow grease or oil to contact the rubber friction wheel or the disc drive plate. If grease or oil comes into contact with the friction wheel, replace it. Do not attempt to clean it. If grease or oil comes into contact with disc drive plate, clean it thoroughly with an alcohol based solvent.
  • Page 15: Speed Control Rod Adjustment

    Auger and Traction Cable Adjustment Speed Control Rod Adjustment If the speed control rod requires adjustment, see an autho- rized dealer. WARNING Amputation hazard Checking Tire Pressure Over-tightening the auger cable may cause the auger drive to engage without depressing the auger drive control. Follow the adjustment procedure to ensure the cable is not WARNING over-tightened.
  • Page 16 1. Turn the engine OFF, wait for all moving parts to stop, and remove the engine key. »ÃÅÌ» ʾ» »Î¿ÉʿĽ ɾ»·È ¸ÅÂÊ ¿½ËÈ» ·Äº ÂŹÁ- nut (C) from impeller shaft (B). 3. Align the bolt holes. Install the replacement shear bolt through the impeller shaft.
  • Page 17 Storage Fuel System Fuel can become stale when stored over 30 days. Stale fuel causes acid and gum deposits to form in the fuel system or WARNING on essential carburetor parts. To keep fuel fresh, use Briggs & Stratton® Advanced Formula Fuel Treatment & Stabi- Fire and explosion hazard lizer, available wherever Briggs &...
  • Page 18: Troubleshooting

    Troubleshooting Troubleshooting the Snowthrower Problem Look for Remedy Auger does not stop within 5 sec- Auger control cable out of adjustment. Adjust auger control cable. Refer to onds after auger control lever is Maintenance section. released. Discharge chute or deflector does Discharge chute or deflector out of Adjust and/or lubricate control linkage.
  • Page 19: Specifications

    Problem Look for Remedy Unit does not discharge snow (con- Discharge chute clogged. Stop engine immediately. Always use tinued). the clean-out tool to clear a clogged discharge chute, not your hands. Refer to Discharge Chute Warning in the Operator Safety section. Foreign object lodged in auger.
