TAM2: Configuration of Altronix Power Supply and/or Sub-Assembly Boards and
1. Fasten standoffs (provided) to pems that match the hole pattern for Altronix Power Supply/Chargers or Altronix Sub-Assembly boards
(Fig. 2, 2a, pg. 2). Fasten metal standoffs in the correct locations to provide proper grounding, see below (Fig. 2, pg. 2).
2. Mount boards to standoffs utilizing 5/16" pan head screws (provided) (Fig. 2, pg. 2).
3. Align the AMAG boards on the backplane to match the boards' mounting holes with pems provided.
4. Fasten standoffs (provided) to pems that match the hole pattern for AMAG M2150 2DC and 2150 2DBC boards.
5. Mount AMAG boards to standoffs utilizing 5/16" pan head screws (provided) (Fig. 2, pg. 2).
Note: AMAG M2150 2DC boards have specific markings.
Please orient boards in the appropriate position according to the Fig. 2 below.
6. Fasten backplane to Trove2 enclosure utilizing lock nuts (provided).

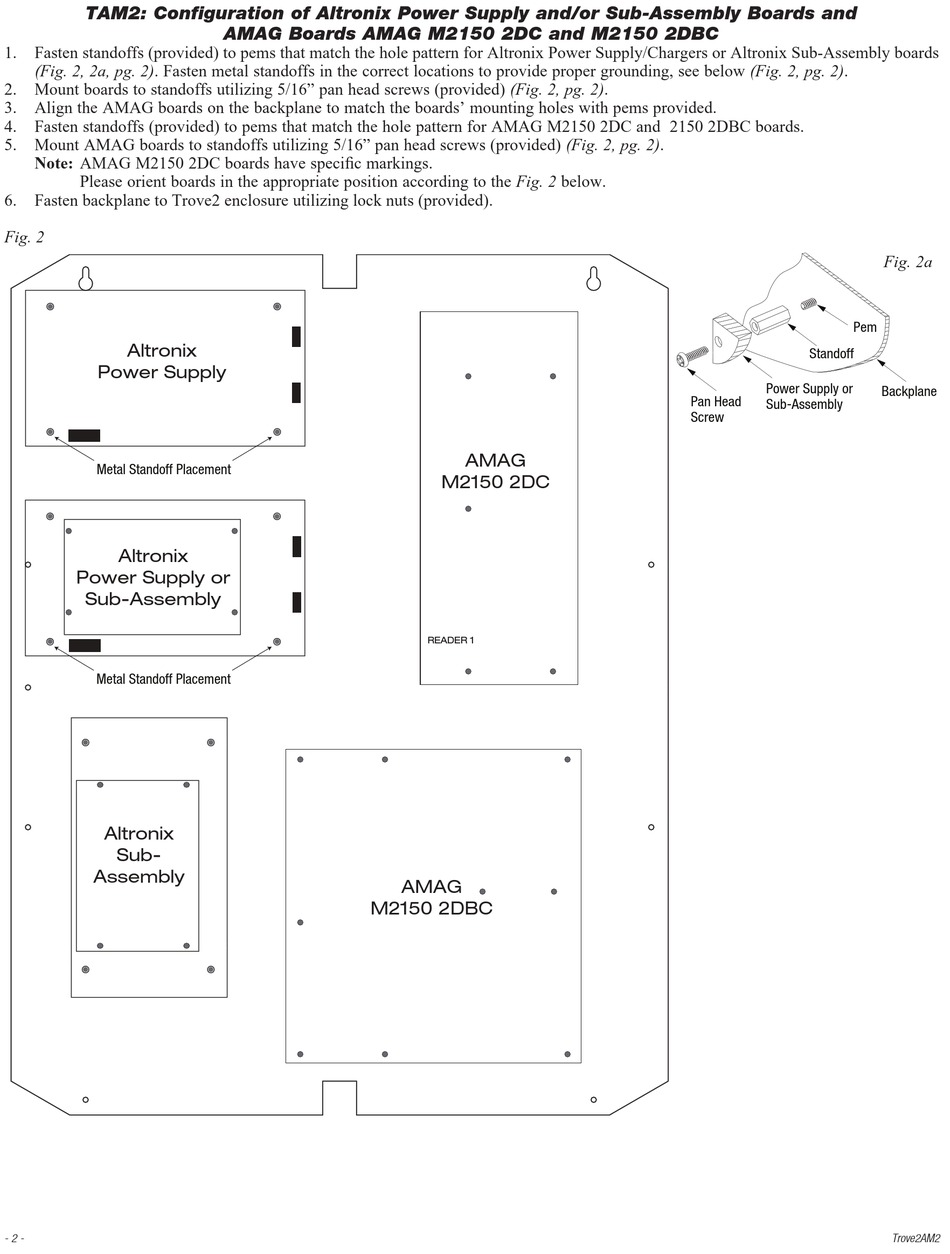

Fig. 2
Altronix
Power Supply
Metal Standoff Placement
Altronix
Power Supply or
Sub-Assembly
Metal Standoff Placement
Altronix
Sub-
Assembly
