11.14 WIRED REMOTE CONTROL CZ-RT1

•
Before installing the wired remote control, be sure to thoroughly read the "Precautions in terms of safety" in the
installation instructions provided with the indoor unit.
•
After installing the wired remote control, carry out a test operation to check that the remote control functions
properly, and also explain the operation and cleaning procedures to the customer in accordance with the details
in the instruction manual.
Furthermore, ask the customer to keep this installation instructions and the operation instruction in a safe place
for later reference.

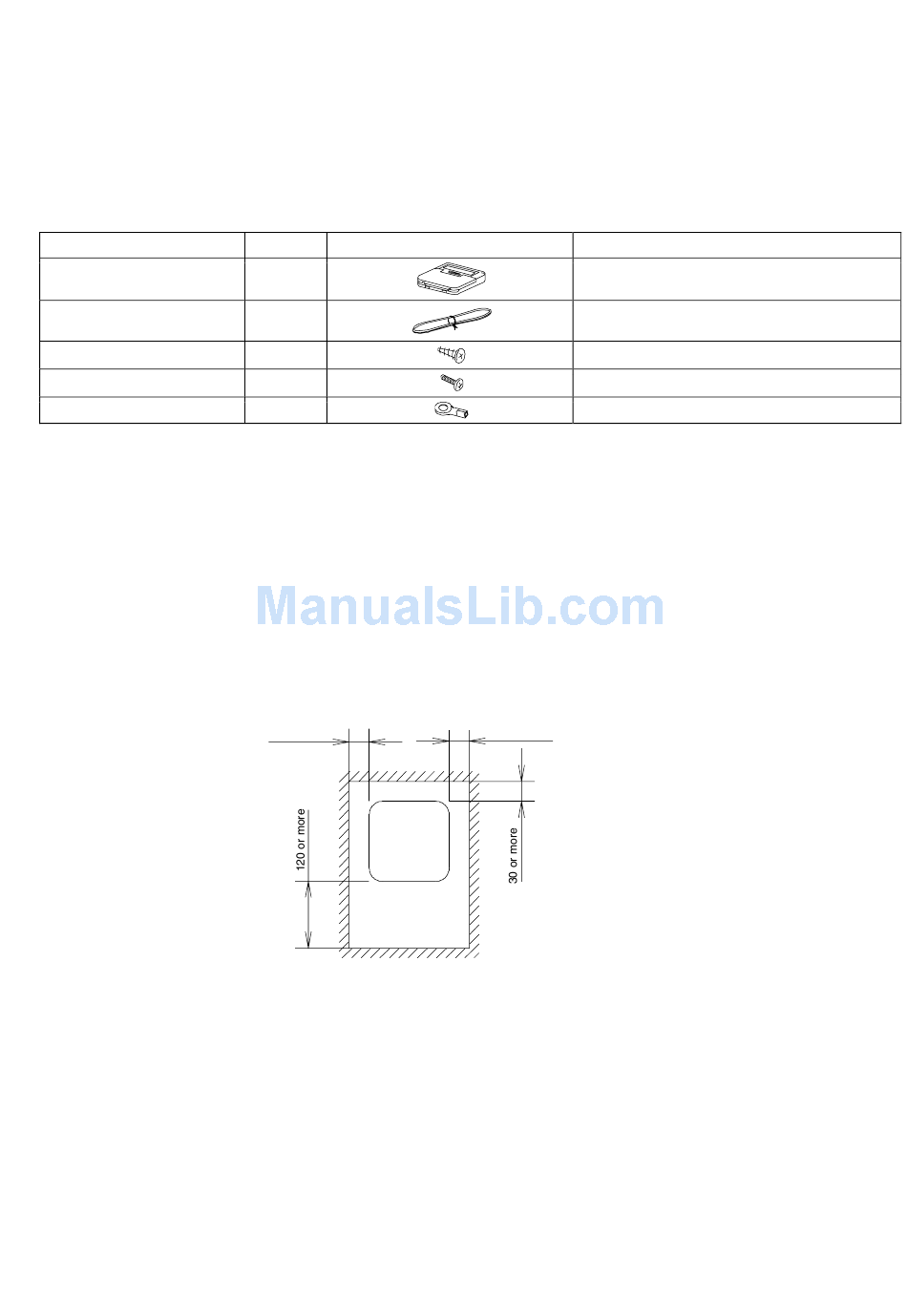

11.14.1 ACCESSORIES SUPPLIED WITH THE WIRED REMOTE CONTROL
Name
Remote control
Remote control cable
4 mm wood screw
M4 screw
Round terminal
11.14.2 NOTES REGARDING WIRED REMOTE CONTROL SET-UP LOCATION
•
Select a place where the remote control can be operated easily (after obtaining approval from the customer).
•
Install in a place which is away from direct sunlight and as free from humidity as possible.
•
Install in a place which is as flat as possible to avoid the remote control from warping (If installed to a wall with an
uneven surface, damage to the LCD case or operation problems may result.)
•
Install in a place where the LCD can be seen easily. If the remote control is installed somewhere which is too
high or too low, it may be difficult to read the LCD. (Standard height from the floor is 1.2 to 1.5 meters)
•
Avoid installing the remote control cable near refrigerant pipes or drain pipes.
•
Install the remote control cable at least 5 cm away from other electric wires (including stereo and television
cables, etc.) to avoid mis-operation (electromagnetic noise).
•
If passing the remote control cable through a wall, be sure to install a water trap above the cable.
•
Allow sufficient space around the remote control as shown in the illustration below. Secure the lower case of the
remote control to the wall or to an outlet box.
Q'ty Diagram
1
1
3
3
2
30 or more
Remote
controller
Connecting between the air conditioner unit and the
remote control (Length 10 m)
Installing the remote control to the wall (1 spare)
Installing the remote control to an outlet box
Connecting to the indoor unit terminal block
30 or more
161
Remark
(Unit: mm)
