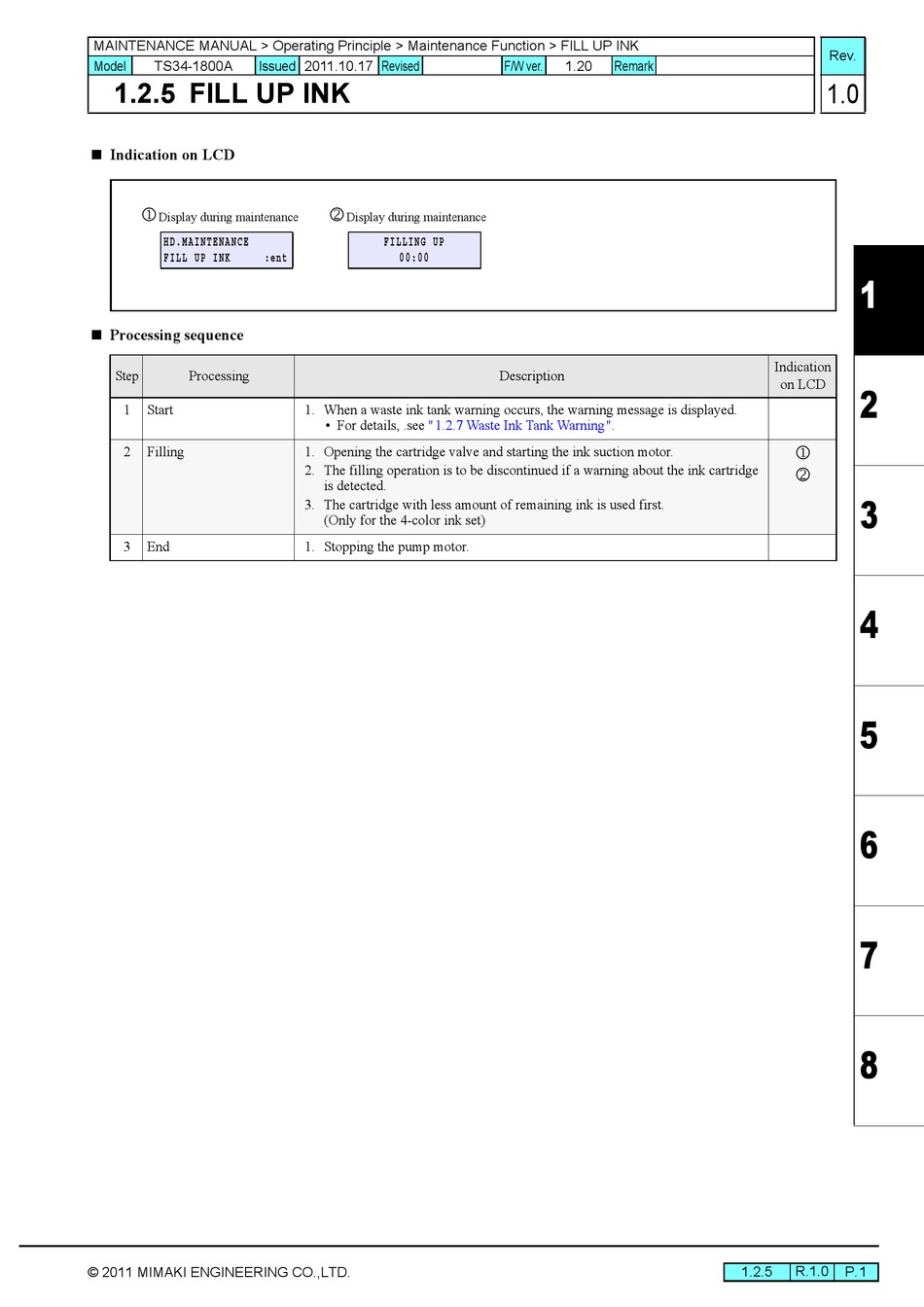

1.2.5 FILL UP INK

 Indication on LCD

Display during maintenance
HD.MAINTENANCE
FILL UP INK
 Processing sequence
Step Processing
1 Start
2 Filling
3 End
