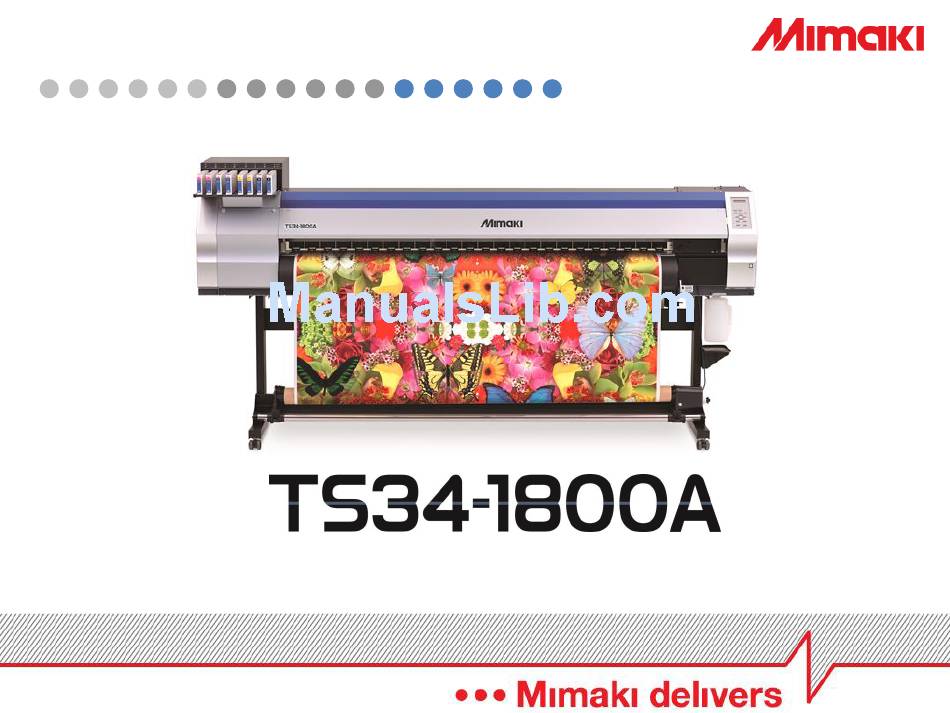

  • Page 1 Product Guide The information in this document is subject to change without notice. 13-10-2014 Mimaki Europe B.V. V2.91EU Textile and Apparel Products...
  • Page 2 Europe B.V. • Contents and technical explanations in this presentation are based on the test results achieved at Mimaki at the time of testing and are not a guarantee for performance. Substrates should be tested beforehand. • In addition, the contents in this presentation do not lead to any legal obligations from Mimaki and Mimaki does not take any responsibility.
  • Page 3 Full color, for Sport TX-1600S Dye-sublimation IJP for apparel and Soft signage Sports apparel Inkjet printer for textile TS5-1600AMF Dye-sublimation IJP for sports apparel Based on the technology we have cultivated, we created the TS34-1800A. Mimaki Europe B.V. Textile and Apparel Products...
  • Page 4 Improves the up time in the production process • Smaller footprint compared with other high-speed printers • Sb53 ink (2L ink pack) • Generates less smoke, still high density and high color brightness Mimaki Europe B.V. Textile and Apparel Products...
  • Page 5 • The ability of Mimaki TS34 to print up to 1440 dpi and to do variable printing in 3 different dot sizes allows users to print various images with high quality, from highlight to shadow, even in 4 color mode.
  • Page 6 High-speed and high image quality printing with a staggered array of 2 print heads LmLc 1 inch 25.4ｍｍ 2 inches 2 inches 50.8ｍｍ 50.8ｍｍ 1 inch 1 inch 25.4ｍｍ 25.4ｍｍ LmLc TS34 Older generations Mimaki Europe B.V. Textile and Apparel Products...
  • Page 7 Double Cartridge Automatic Change Function • Two-cartridge ink supply enables cartridge replacement without stopping the production Green ON: Ink in use Light OUT: Unused After ink ends, Red light ON Changes to new cartridge Mimaki Europe B.V. Textile and Apparel Products...

  • Page 8: Standard Features

    Auto take-up device for maintaining the same tension • Take-up torque adjustment ability, ensures continuous media take-up up to 25kg / 180mm of the outer diameter • Ink mist prevention fans • To ensure stable continuous print operations Mimaki Europe B.V. Textile and Apparel Products...
  • Page 9 • MBIS2 (Mimaki Bulk Ink System) Mimaki's optional MBIS2 uses 2 liter ink containers in combination with Mimaki's UISS (Uninterrupted Ink Supply System) to reduce your environmental footprint even further.
  • Page 10 20,0㎡/h 30,0㎡/h 40,0㎡/h 50,0㎡/h Draft High-speed Standard High-quality TS34-1800A, 4 color 540x360dpi,2pass Bi Hi 540x720dpi,4pass Bi Hi 540x1080dpi,6pass Bi Hi 720x1440dpi,8pass Bi Hi Bi: Bidirectional printing Hi: Print heads move at high speed Mimaki Europe B.V. Textile and Apparel Products...
  • Page 11 Print speed: 45,6m²/h Drop Drop Drop Conventional 21pl 14pl Ink volume Ink volume increased 70% Large Middle Small Drop Drop Drop 35pl 21pl Ink volume 540x1080dpi/ 6Pass/ Bi/ Hi 540x360dpi/ 2Pass/ Bi/ Hi Mimaki Europe B.V. Textile and Apparel Products...
  • Page 12 Ink consumption will be increased, of higher ink volume Density at different resolutions 1,53 1,48 1,49 1,47 1,34 1,31 1,27 1,27 1,05 1,03 1,02 C 100% M 100% Y 100% DK 100% 540x360dpi 540x720dpi 540x1080dpi Mimaki Europe B.V. Textile and Apparel Products...
  • Page 13 MAPS • MAPS, Mimaki Advanced Pass System • MAPS creates stable printing • MAPS eliminates banding by ejecting ink sparsely at the boundary of a pass Feed MAPS OFF MAPS ON Direction • Setting up MAPS! • Scan MAPS setting values: -50 to +50 •...

  • Page 14: System Configuration

    Combo pack, including: HDD: 500GB USB2.0: 4 ports or more Optical disk drive: DVD-ROM Windows7 Professional 64bit Monitor: 1366x768 Drying fan 180 Works also with: MBIS2 (Mimaki Bulk Ink System) Options Sb53 ink Mimaki Europe B.V. Textile and Apparel Products...
  • Page 15 Sb53-M-44-1 Magenta Sb53-Y-44-1 Yellow Sb53-K-2L-1 Black 2L Pack Sb53-DK-2L-1 Deep Black When MBIS2 is used, Sb53-BL-2L-1 Blue 2L ink pack should be used Sb53-M-2L-1 Magenta Works with the MBIS2 option Sb53-Y-2L-1 Yellow Mimaki Europe B.V. Textile and Apparel Products...
  • Page 16 Print mode Ink volume (€ 0,147/1cc) (€ 0,070/1cc) 926mm Sb53 Ink € 0,642 € 0,304 540X360dpi 4.35cc 4 color Transferpaper-Tro 540X1080dpi Sb53 Ink € 0,589 € 0,279 3.99cc JC2k-Tropical V3 4 color (Polyester) Mimaki Europe B.V. Textile and Apparel Products...
  • Page 17 • Smoke quantity • Sb53 generates less smoke during sublimation transfer process. • Sb53 DK ink generates much smoke than other inks. Amount of Smoke Sb53 Sb53 generation Bl/M/Y/DK Bl/M/Y/K Sb53 ink K＜DK Mimaki Europe B.V. Textile and Apparel Products...
  • Page 18 Color change or fading Water Cotton JIS L 0846 Color staining Silk Color change or fading 41369 Sublimation JIS L 0854 Cotton Color staining Silk JIS L 0849 Mosit ー ISO-105 X12 ー Moist Mimaki Europe B.V. Textile and Apparel Products...
  • Page 19 Applications • The MIMAKI TS34-1800A expands business opportunities such as soft signage, sports apparel and gear using eco-friendly aqueous ink. Banners Flags Snowboards Sports uniform Mimaki Europe B.V. Textile and Apparel Products...
  • Page 20 Product position, 4 color model • Position of TS34-1800A in the market • Reliable high quality and density printing at high speed • Usable draft mode printing at a higher speed Mimaki Europe B.V. Textile and Apparel Products...
  • Page 21 800mm 950mm Height 1,430mm 1205mm 1,424mm 1,295mm 1262mm Weight 210kg 158kg 160kg 177kg 201kg Switchable between sublimation transfer ink Note Drying heater is optional. and direct transfer ink. Ink lines must be washed Mimaki Europe B.V. Textile and Apparel Products...
  • Page 22 TS34-1800A Specifications Item Specifications On-demand piezo print head Print head 2 print heads and each has 8 nozzle lines, Staggered array Maximum print width 1,900mm Print resolution 360, 540, 720, 1440dpi Head height 2mm/3mm ,3mm/4mm, 4mm/5mm (Setup during the installation）...

  • Page 23: Thank You

    Thank you Mimaki Europe B.V. Textile and Apparel Products...

  • Page 24: Revision History

    Revision history Version Date Details of revision 4/8/2013 Complete new design and content Johan Spies PM Mimaki Europe B.V. Do not use this page Mimaki Europe B.V. Textile and Apparel Products...
